Rondò

Wood Combustion

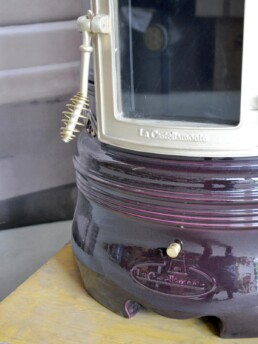

The Rondò, for its round shape and for the romantic frieze, is favorite by a public who loves soft lines and graceful looks. It can also be supplied with smooth surface and in this case it acquires a stiffer and seductive line. It is produced in five sizes and has a very large glass door. It is a stove with high efficiency (84%).

To know the certifications of this stove click HERE ?

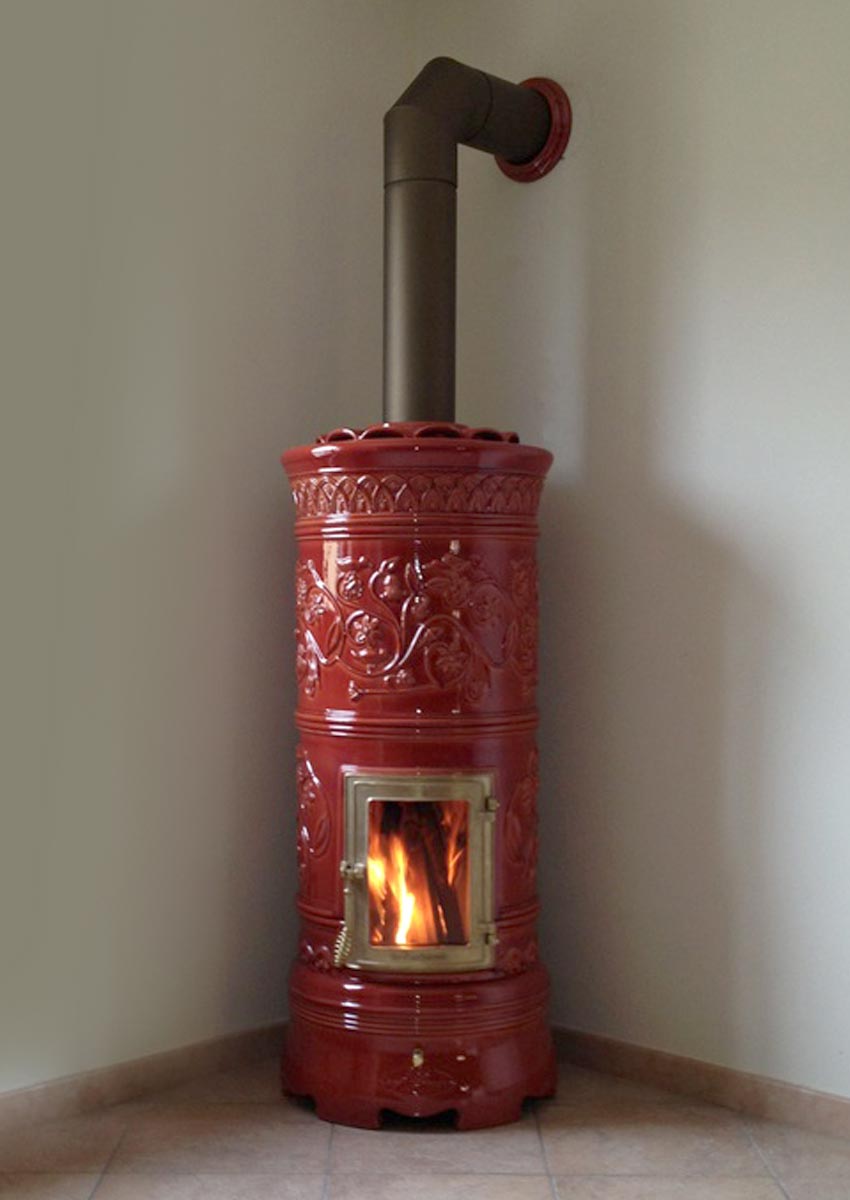

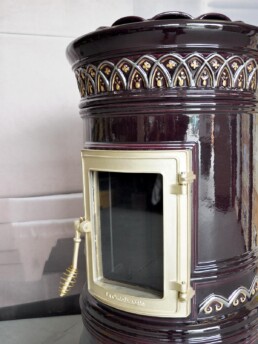

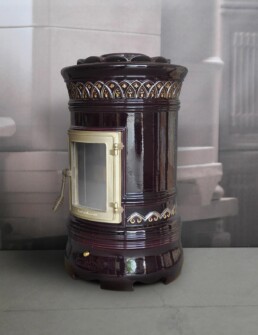

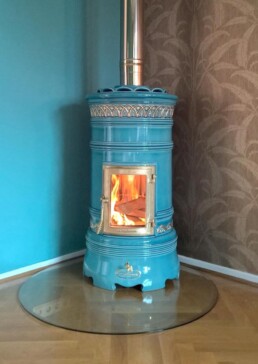

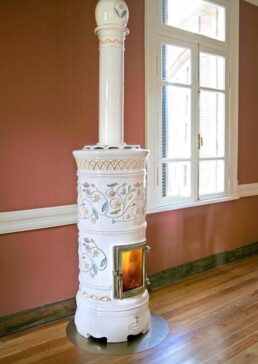

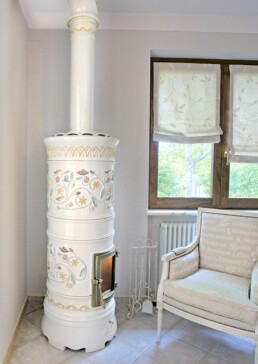

Photogallery

Sizes

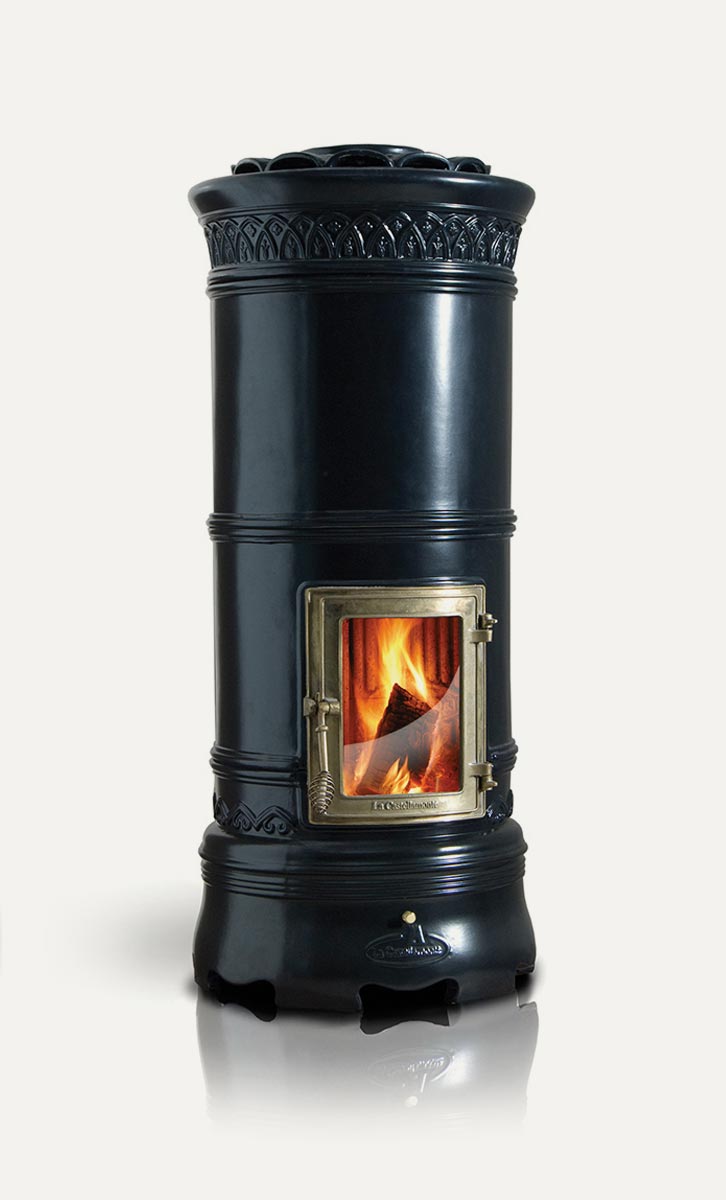

Rondò liscia

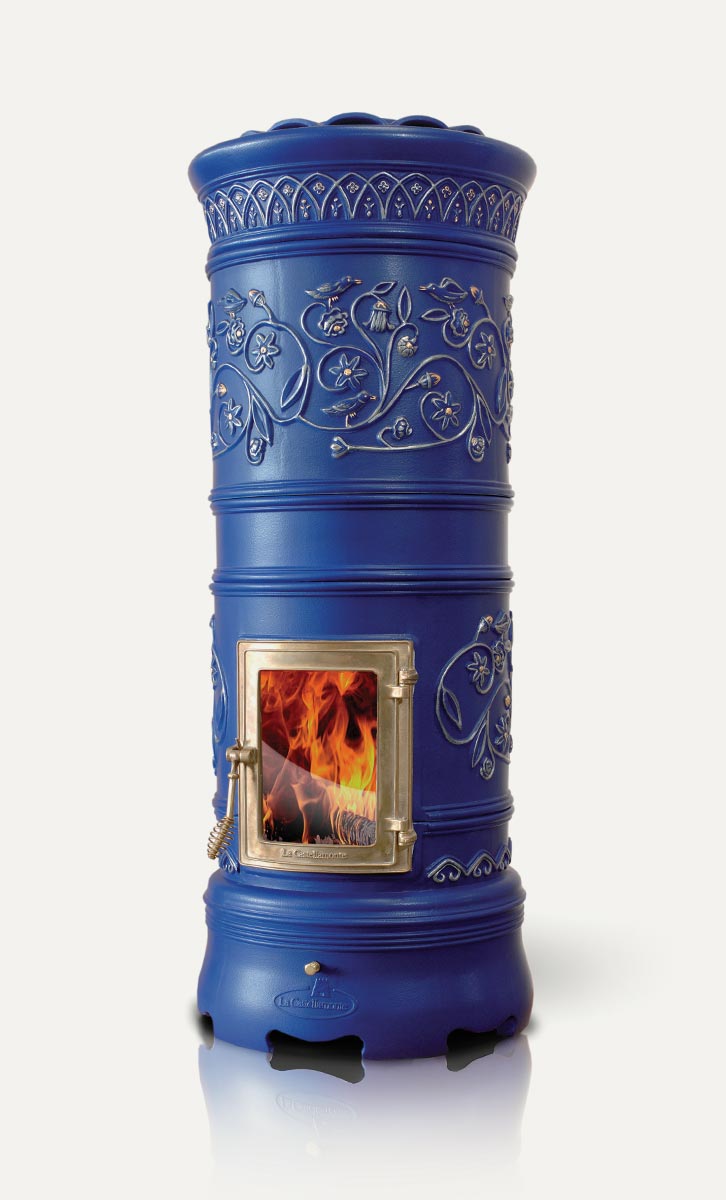

Rondò con fregio su coperchio e base

Rondò con fregio su intera superficie

Technical Data

Sizes
Nominal heat output *kW66,57,57,88
Min. and max heat outputkW4 - 74 - 84 - 94 - 104 - 10
Heatable volume (Isol. Legge 10/91) **m3100 - 200 100 - 230 100 - 260100 - 290100 - 290
Efficiency%838480,58282,5
Carbon monoxide emissions % CO 13% O2%0,090,090,070,070,06
Dust 13% O2mg/Nm31111665
Wood consumptionKg/h1,71,92,22,22,3
Smoke temperature°C194201213208201
Smoke exit diametercm1515151515
DraftPa1212121212
Total weightKg260297329347378
Dimensions ( W x D x H )cm60 x 10260 x 11660 x 14260 x 15660 x 170

* Complies with EN 13240 | DEUTSCHLAND BimSchV 2

** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.

Door Measurements:
22 x 31 cm

Fireplace Measurements:
32 x 50 cm

Wood length:
30-35 cm

For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.
