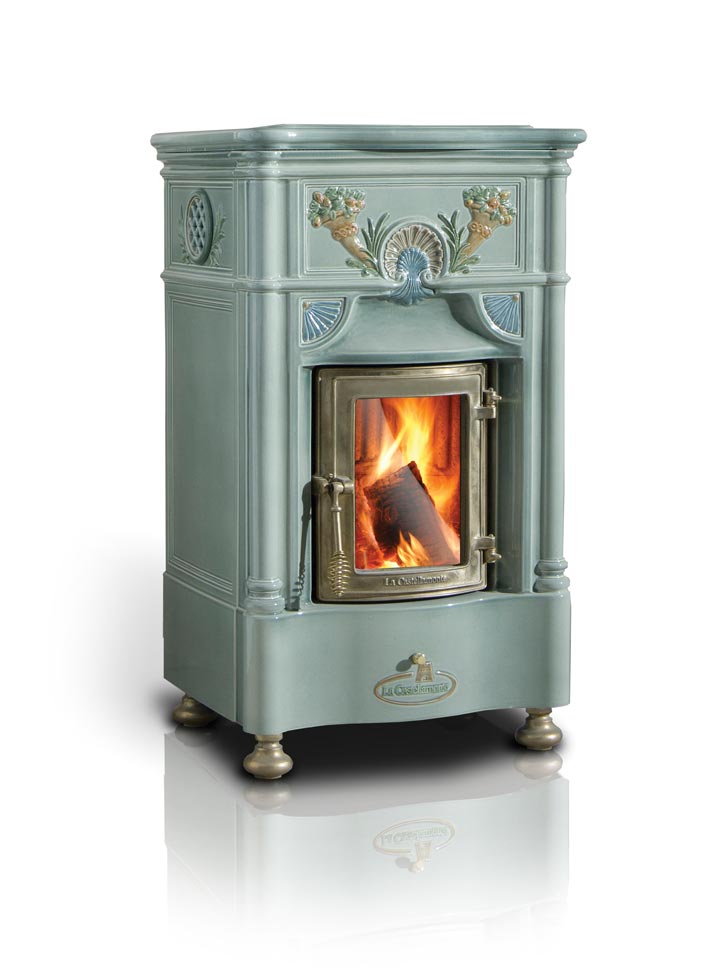

The Venexiana resembles the style of the old Franklin fireplace, present since the nineteenth century in the Castellamonte tradition.
The Liberty-style friezes, made from old molds, make it suitable for any environment, even a modern one.
The forehead reproduces the shape of an ancient little theatre, almost framing the dance of fire and its flames.
Photogallery
Technical Data
| Size | 1° | |
|---|---|---|
| Nominal heat output * | kW | 7 |
| Min. and max heat output | kW | 3 - 8 |
| Heatable volume (Isol. Legge 10/91) ** | m3 | 85 - 230 |
| Efficiency | % | 85 |
| Carbon monoxide emissions % CO 13% O2 | % | 0,11 |
| Wood consumption | Kg/h | 2 |
| Smoke temperature | °C | 235 |
| Smoke exit diameter | cm | 15 |
| Draft | Pa | 12 |
| Total weight | Kg | 210 |
| Dimensions ( W x D x H ) | cm | 59 x 51 x 107 |
* Complies with EN 13240 | DEUTSCHLAND BimSchV 2
** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.
Door Measurements
32 x 25 cm
Fireplace Measurements
36 x 29 x 33 cm
Wood length:
25 – 27 cm
For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.
