Ottagona

Wood Combustion

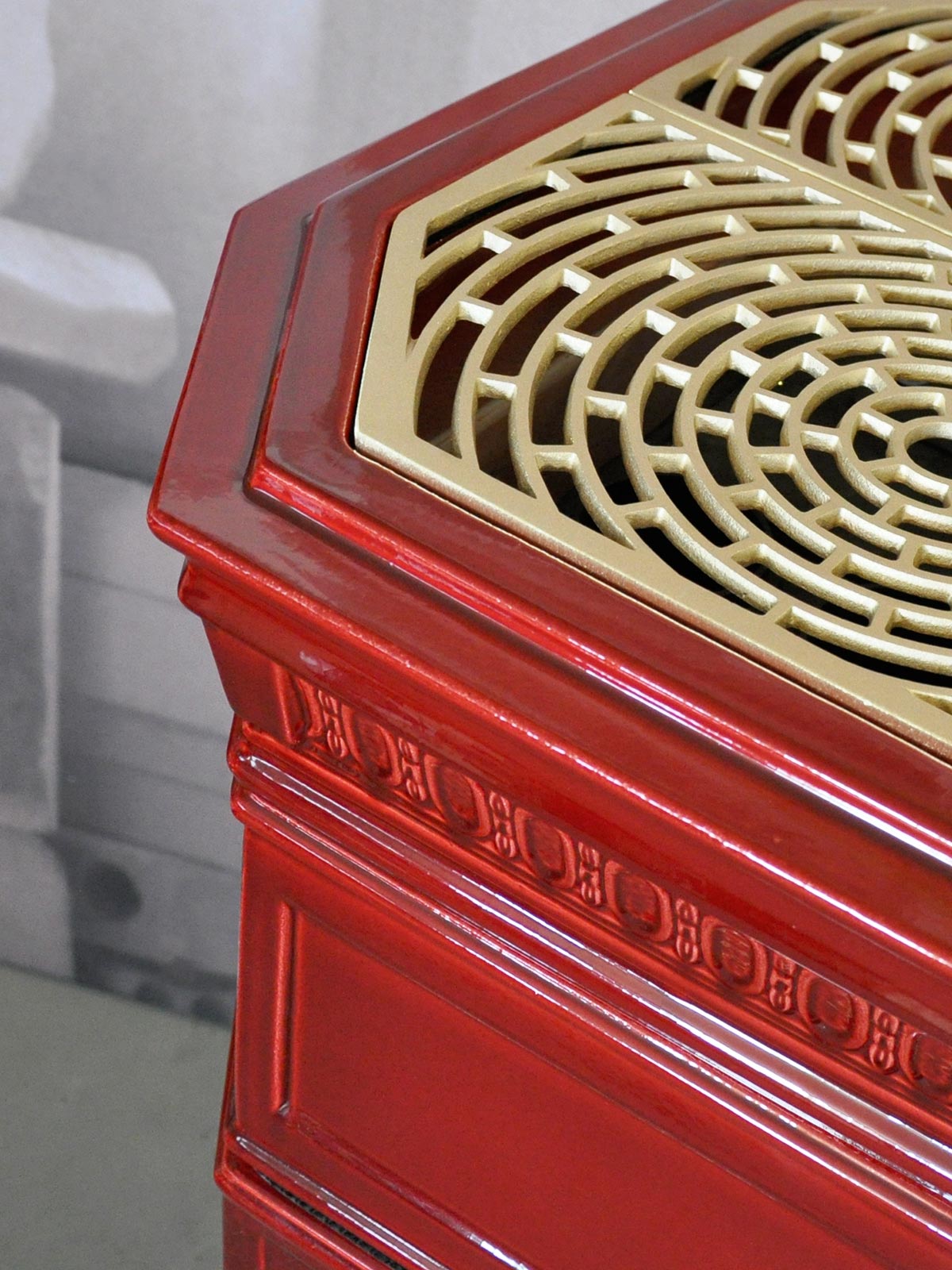

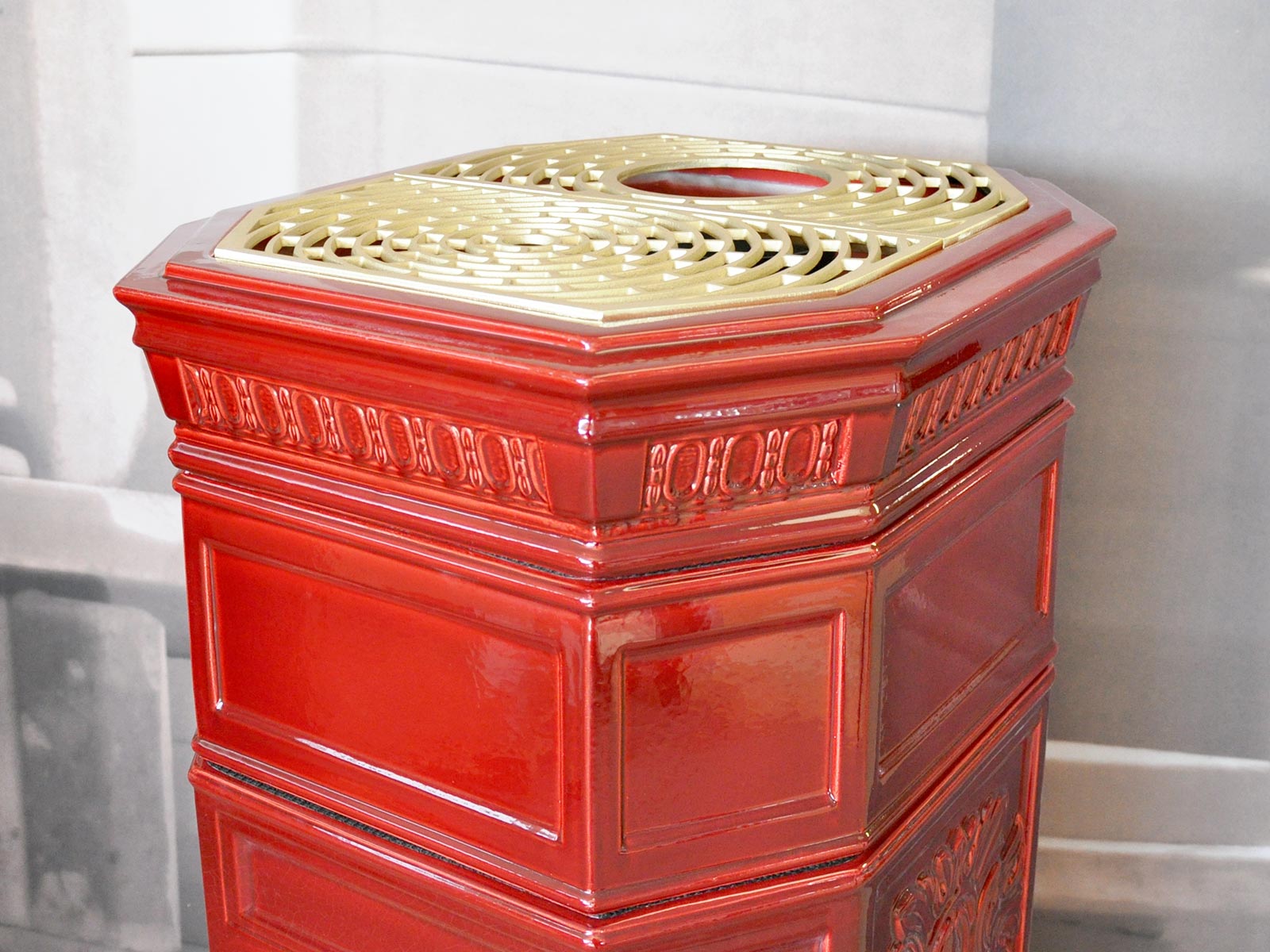

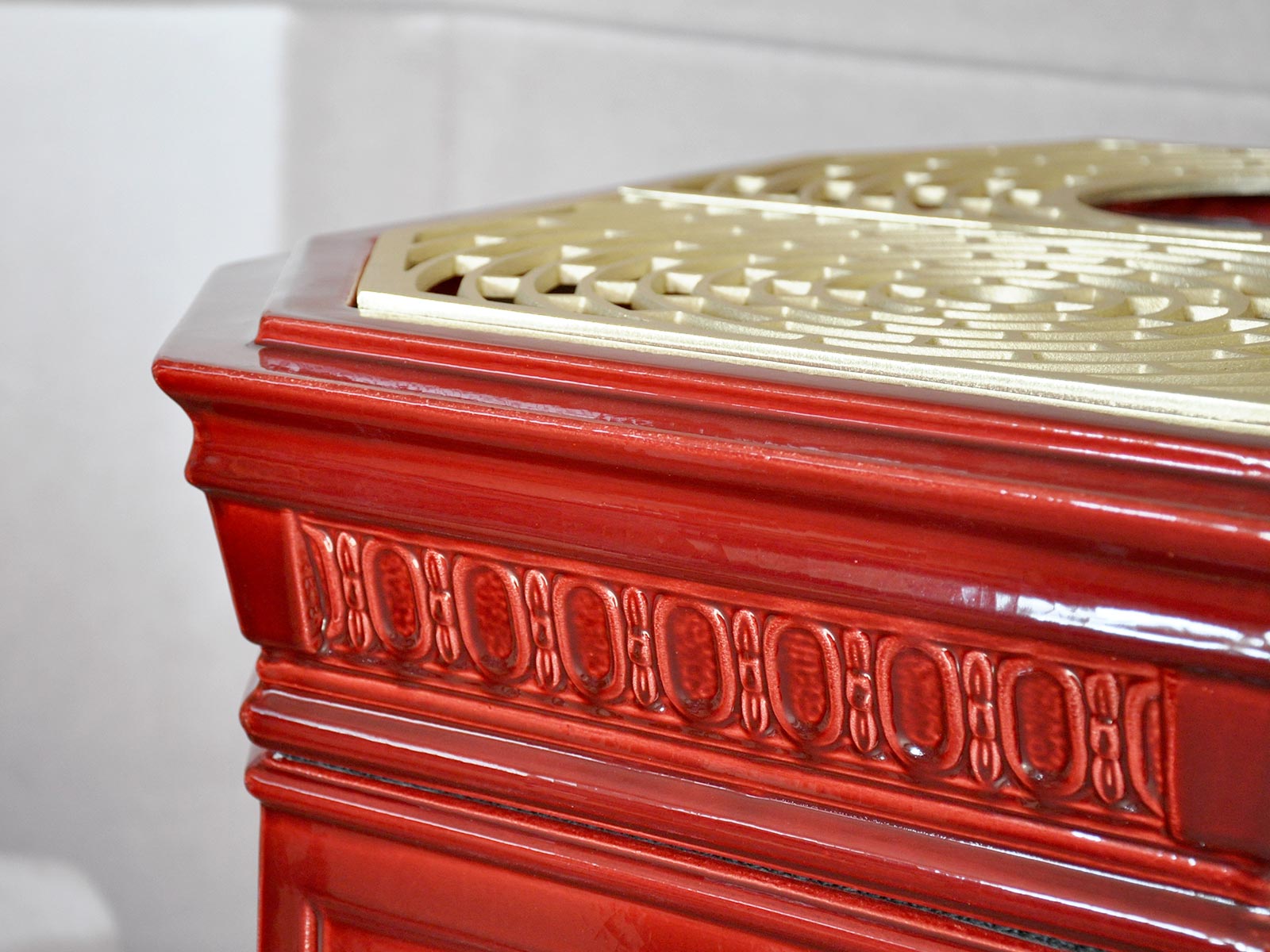

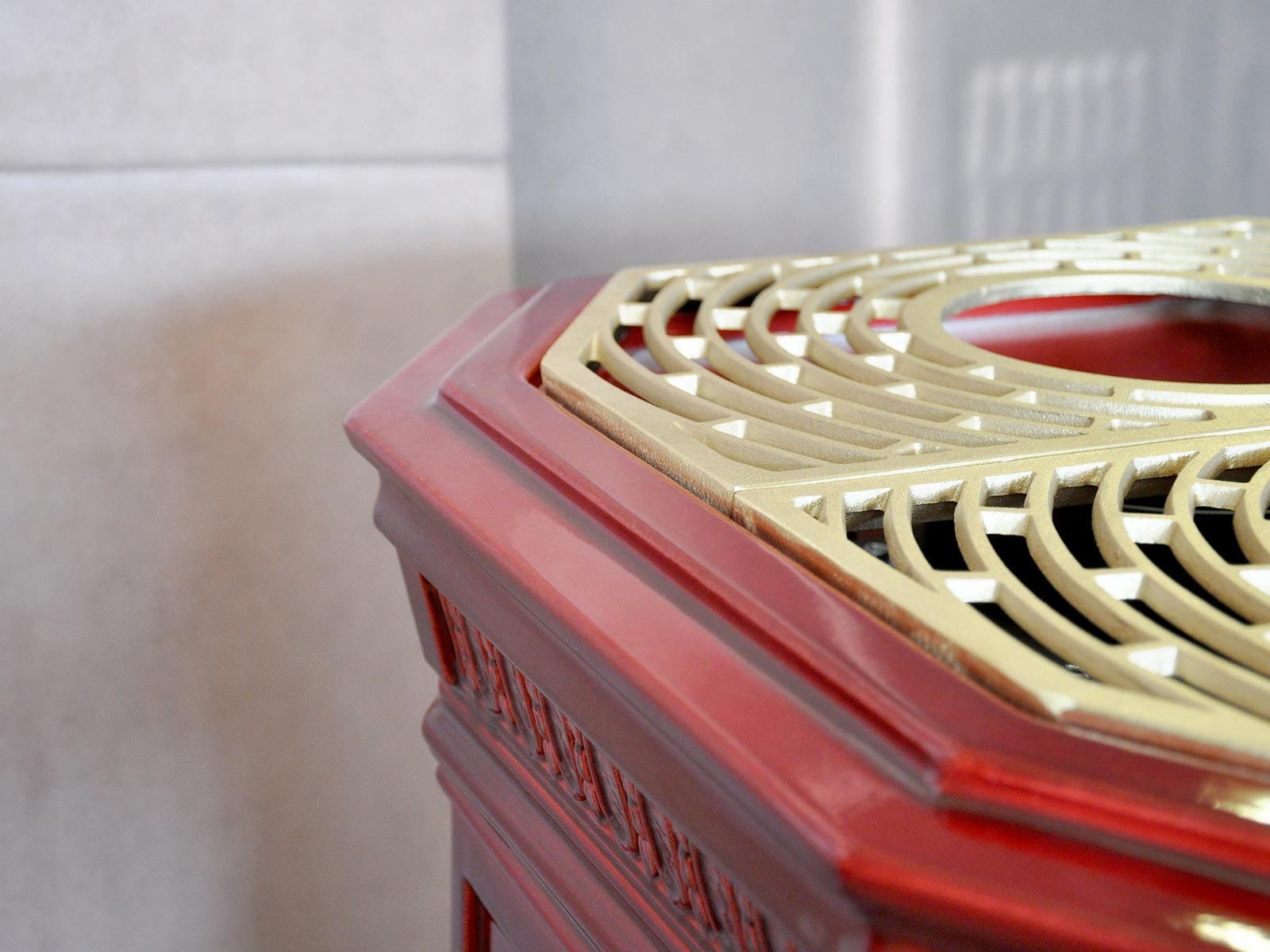

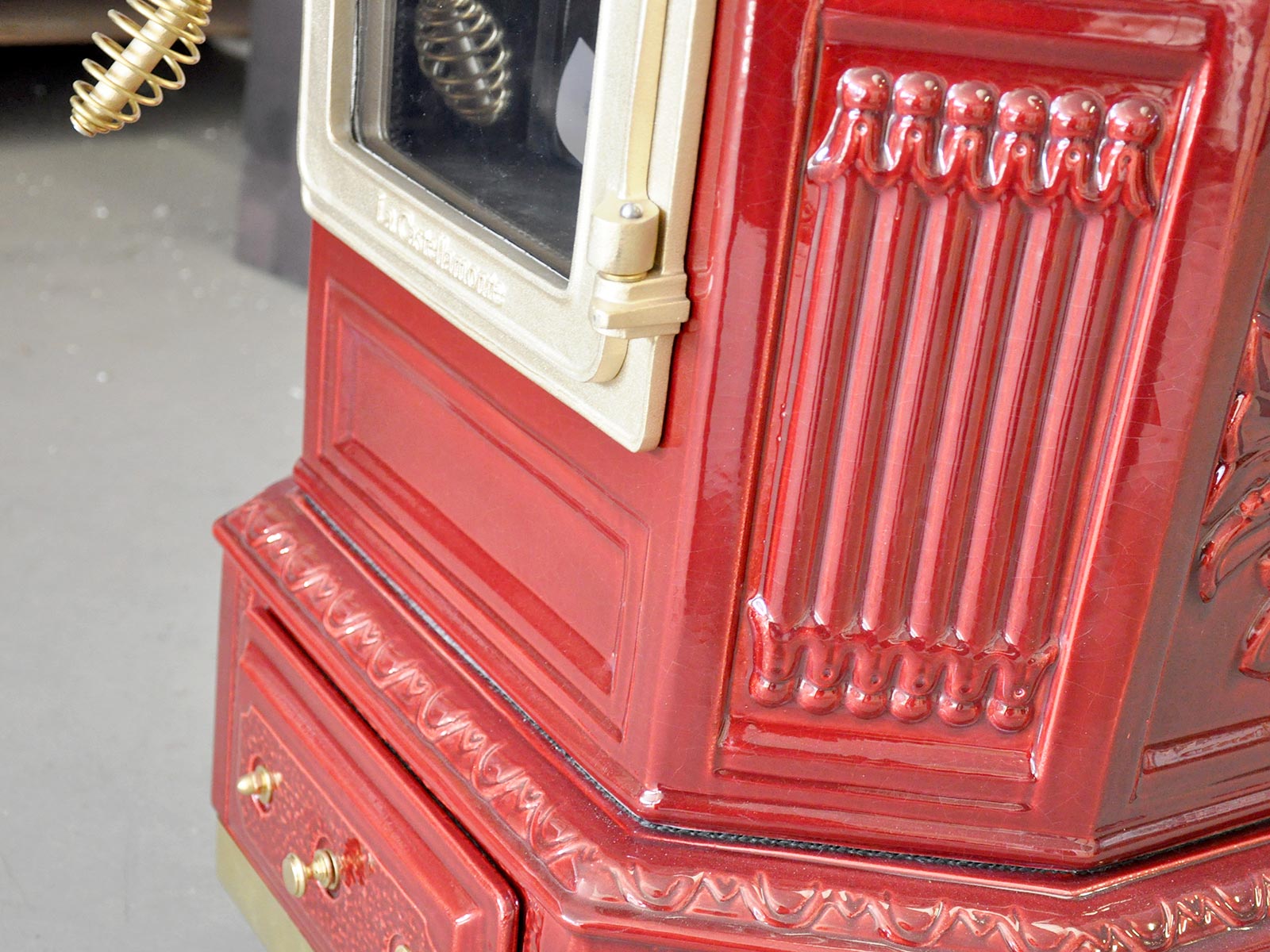

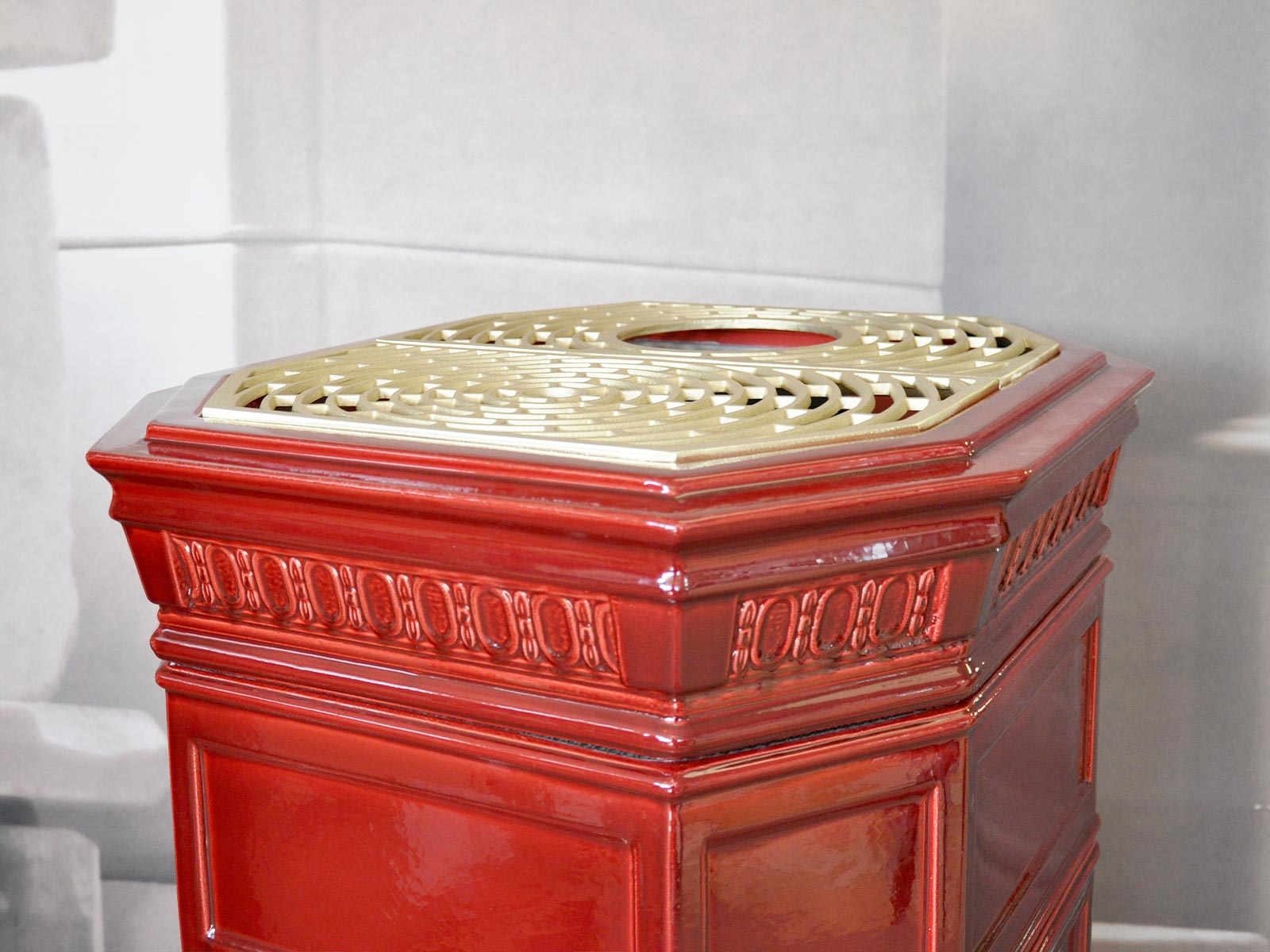

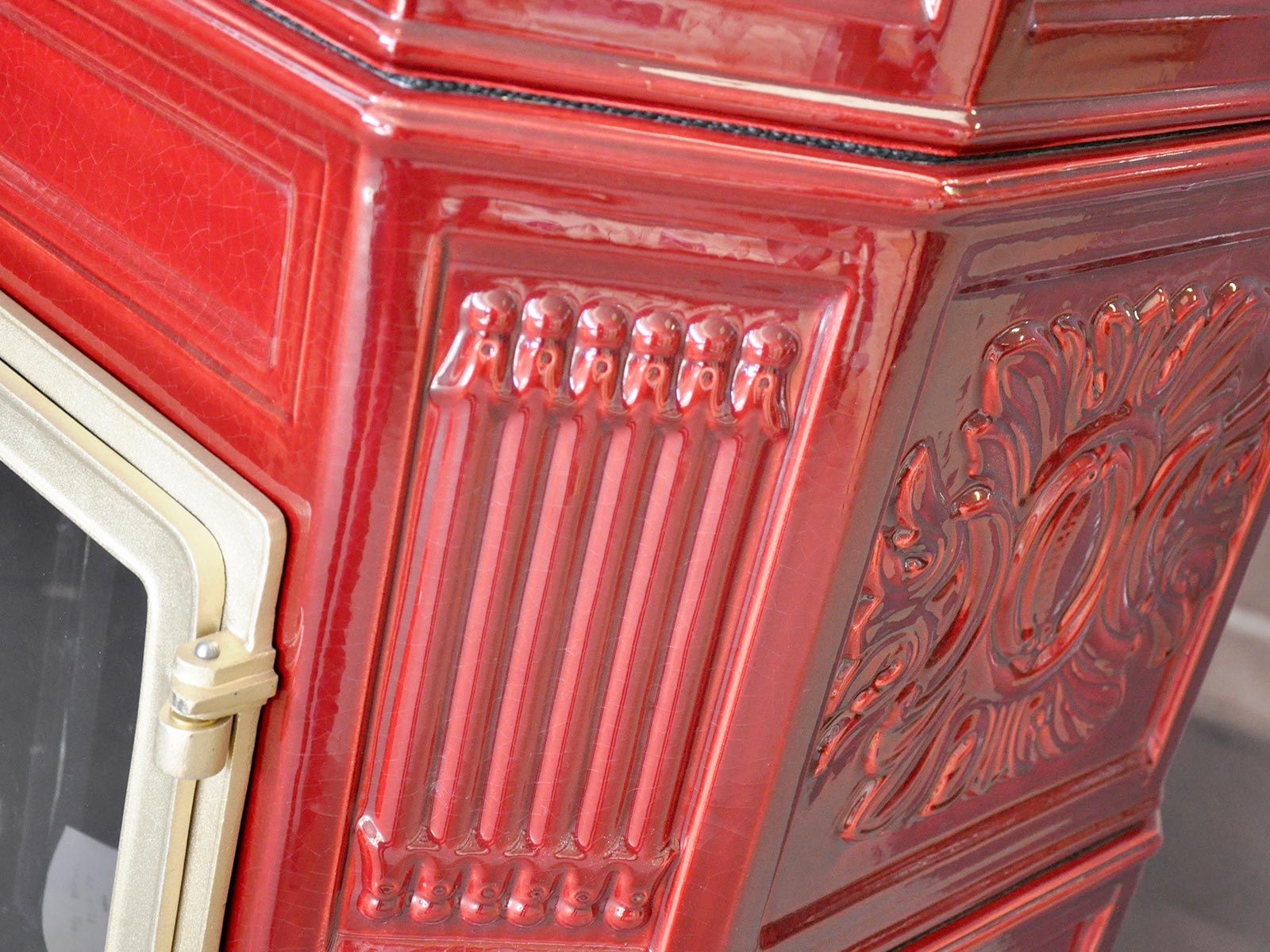

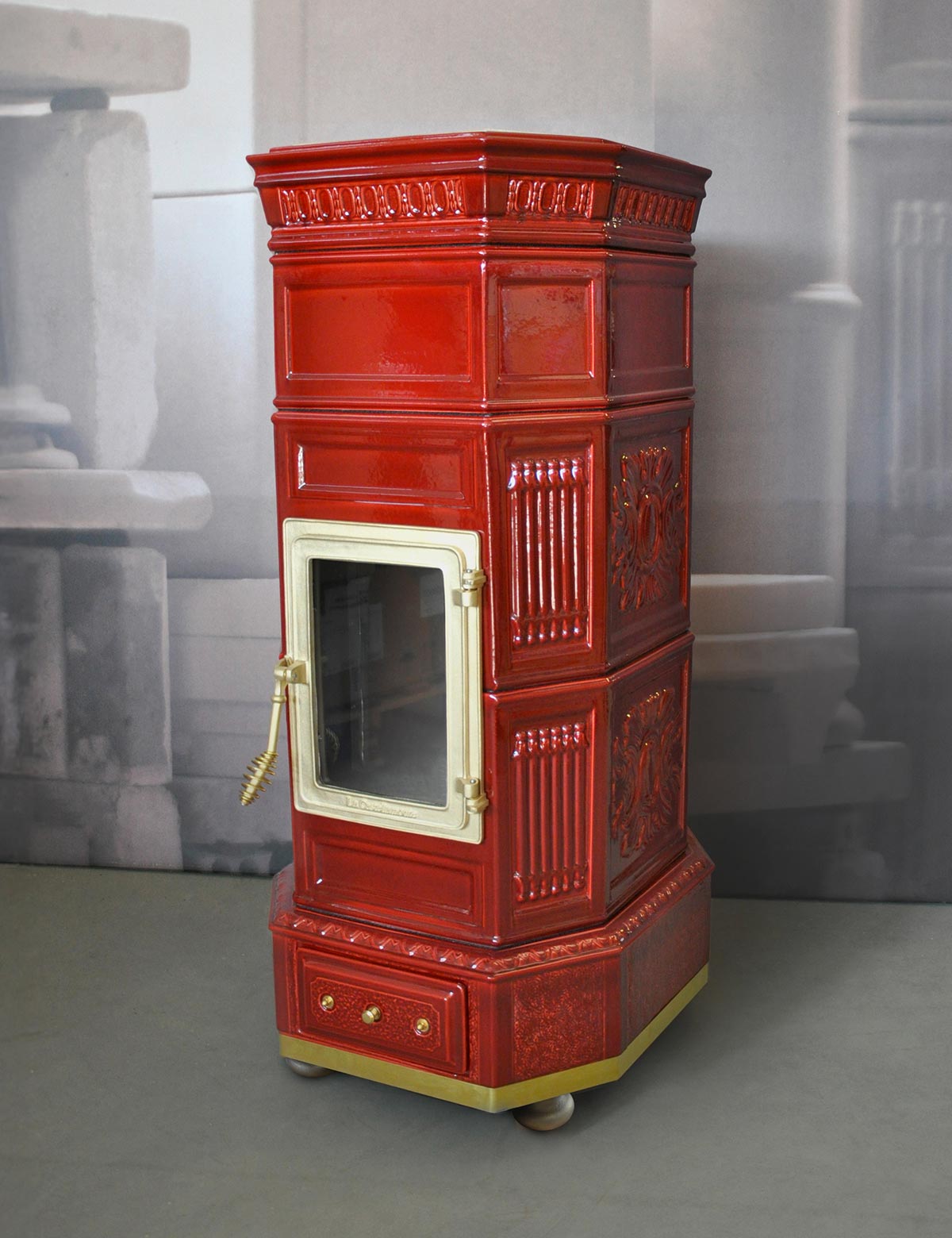

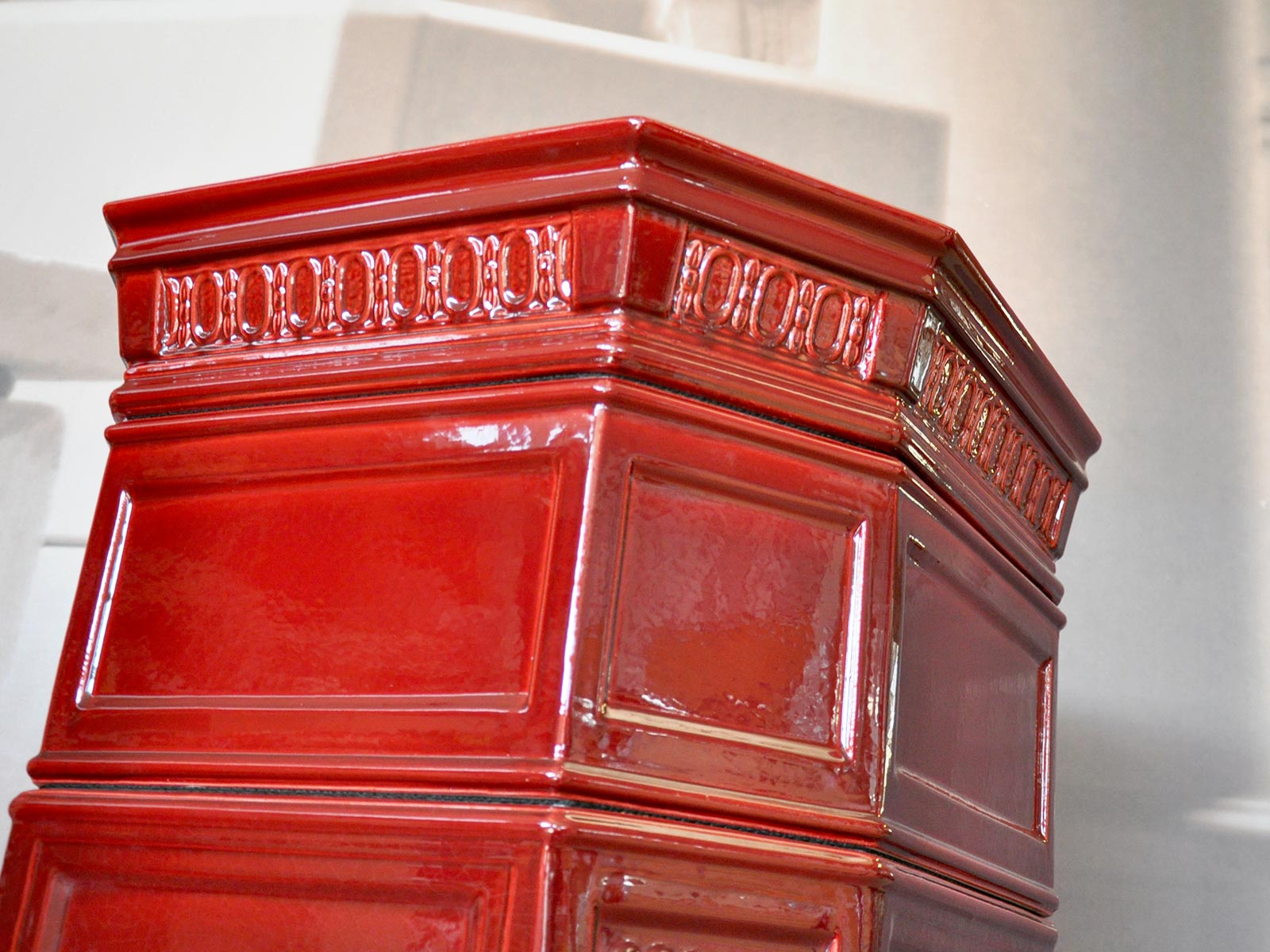

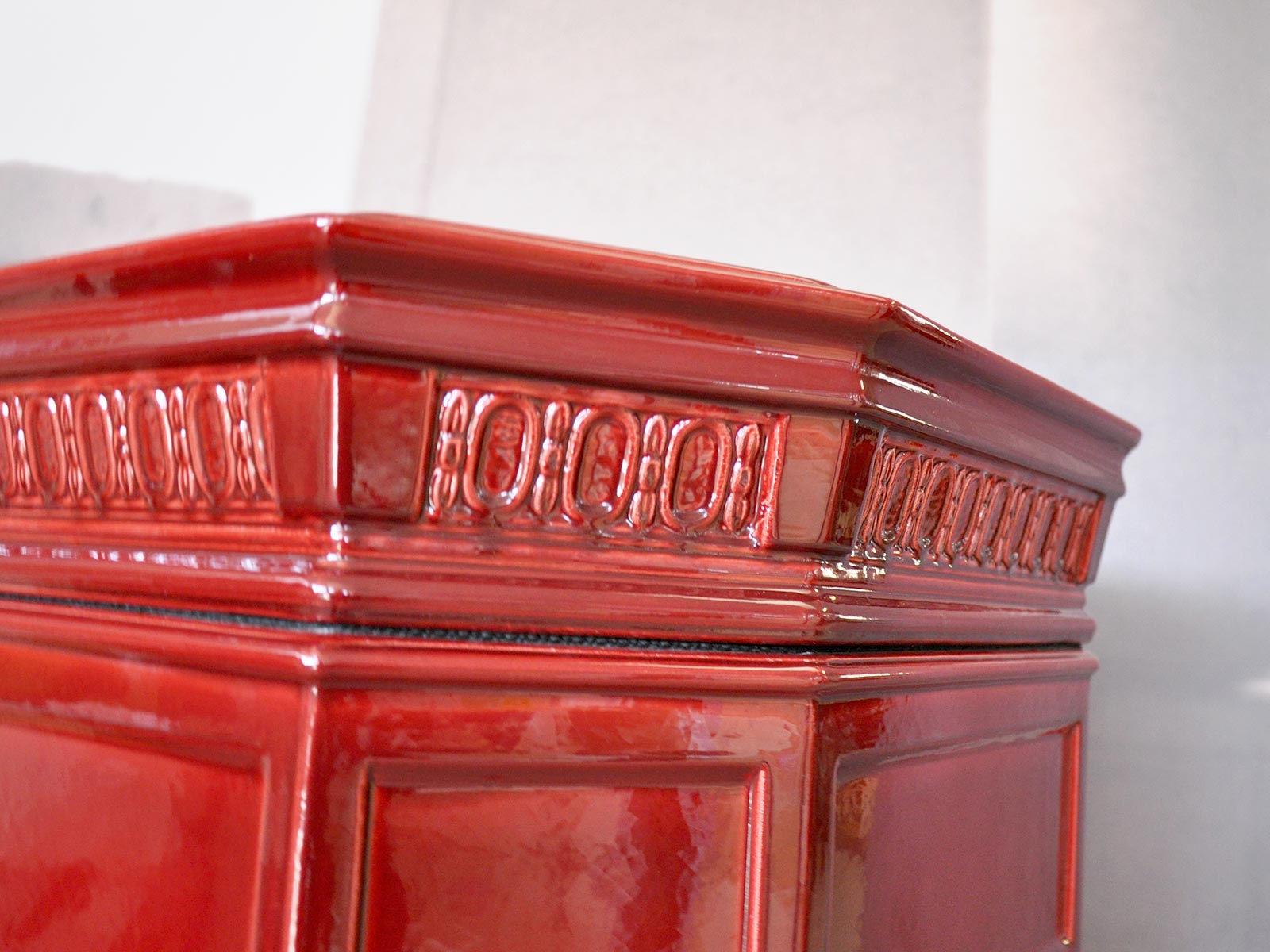

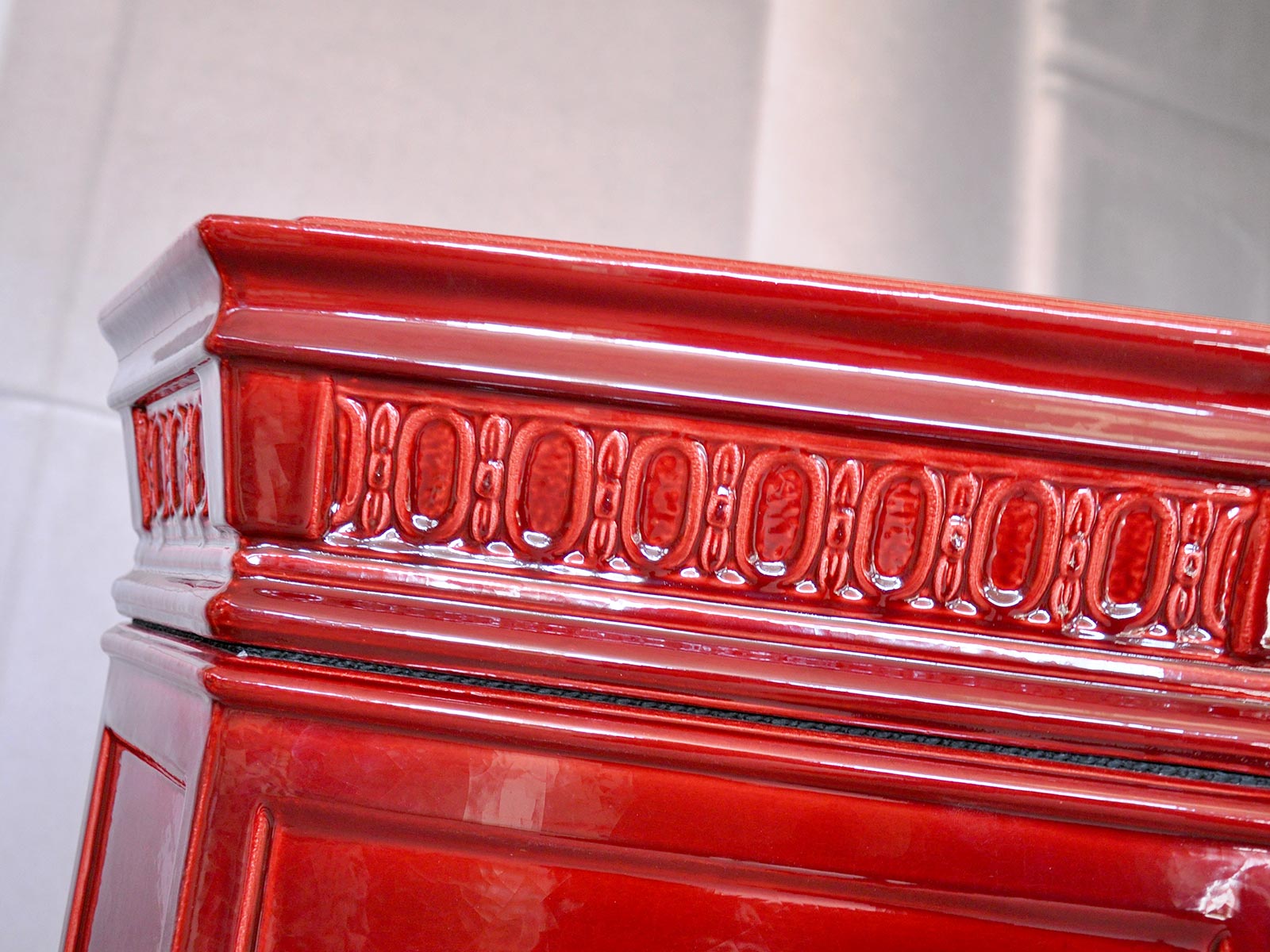

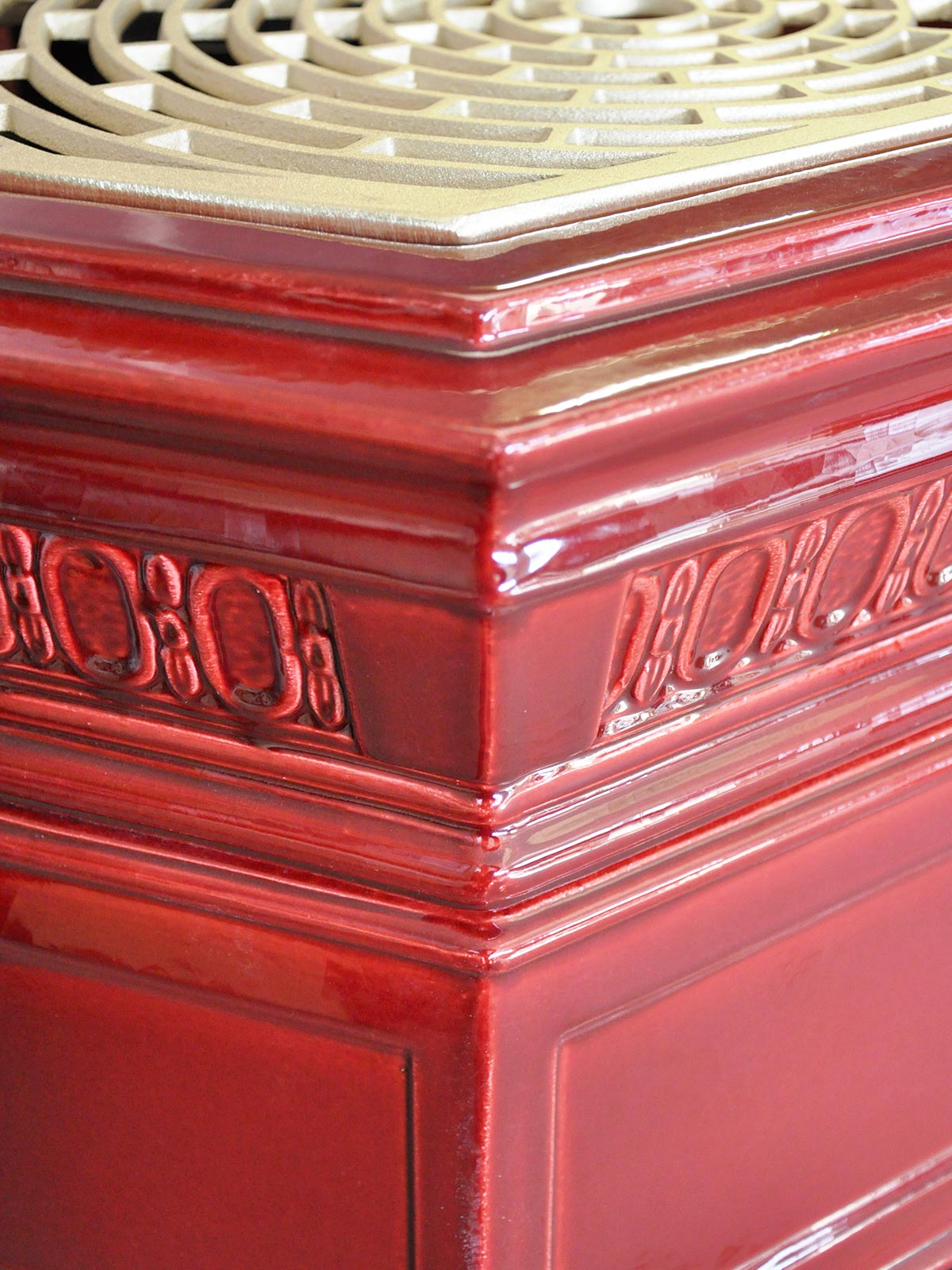

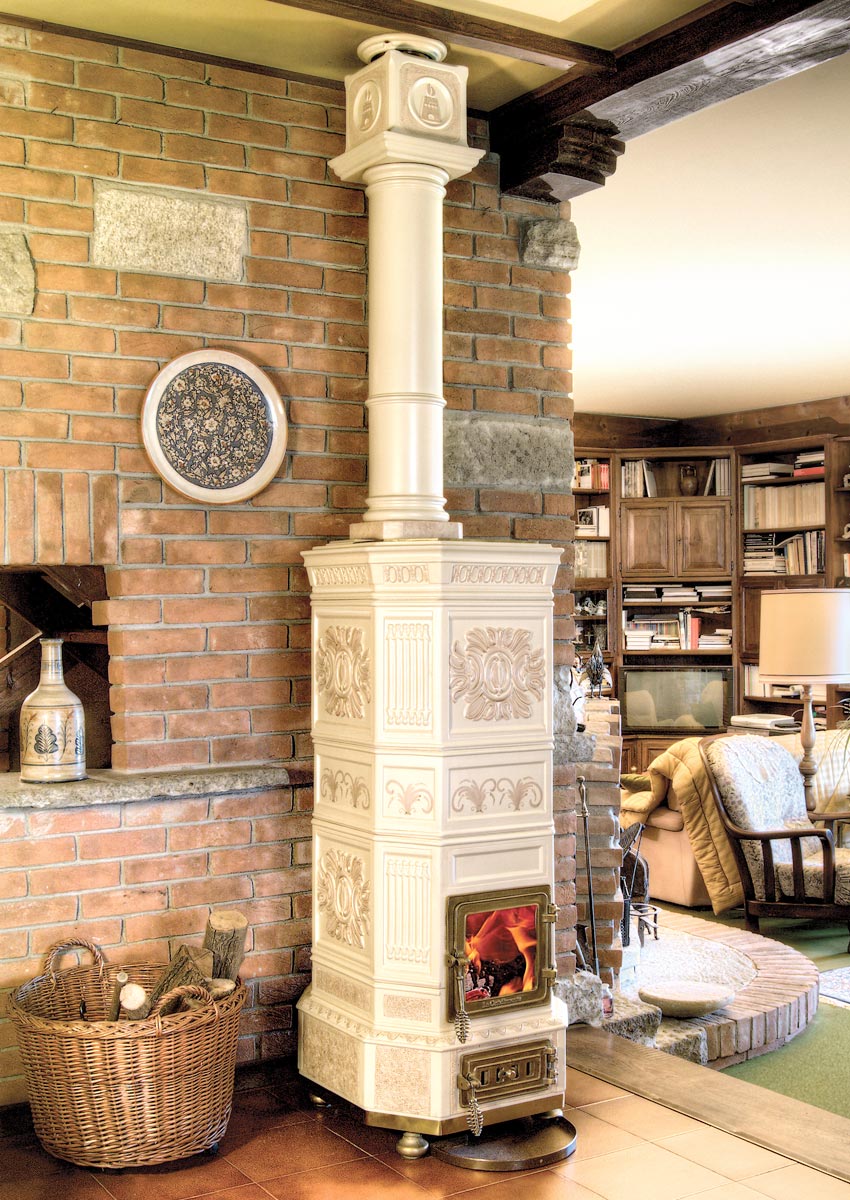

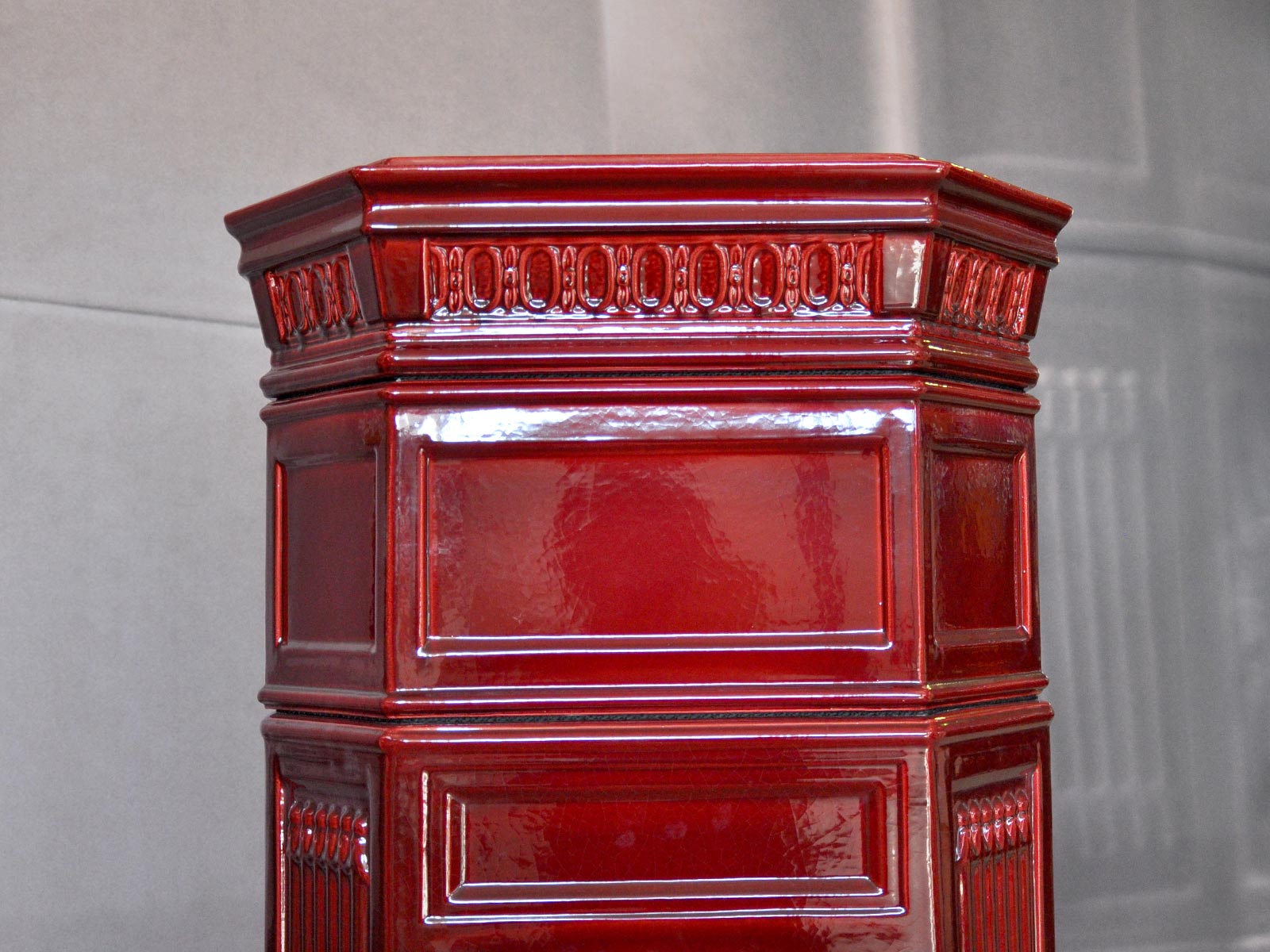

Its intriguing shape with irregular structure, four large and four small tiles, and the neo-gothic frieze make it at the same time severe and precious.
In the bigger sizes it becomes a truly unique decorative element.
It is produced in four sizes and with different combinations of smooth and ornated elements.
From the second size up, it can be equipped with a Great Fire door and fireplace.

To know the certifications of this stove click HERE ?

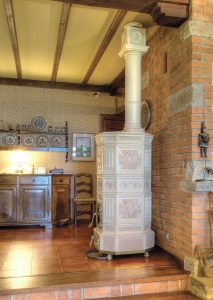

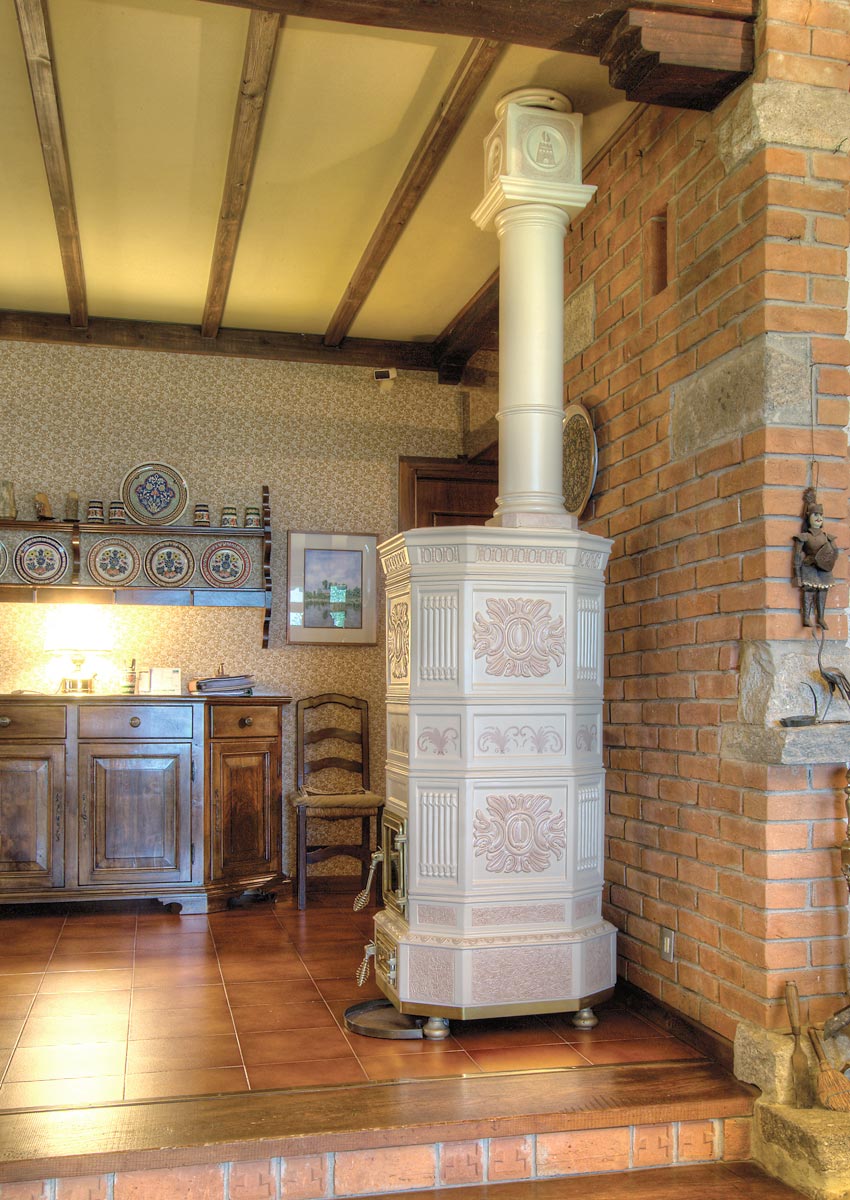

Photogallery

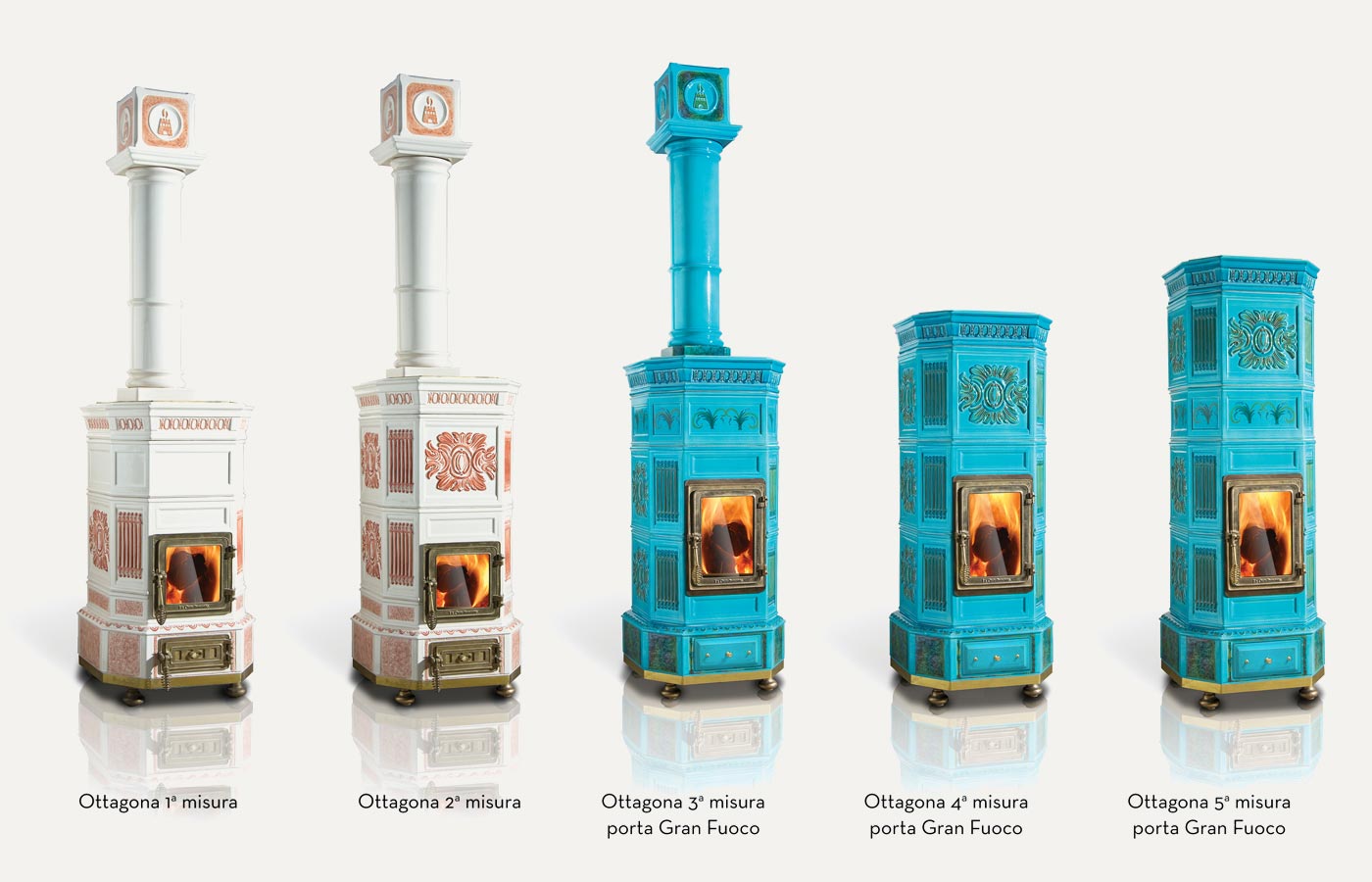

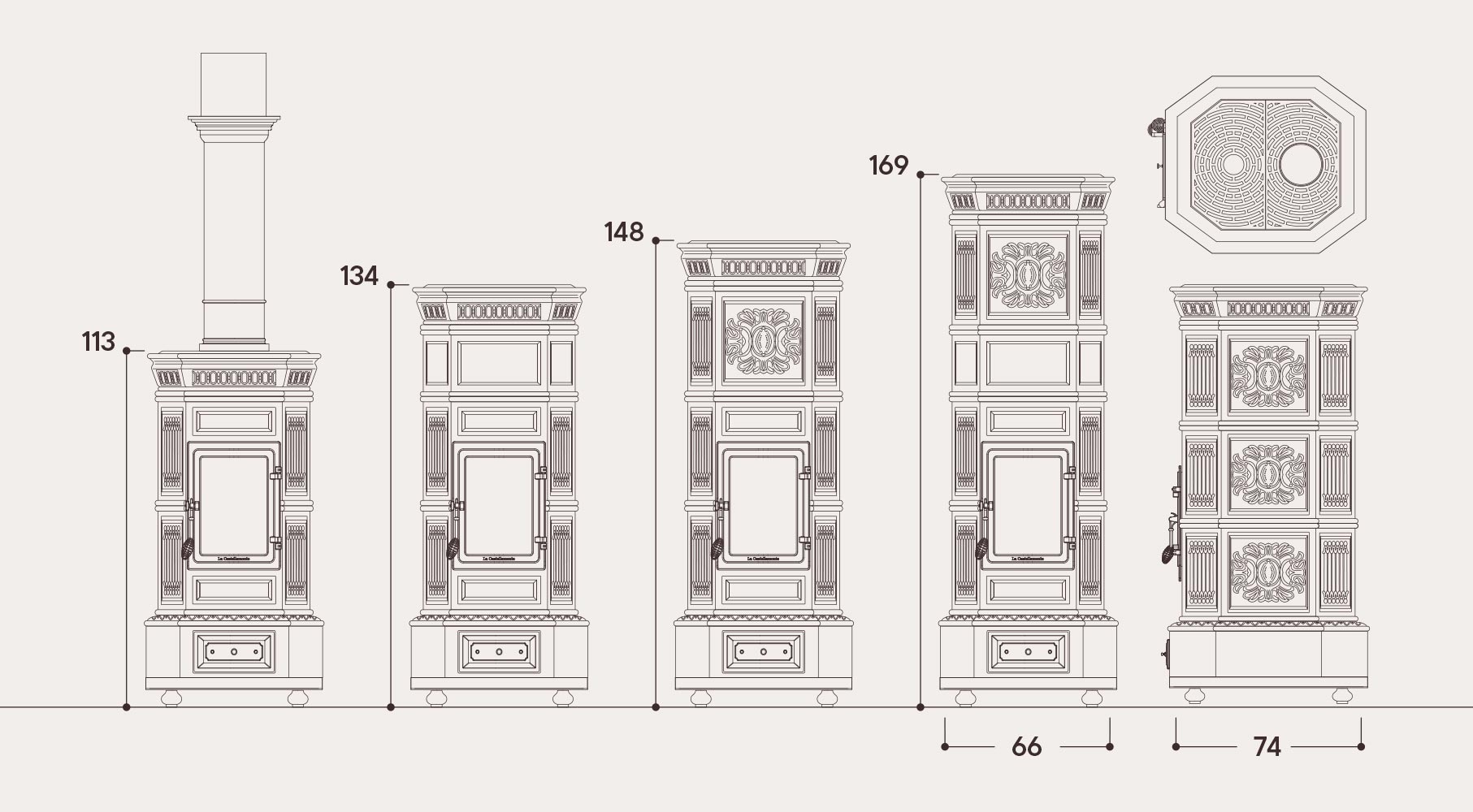

Sizes

Technical Data

Sizes
Nominal heat output *kW77,5910,510,5
Min. and max heat outputkW3 - 84 - 94 - 105 - 125 - 12
Heatable volume (Isol. Legge 10/91) **m385 - 230100 - 260100 - 280140 - 340140 - 340
Efficiency%7881798282
Carbon monoxide emissions % CO 13% O2%0,070,10,090,170,17
Dust 13% O2mg/Nm3-24---
Wood consumptionKg/h2,162,22,733
Smoke temperature°C274204224196196
Smoke exit diametercm1515151515
DraftPa1111111111
Total weightKg290315330360370
Dimensions ( W x D x H )cm57 x 67 x 11057 x 67 x 12557 x 67 x 13657 x 67 x 15157 x 67 x 171

* Complies with EN 13240 | DEUTSCHLAND BimSchV 2

** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.

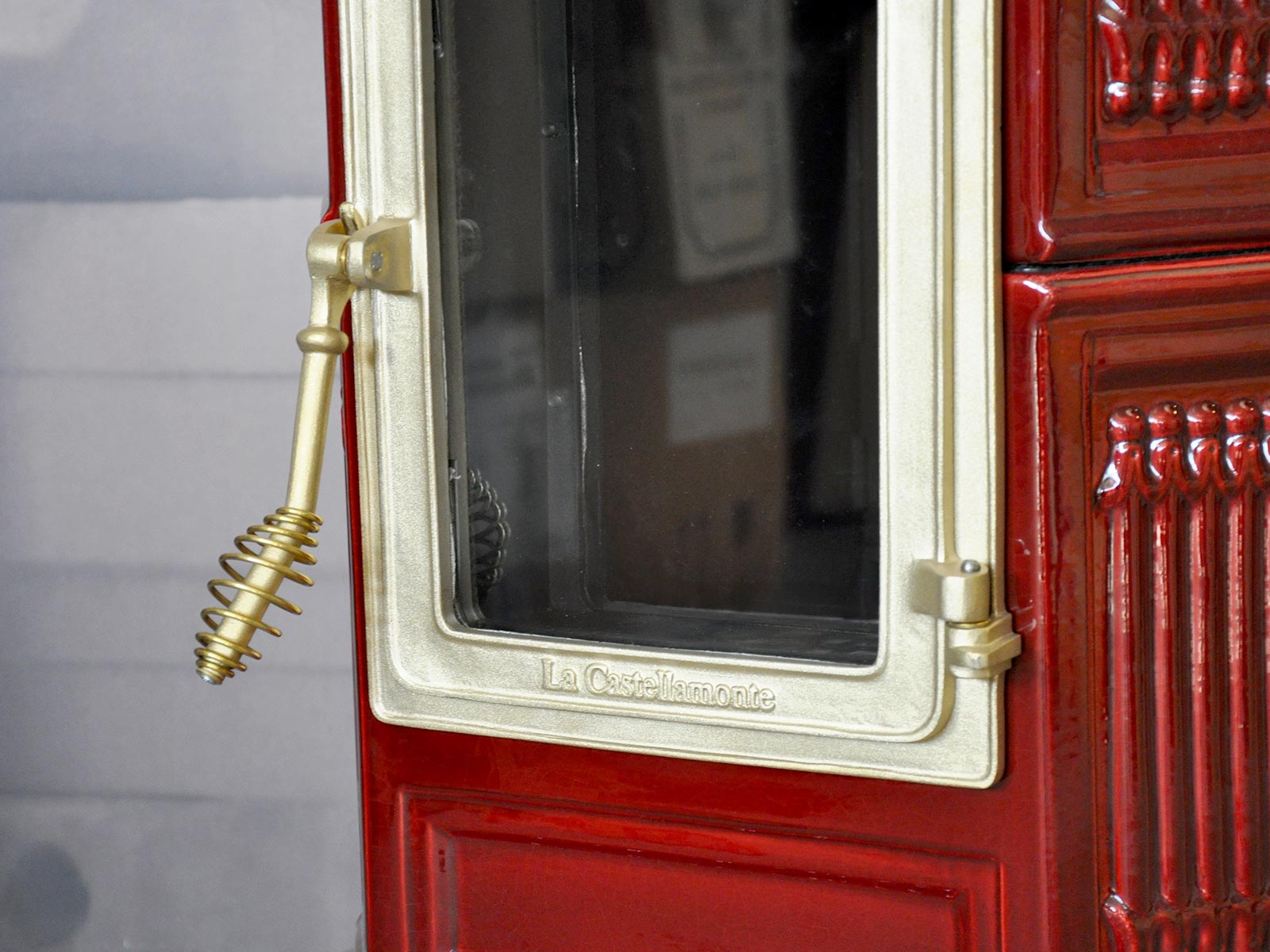

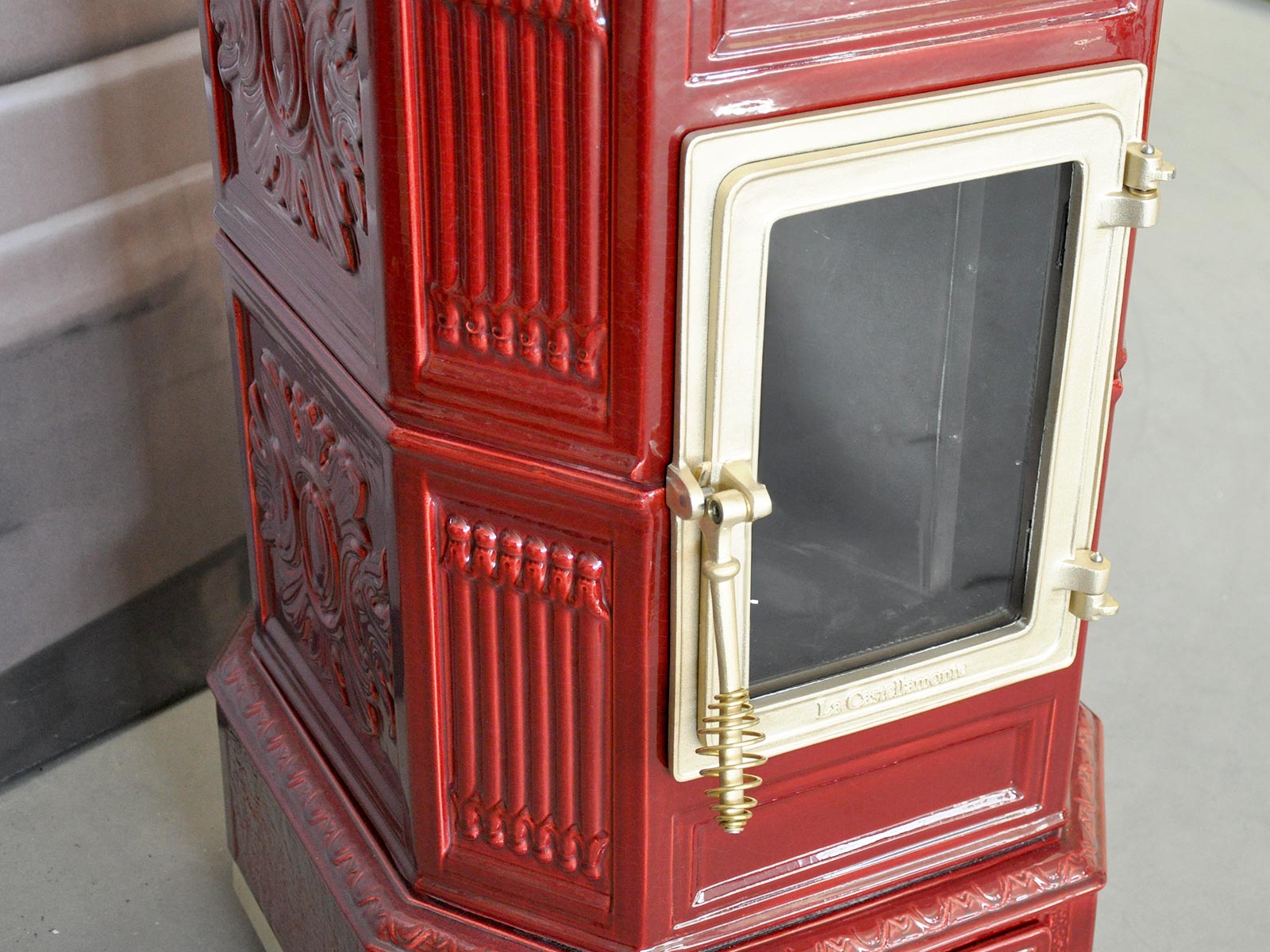

Standard Door Measurements
Door: 22 x 22 cm
Fireplace: 27 x 35 x 34 cm

Great Fire Door Measurements ( size 3 and 4 )
Door: 22 x 32 cm
Fireplace: 27 x 35 x 45 cm

Wood length:
30-33 cm

For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.
