Onda

Wood Combustion

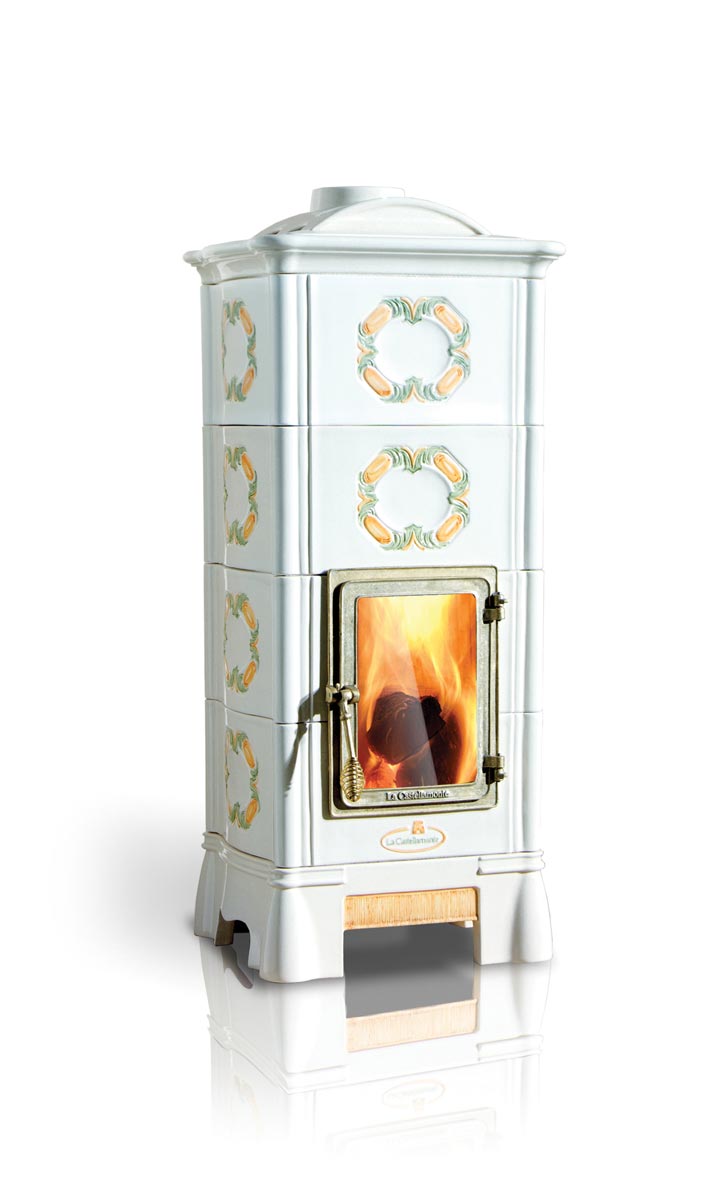

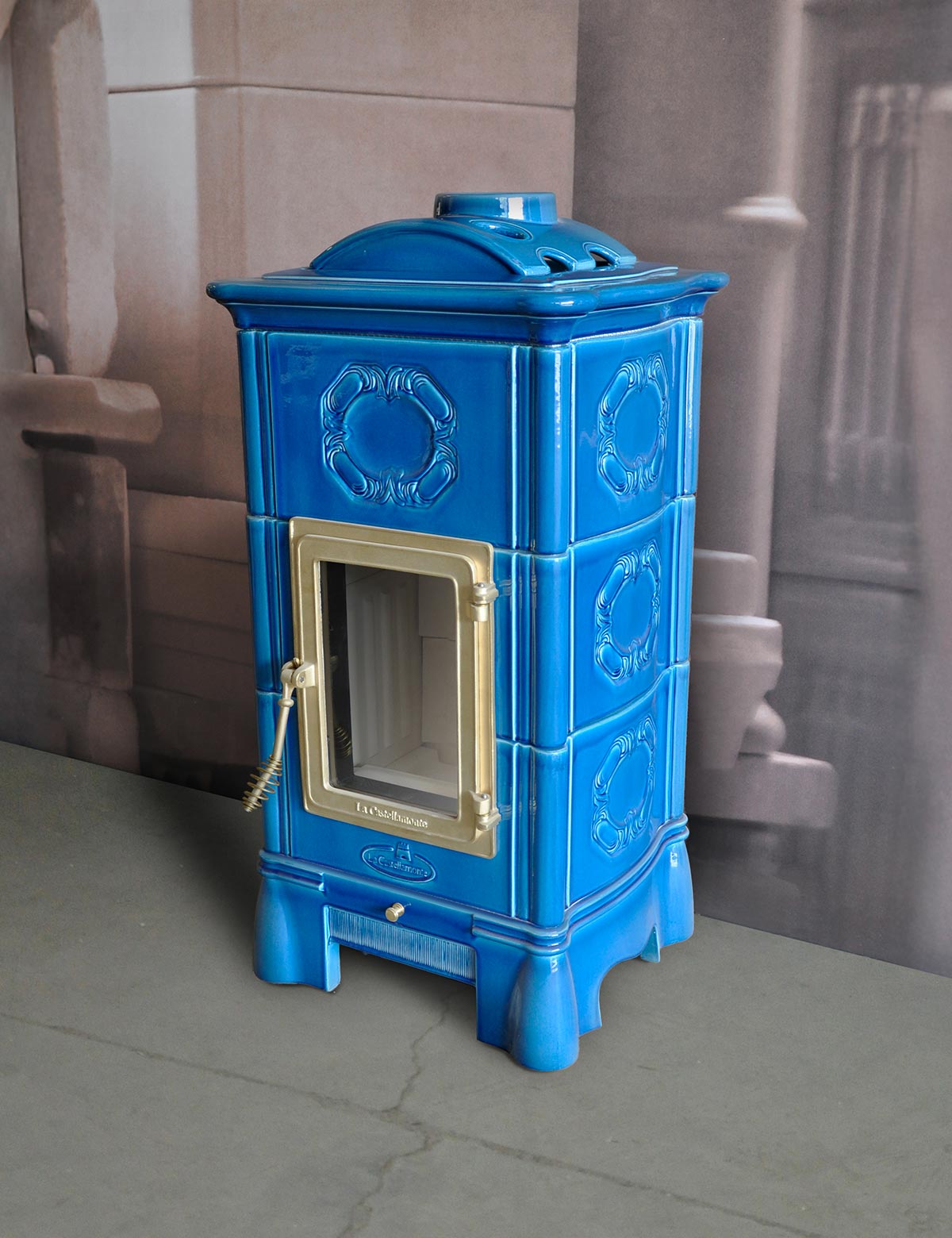

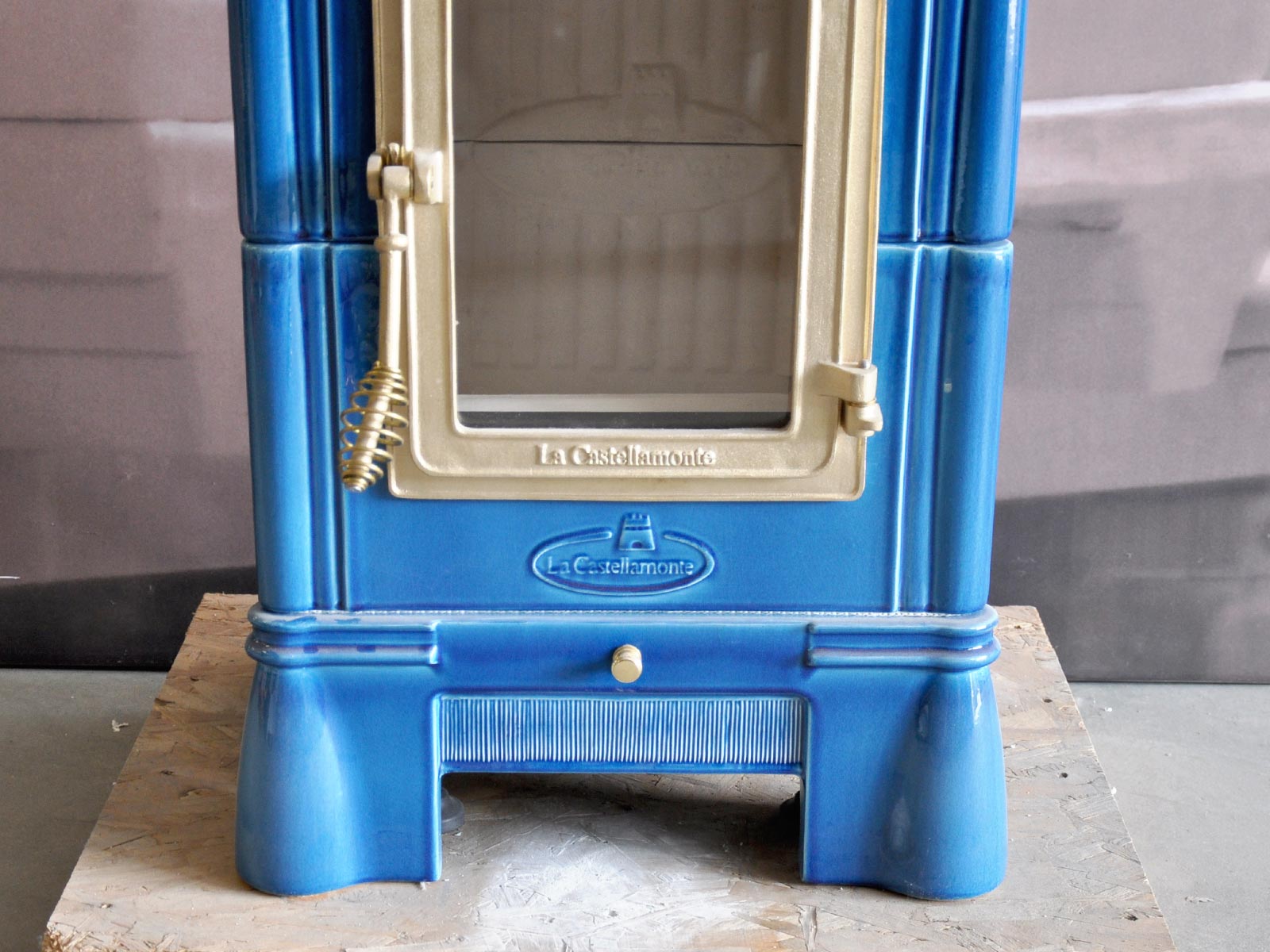

The waving of the flames on the wood chips inspired the shape of this pretty stove, which recalls in the name the movement of its base and its walls.

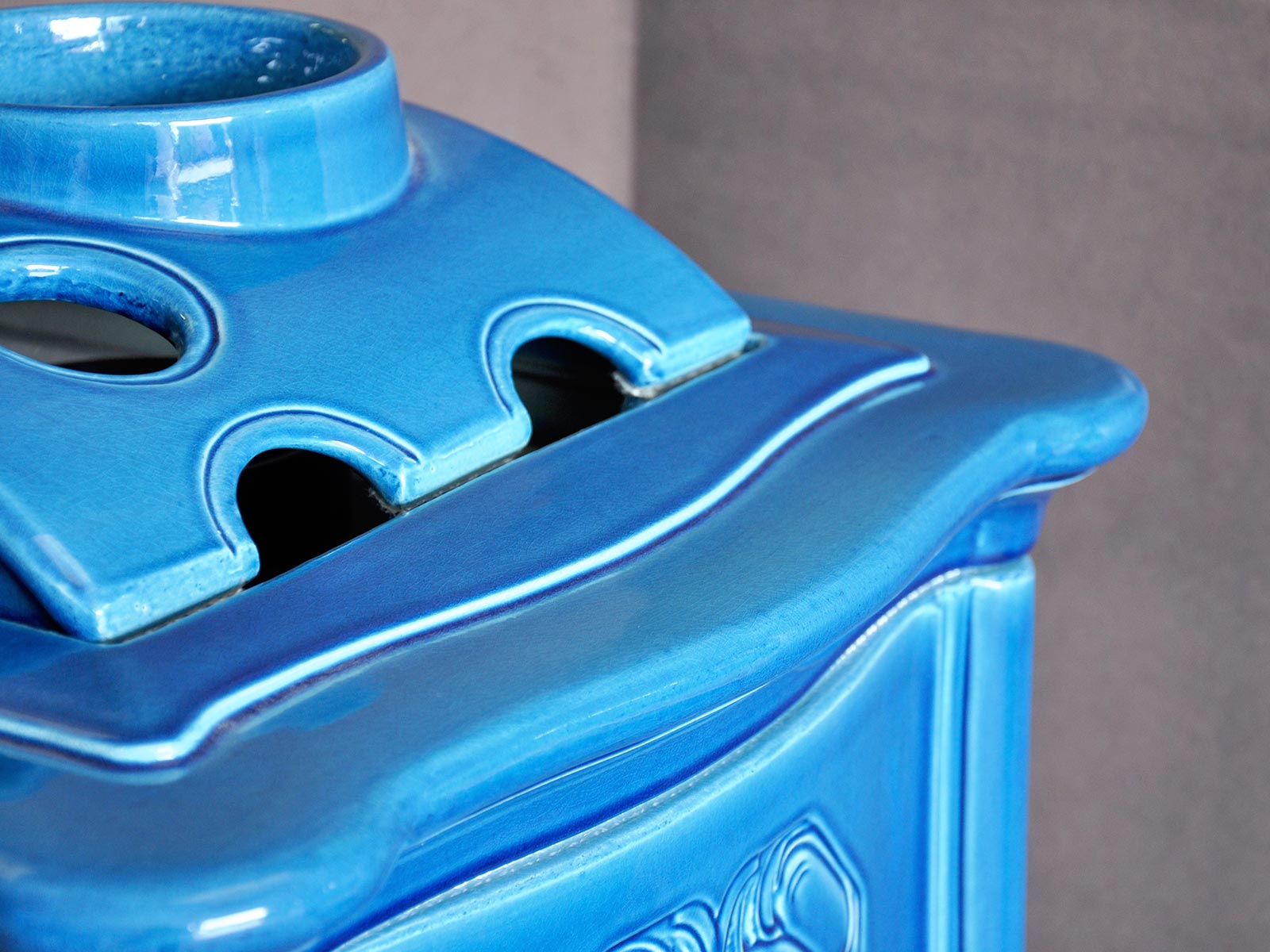

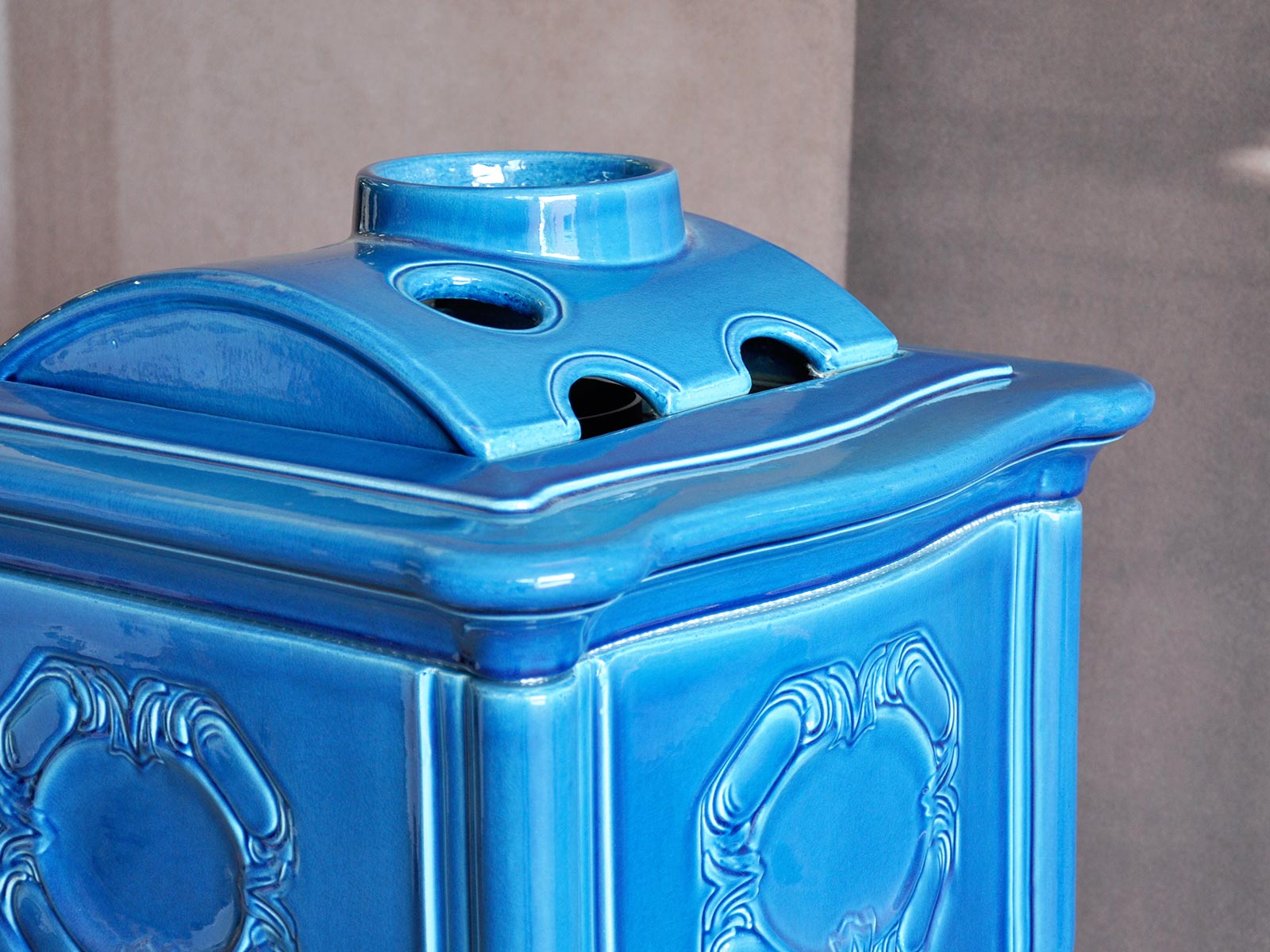

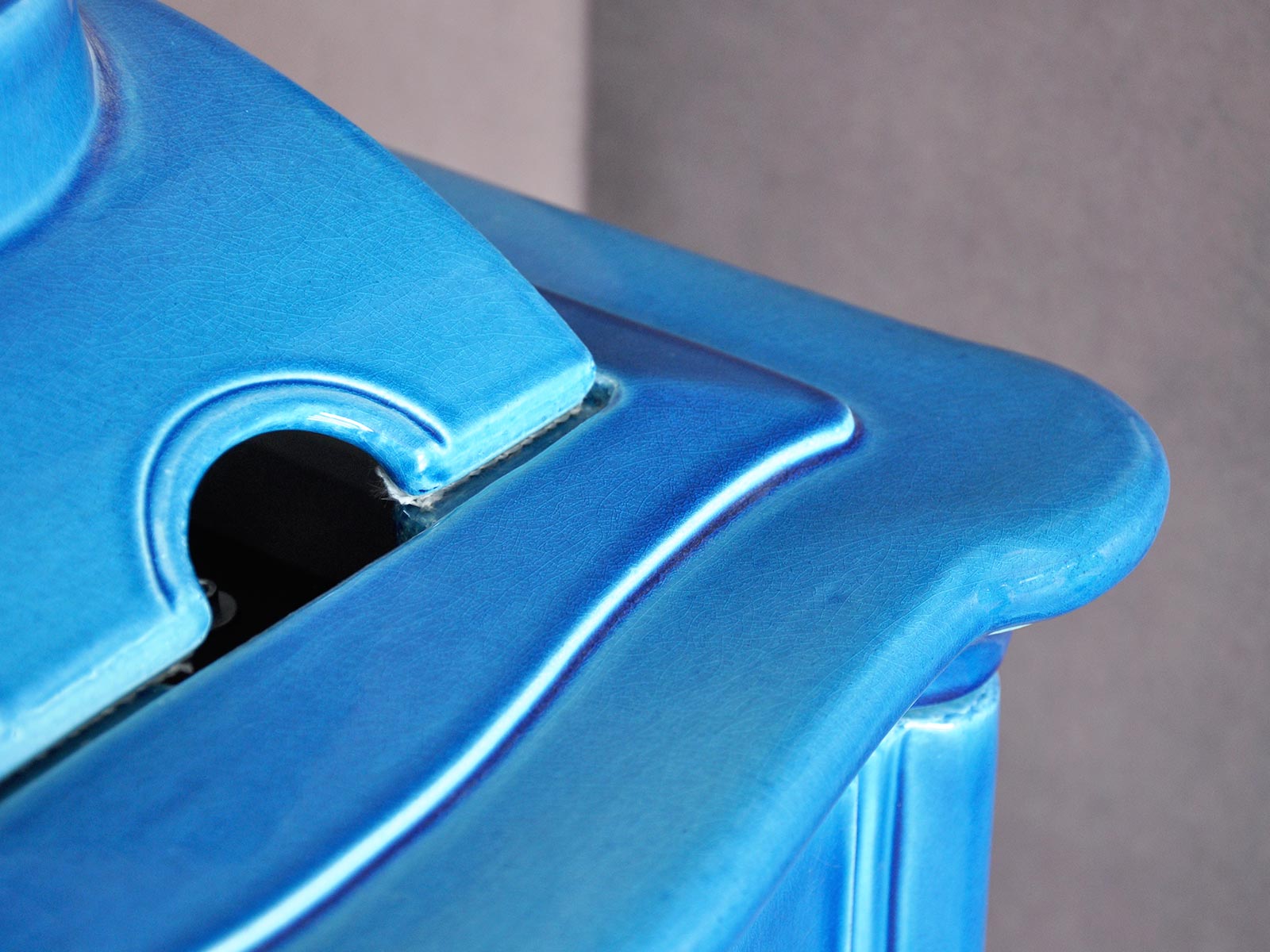

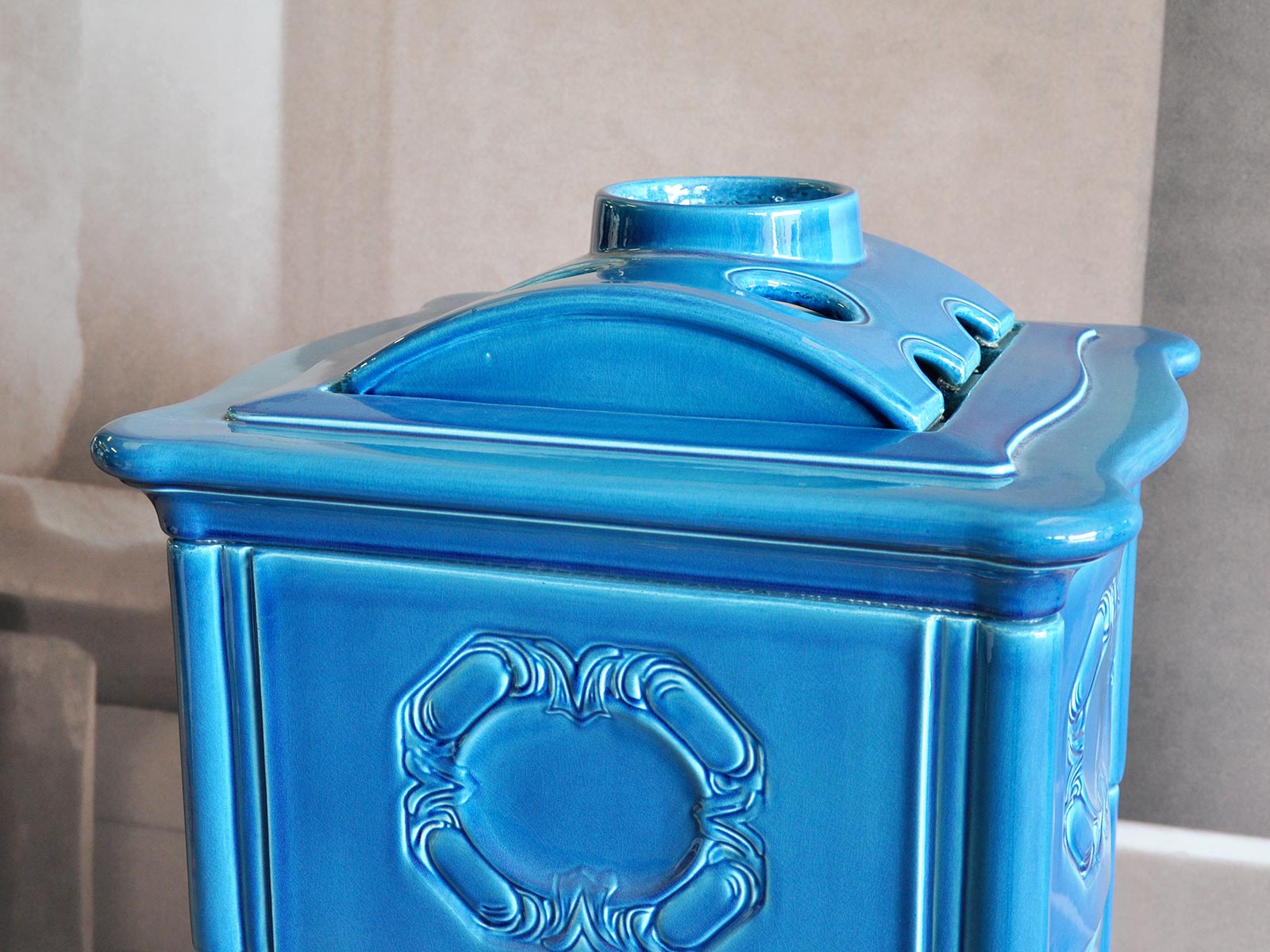

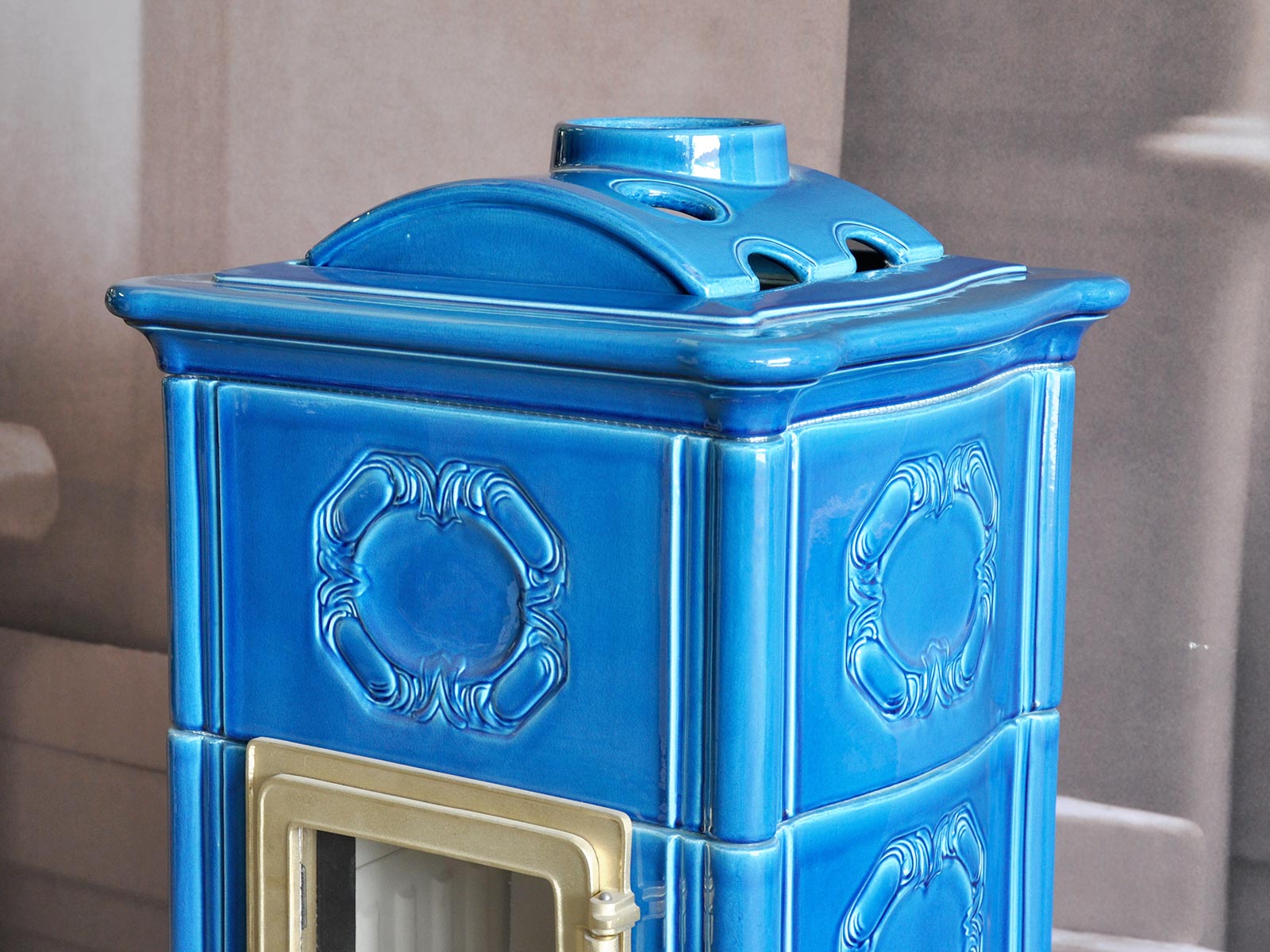

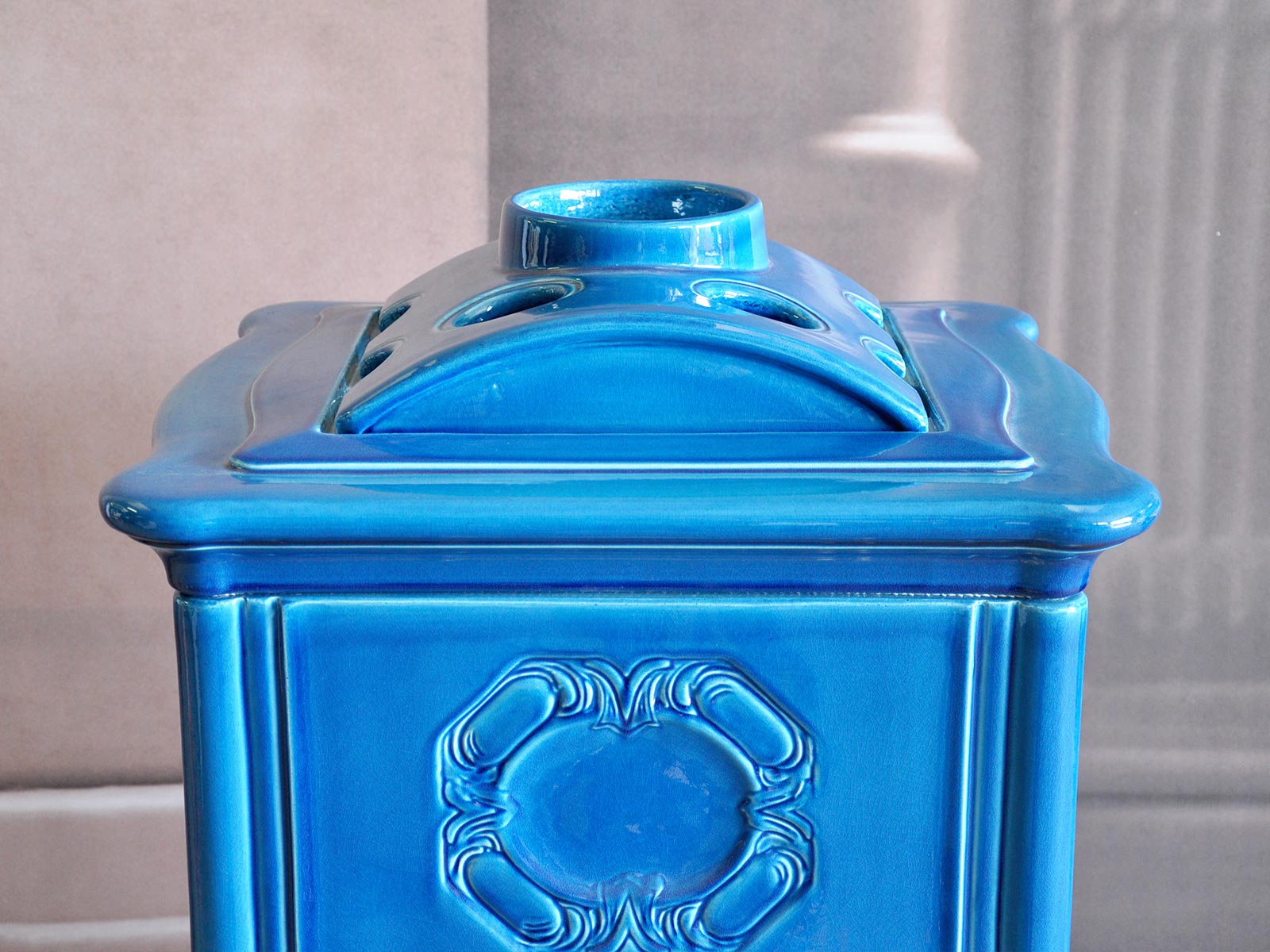

The upper cupola accentuates the rounded shapes that characterize this small stove.

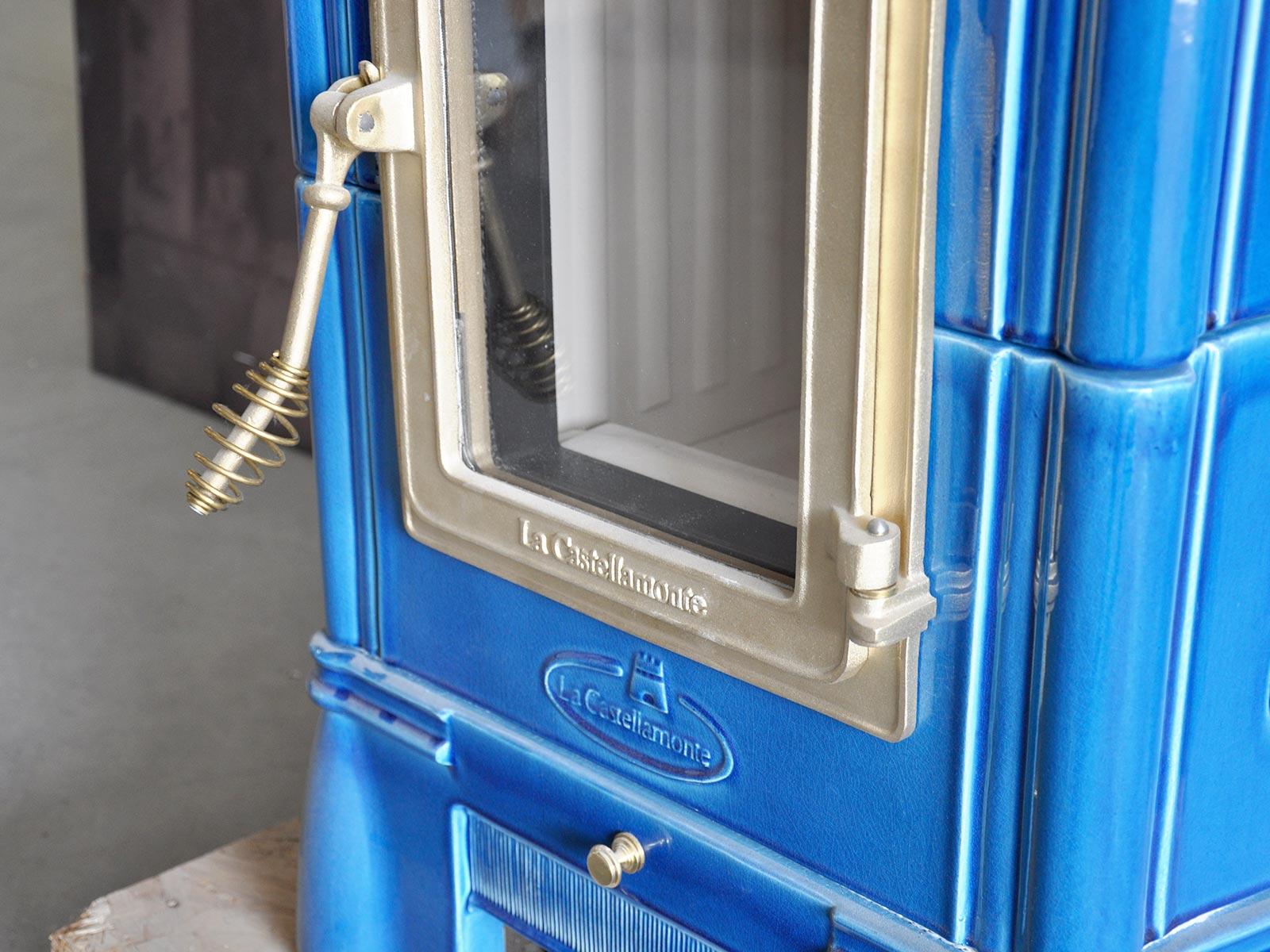

It is equipped with Great Fire door, to facilitate the introduction of wood.

To know the certifications of this stove click HERE ?

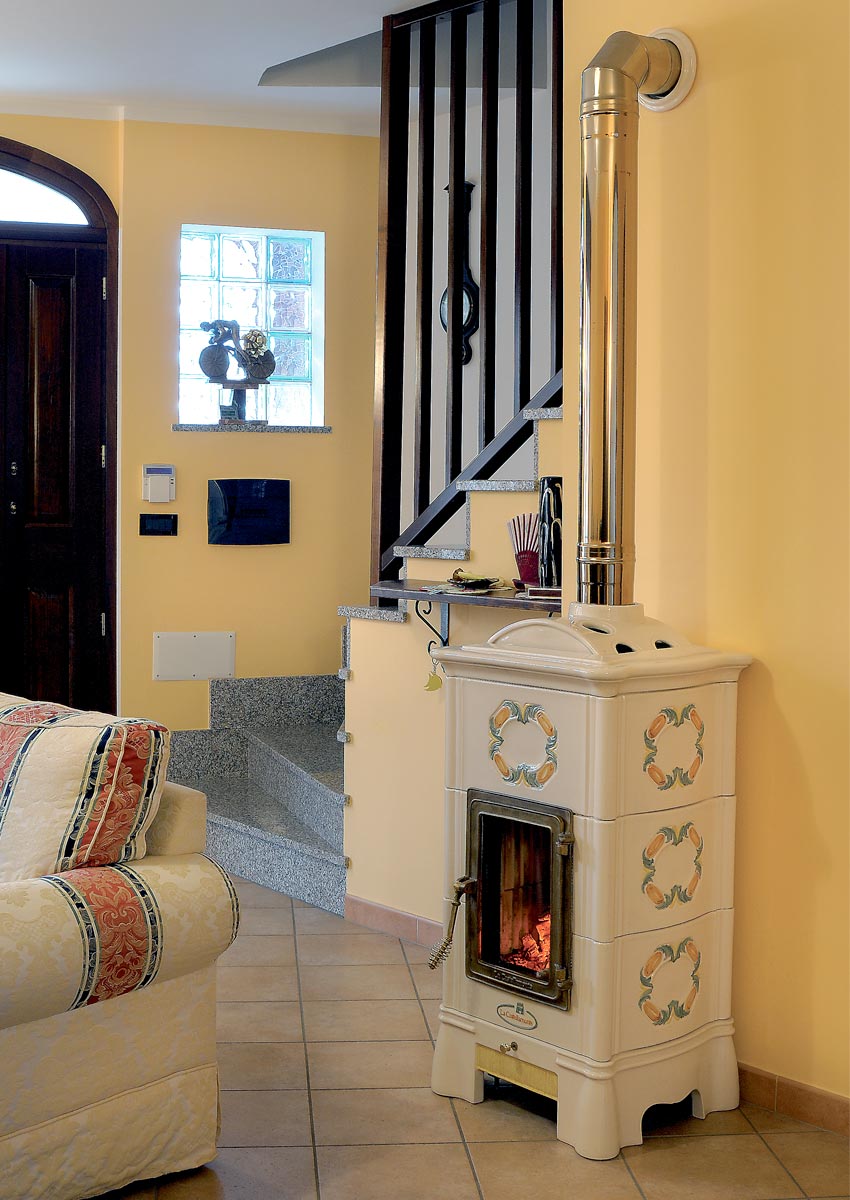

Photogallery

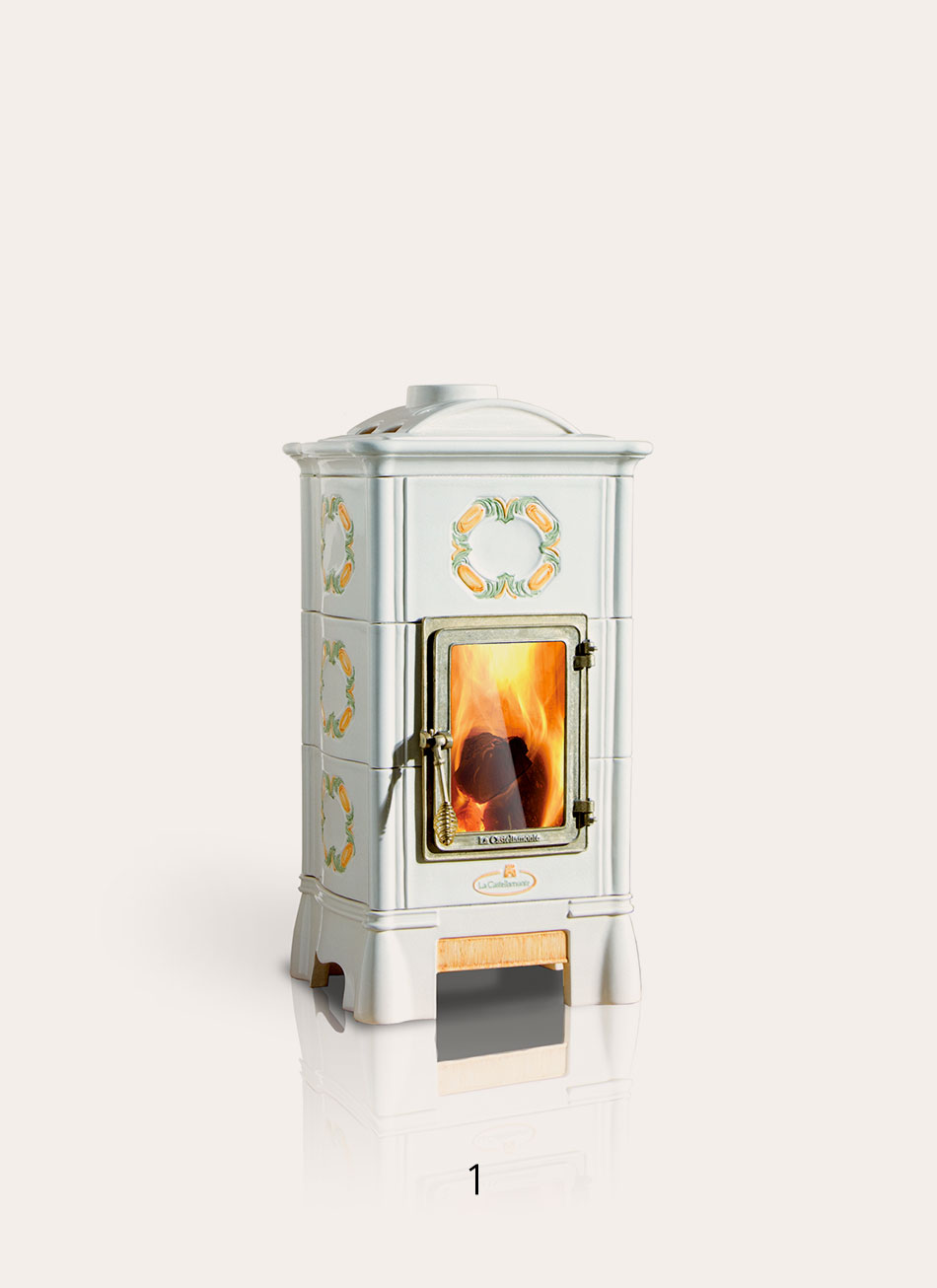

Sizes

Technical Data

Sizes2° con forno
Nominal heat output *kW676
Min. and max heat outputkW3 - 73 - 83 - 7
Heatable volume (Isol. Legge 10/91) **m385 - 20085 - 23085 - 200
Efficiency%777777
Carbon monoxide emissions % CO 13% O2%0,060,060,06
Dust 13% O2mg/Nm3303030
Wood consumptionKg/h1,82,11,8
Smoke temperature°C250253250
Smoke exit diametercm121212
DraftPa111211
Total weightKg170215230
Dimensions ( W x D x H )cm54 x 49 x 10854 x 49 x 13054 x 49 x 130

* Complies with EN 13240 | DEUTSCHLAND BimSchV 2

** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.

Standard Door Measurements
Door: 22 x 22 cm
Fireplace: 29 x 24 x 34 cm

Great Fire Door Measurements
Door: 22 x 33 cm
Fireplace: 29 x 24 x 40 cm

Wood length:
25-27 cm

For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.
