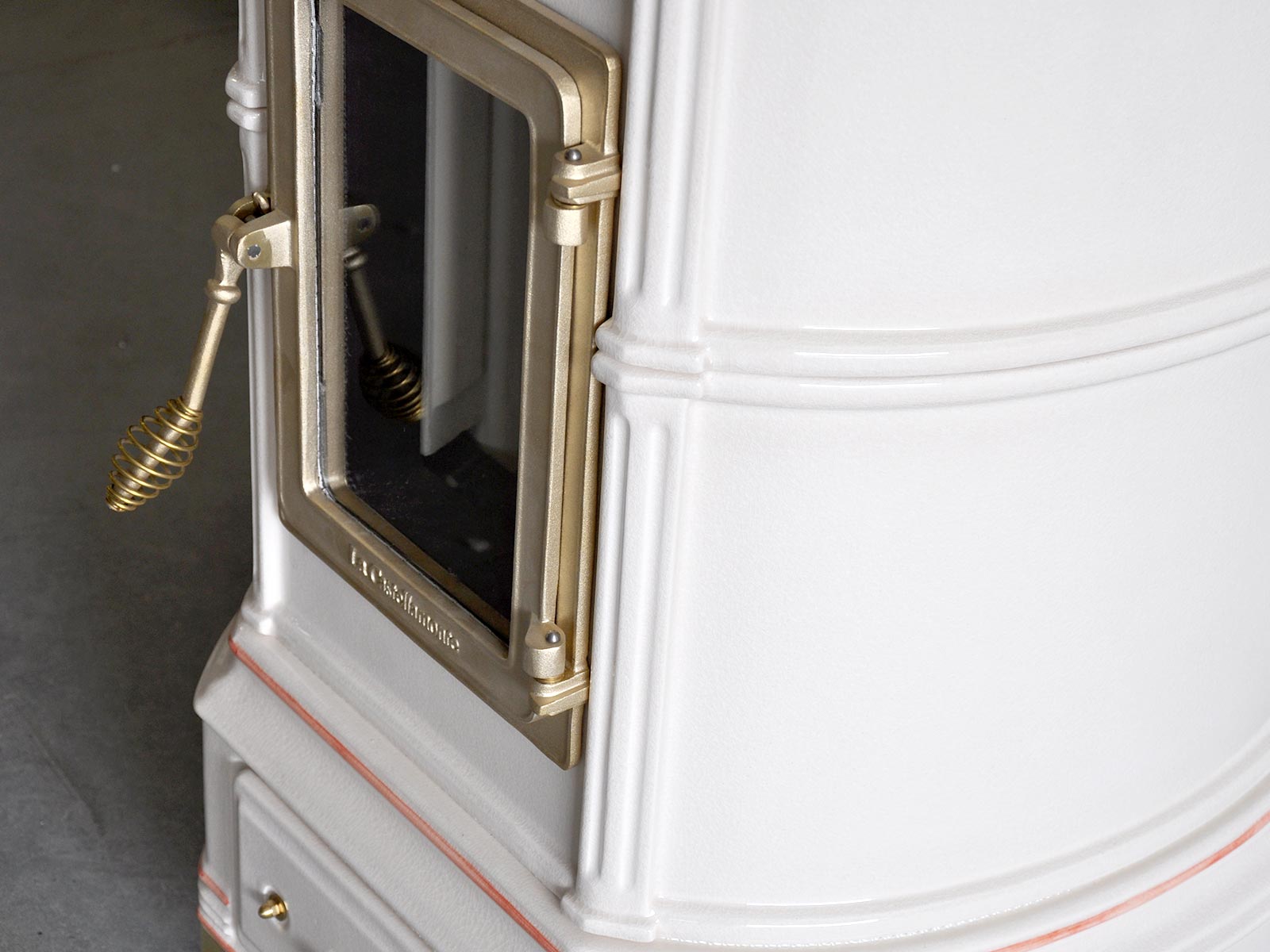

Grand’Ovale is a stove characterized by a great yield, great autonomy and significant emission parameters, being equipped with a Great Fire door and wide fireplace, thanks to which it was awarded the German Din Plus in 2009. Recommended for medium to large volumes, it can also be used as a waterstove.

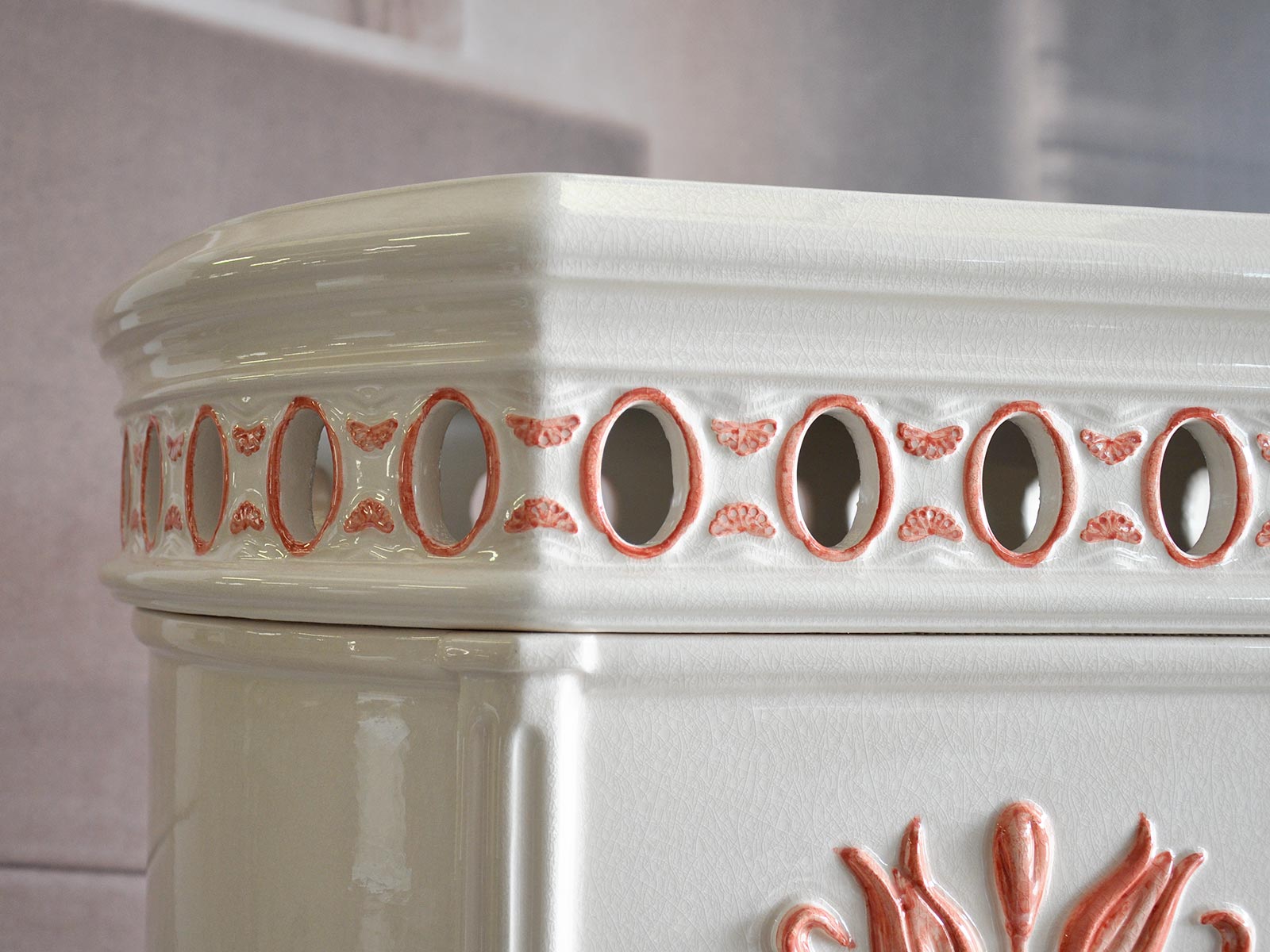

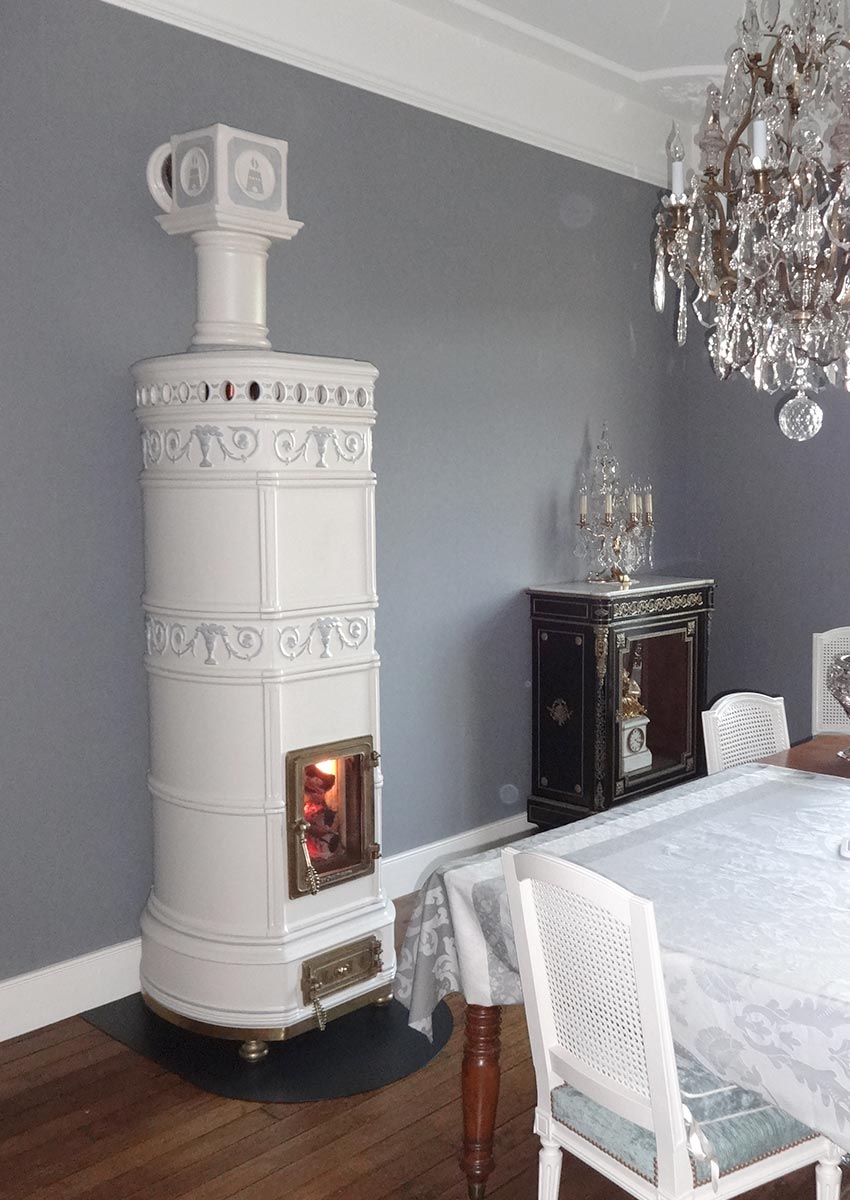

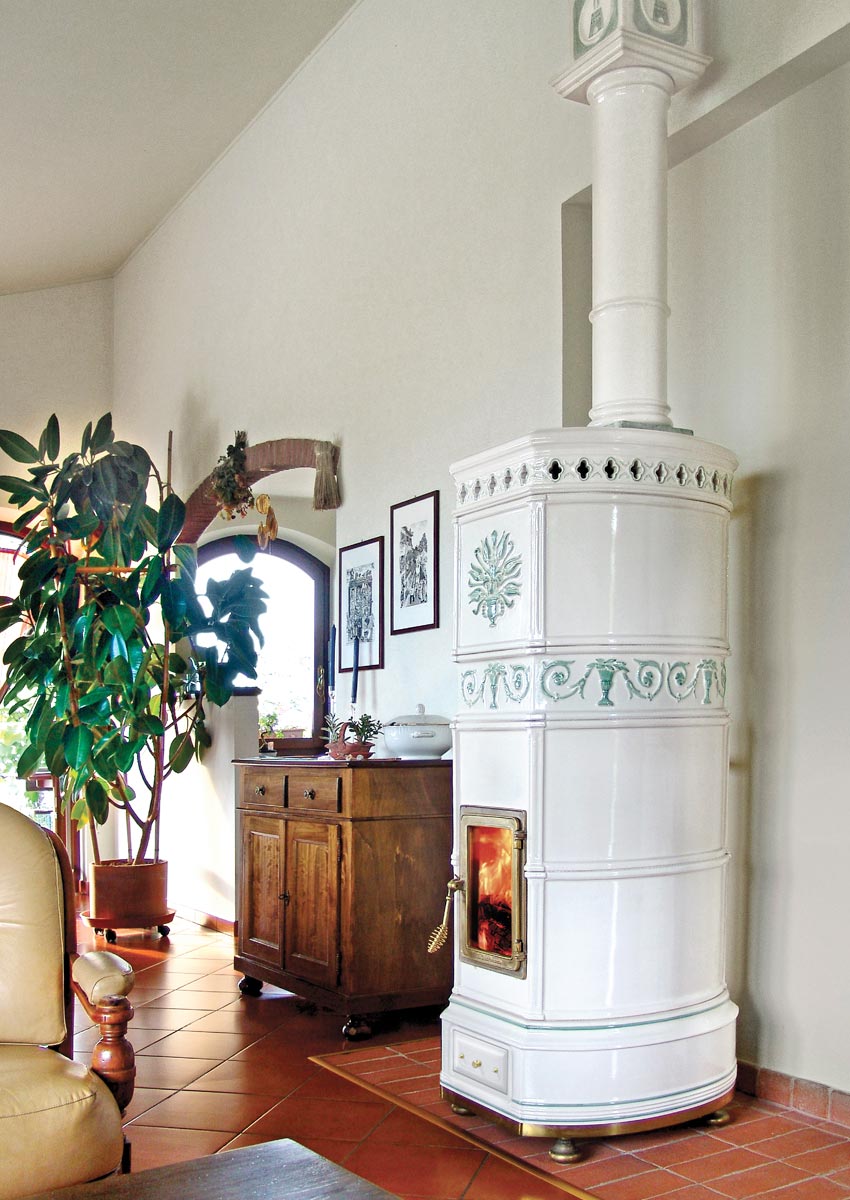

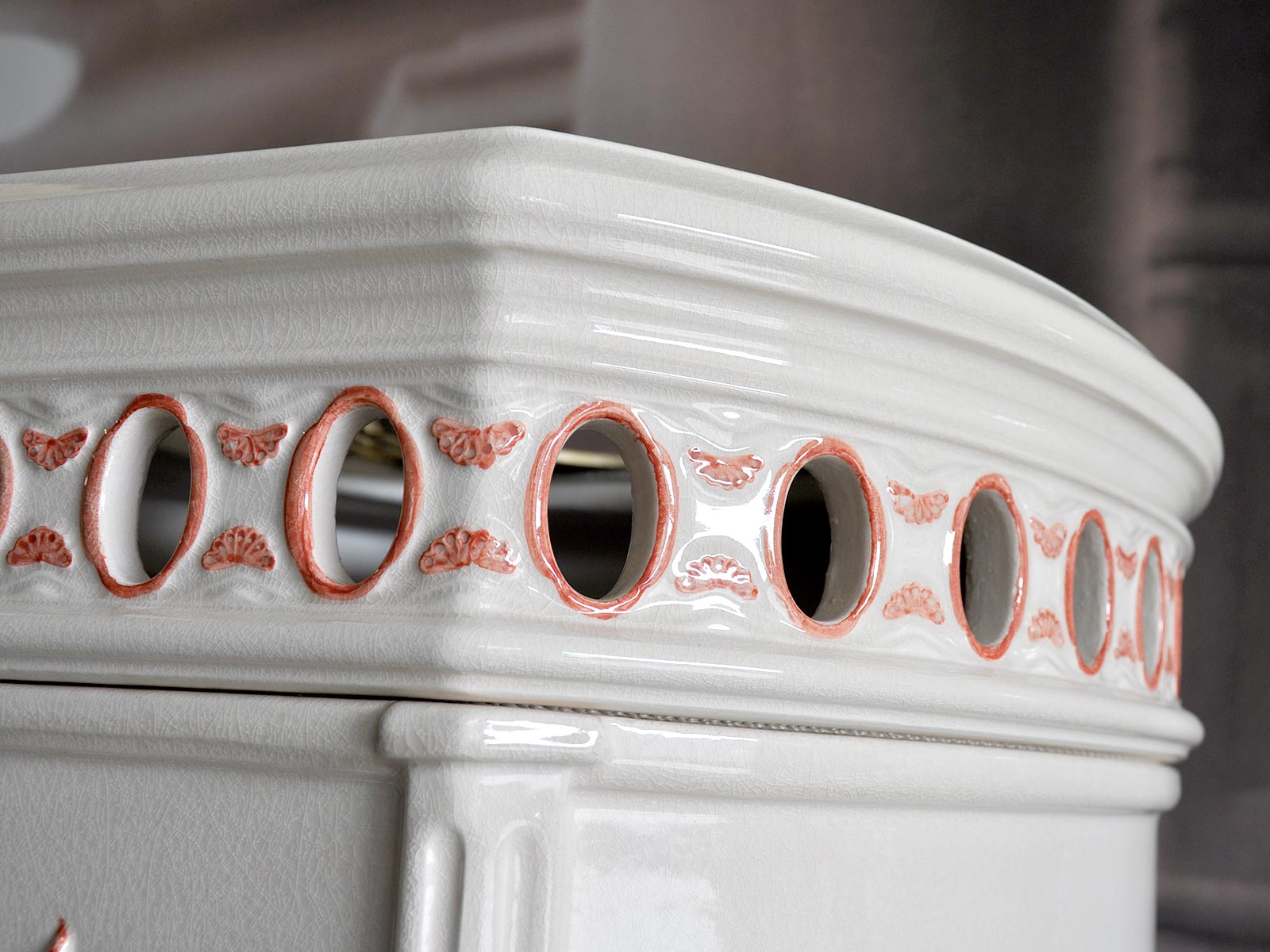

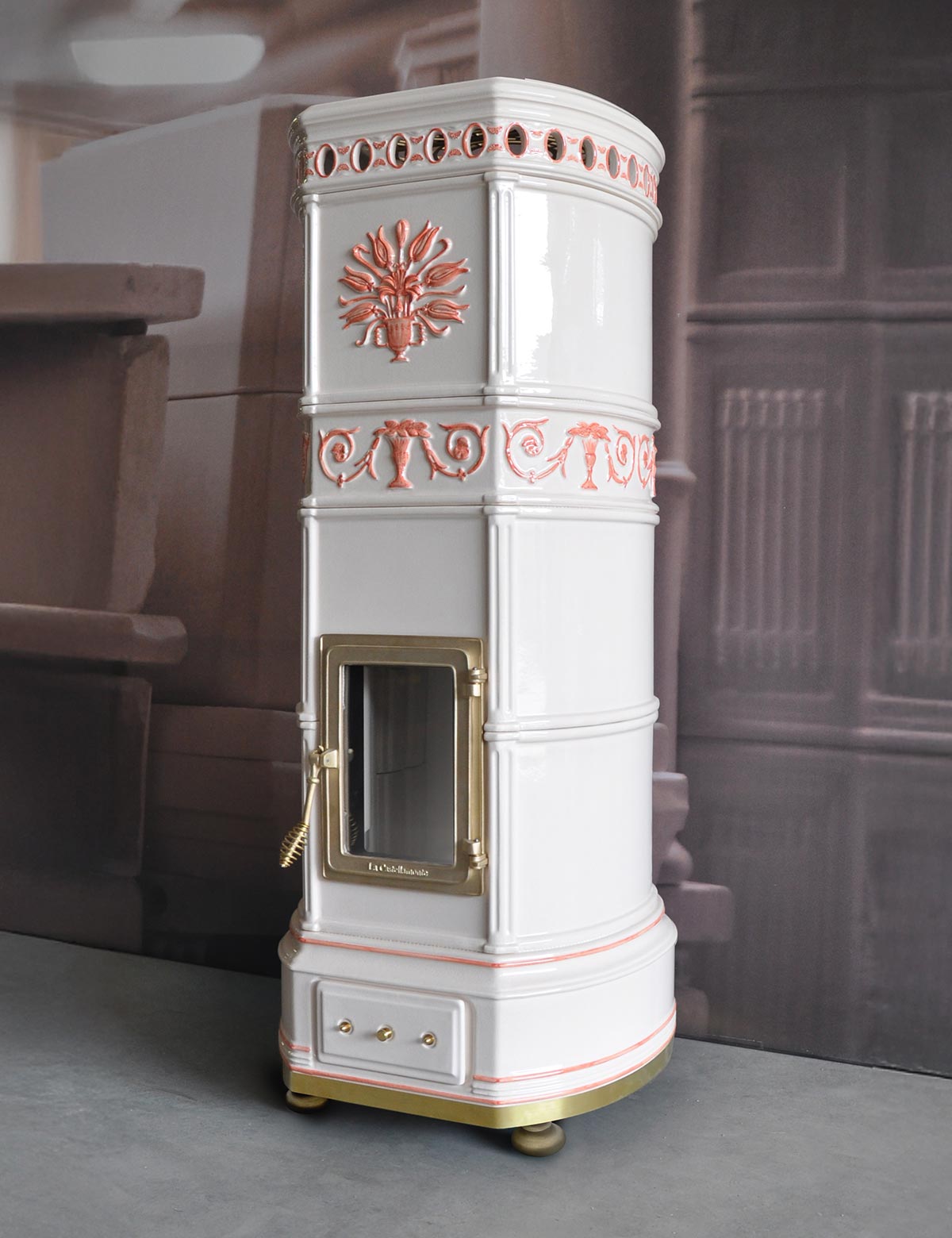

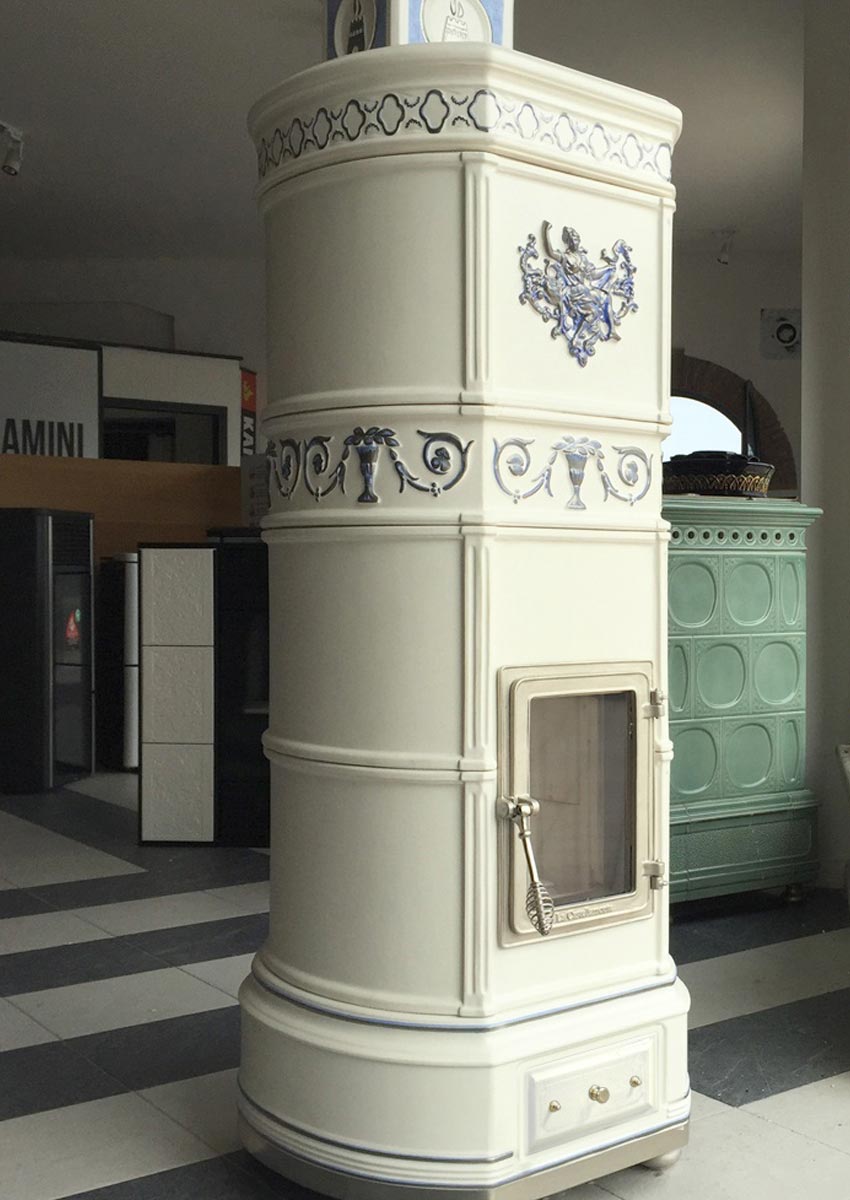

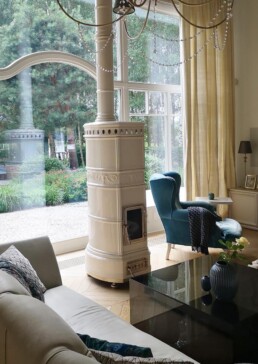

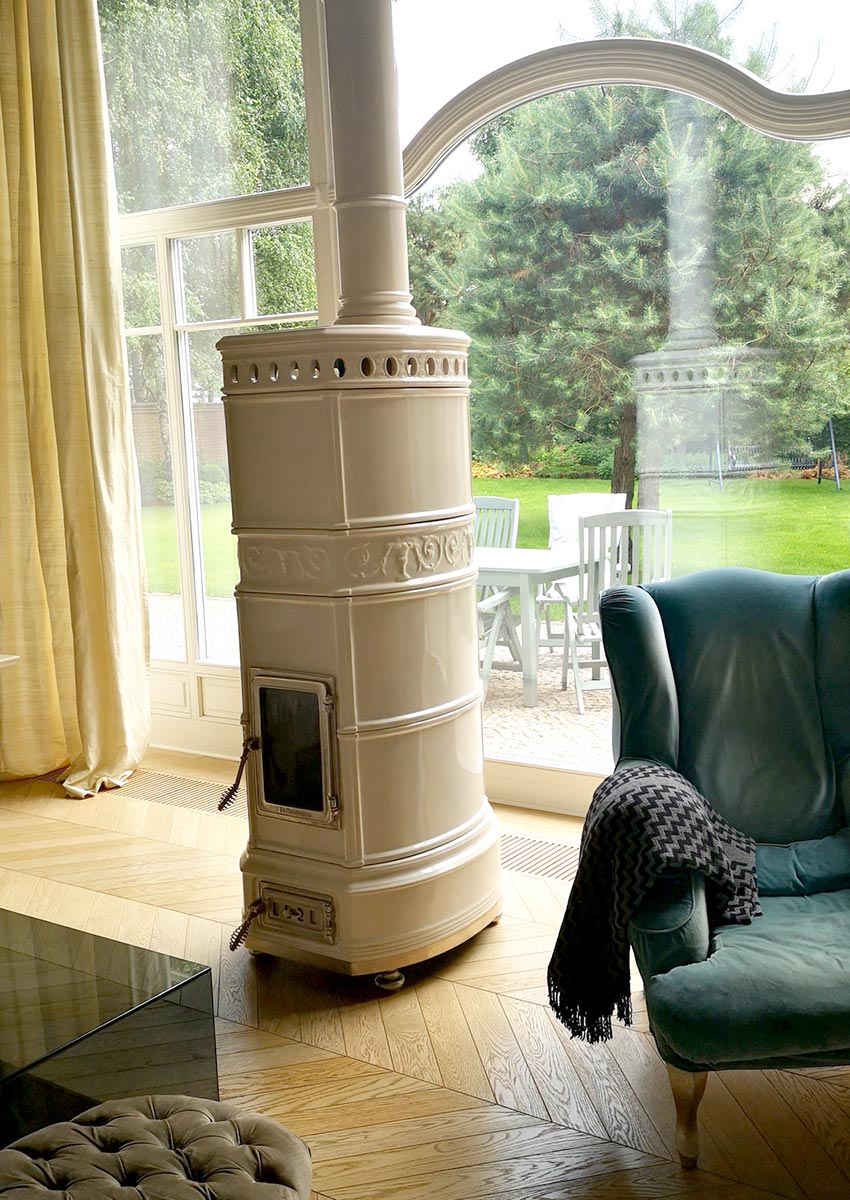

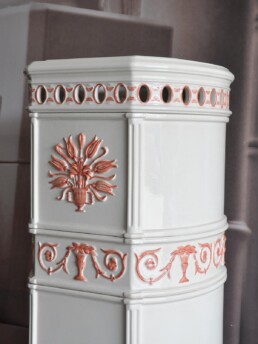

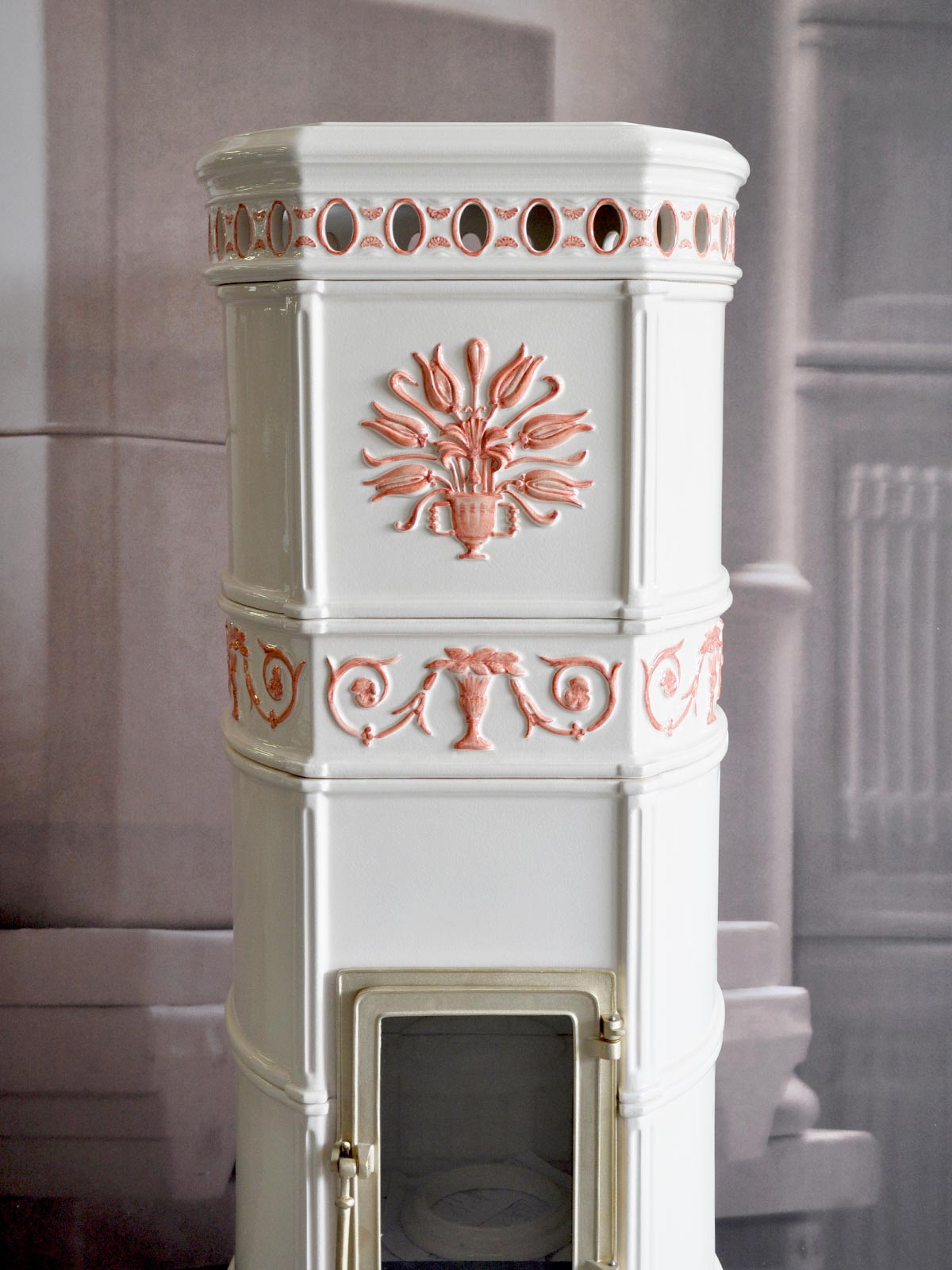

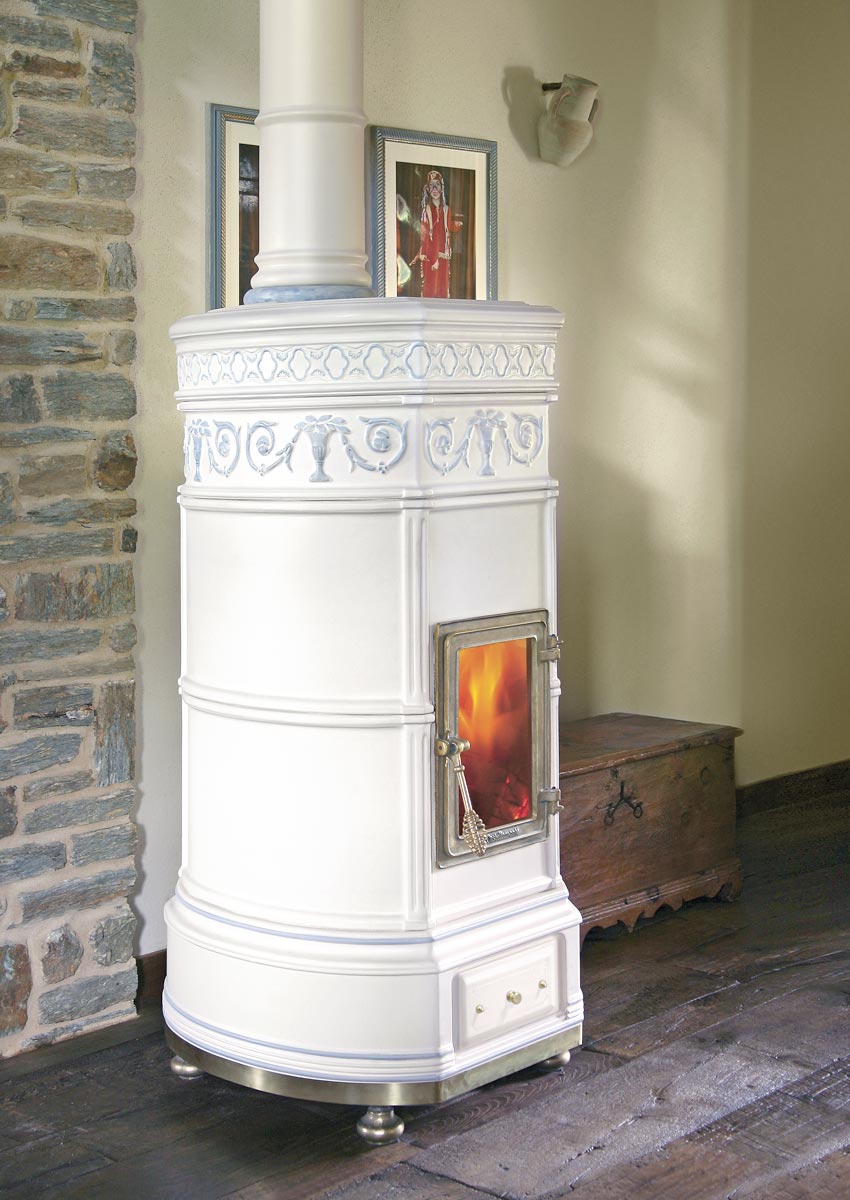

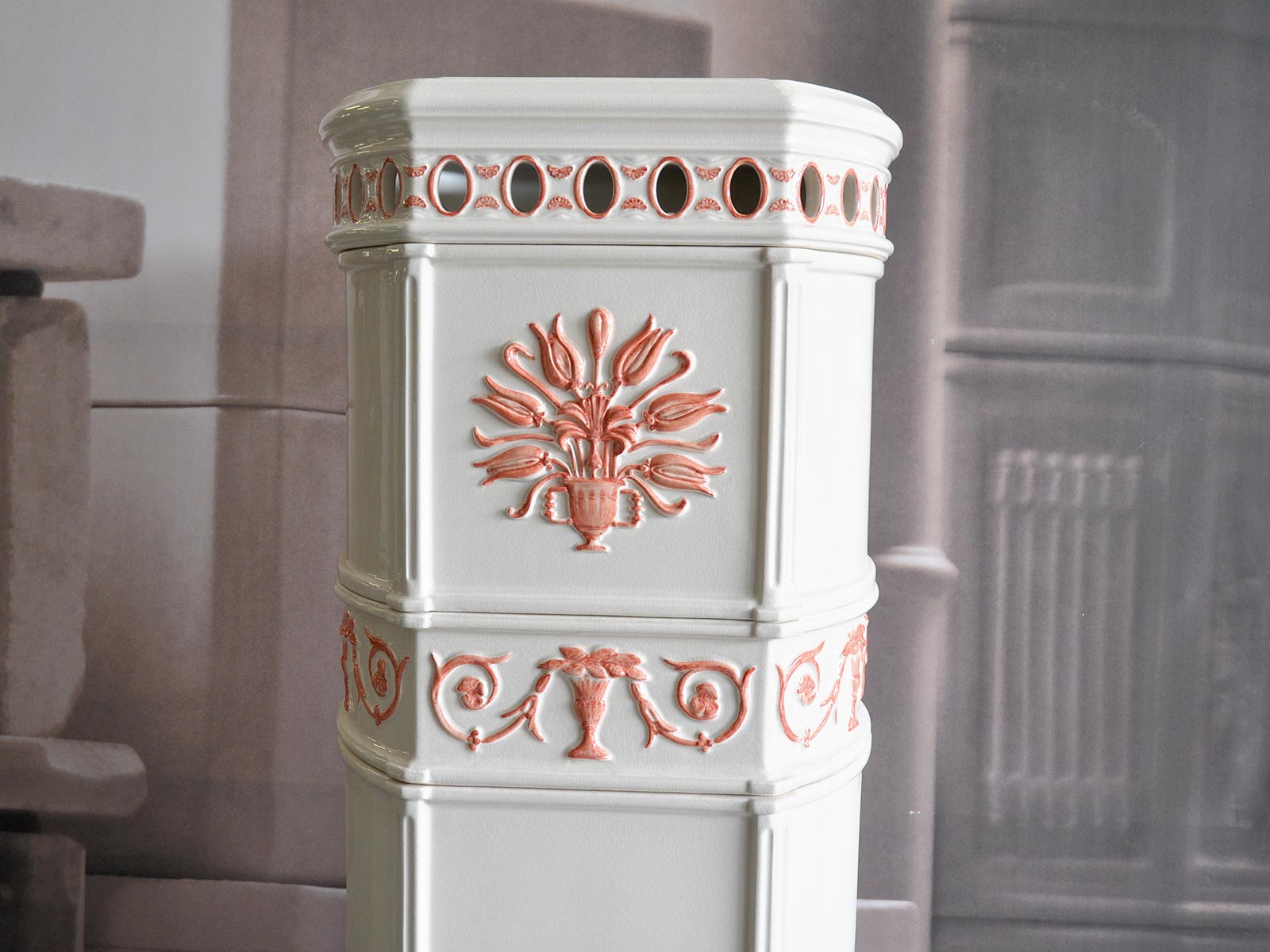

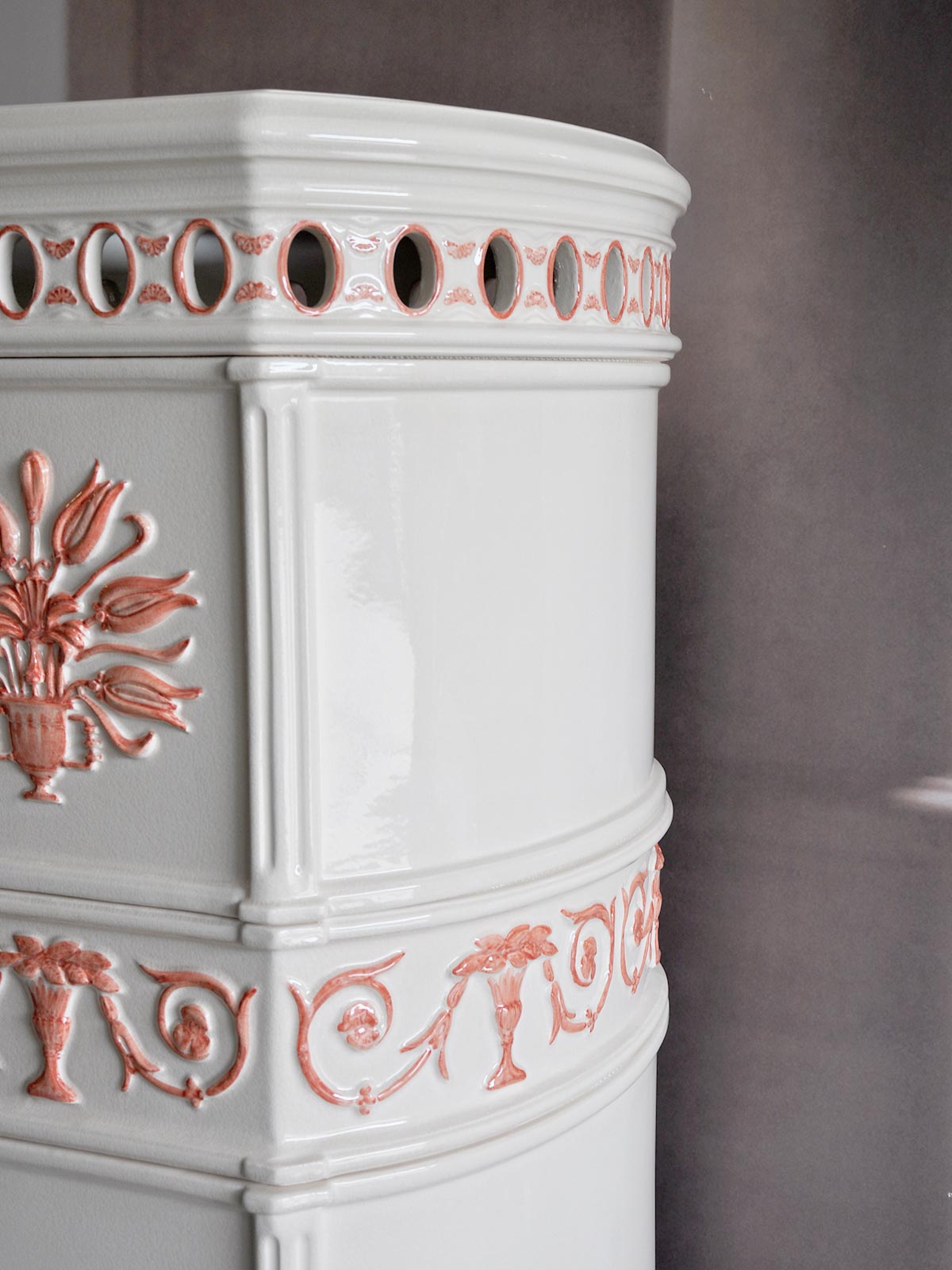

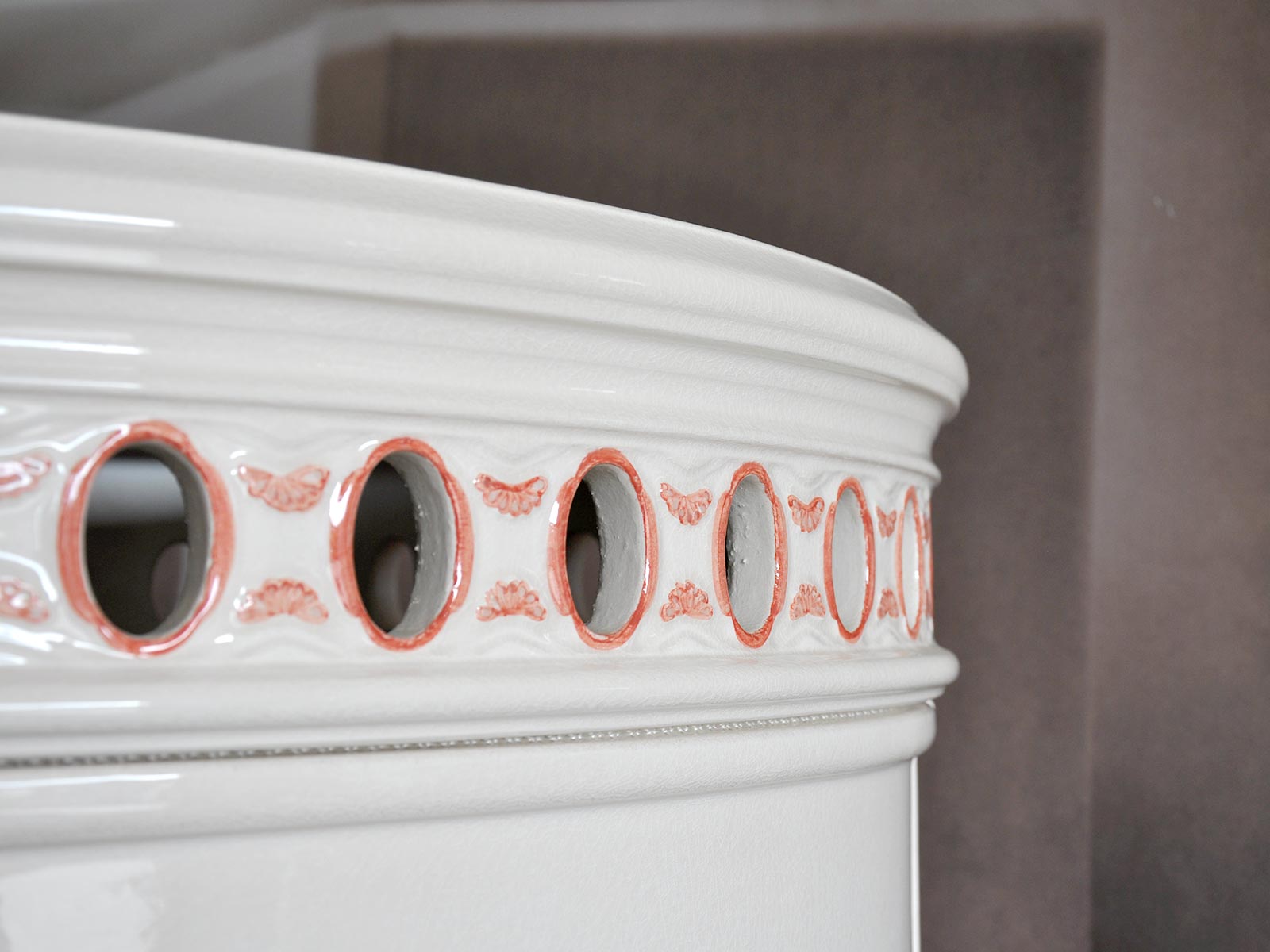

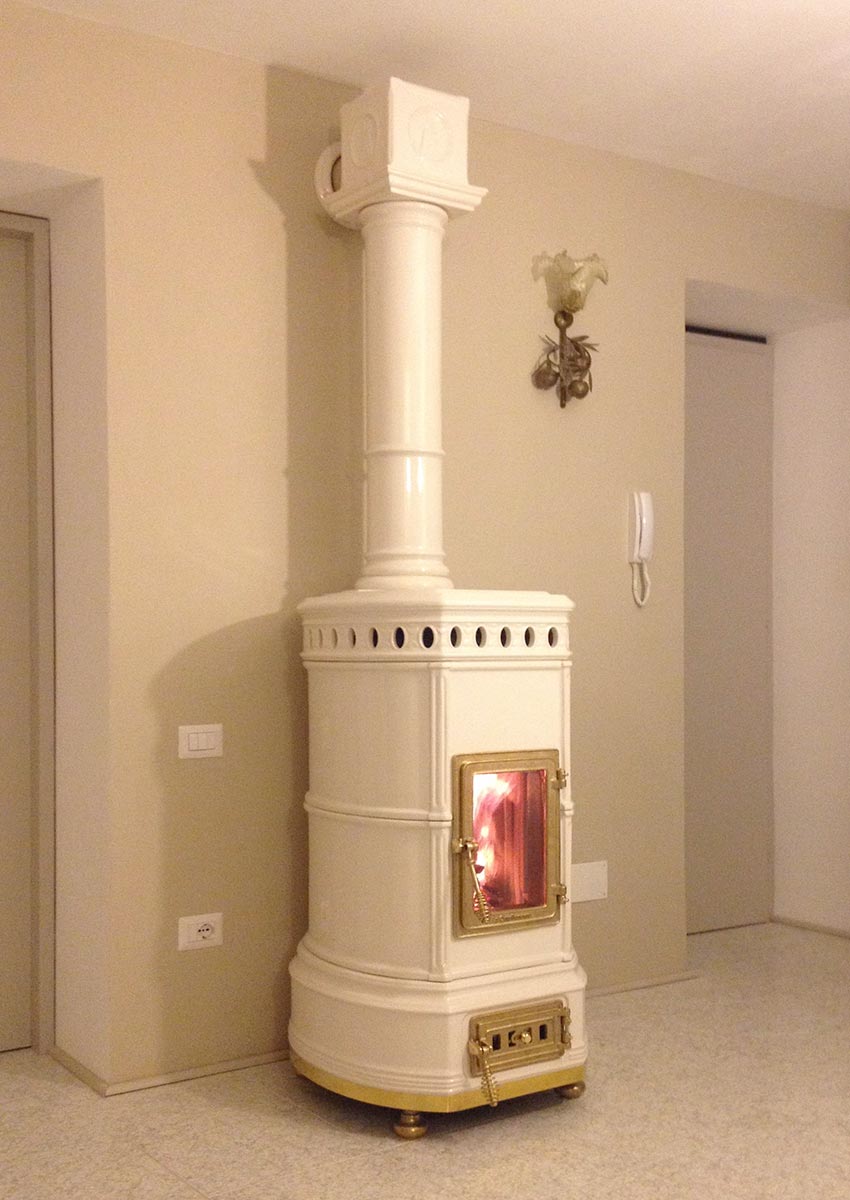

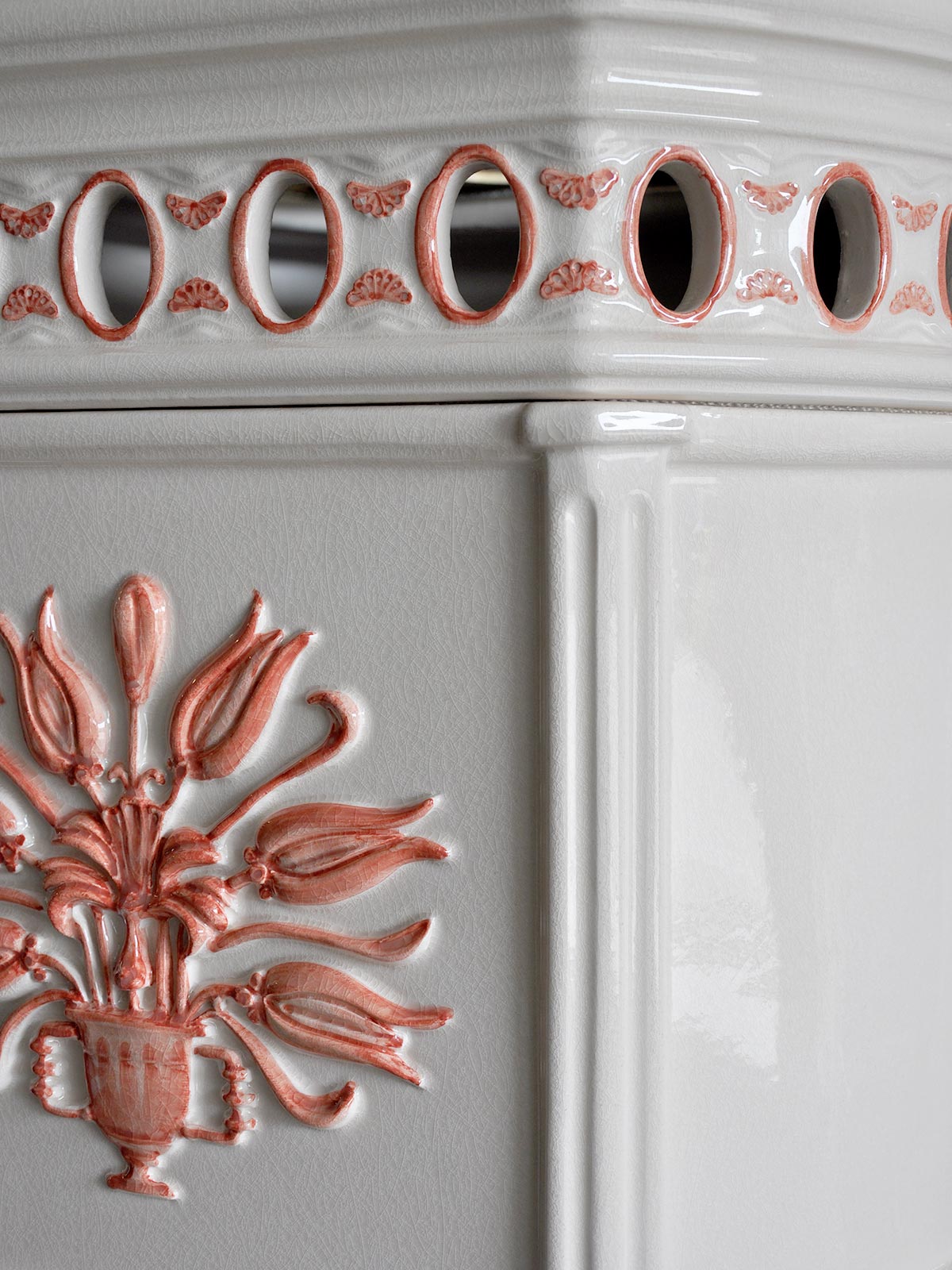

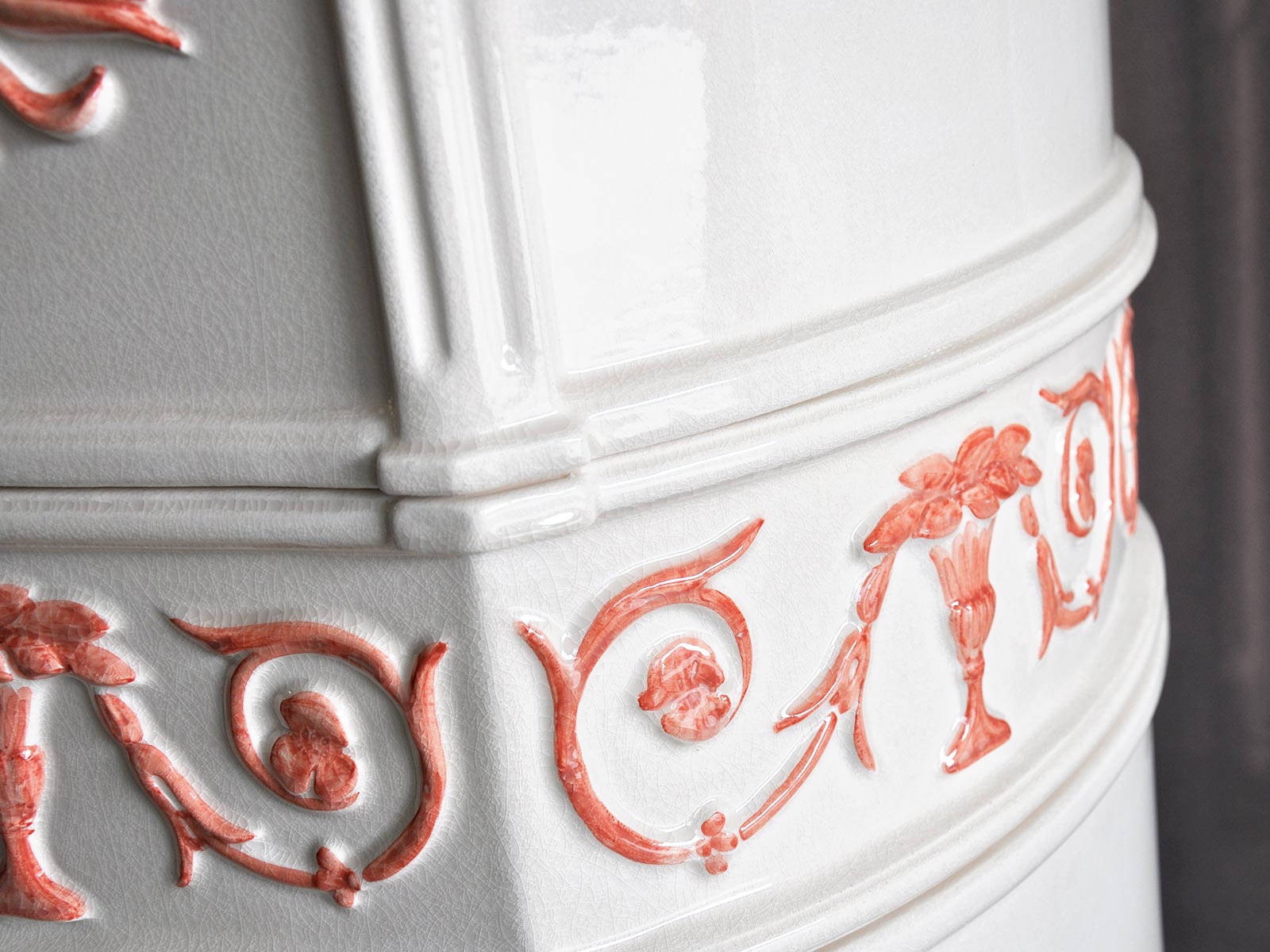

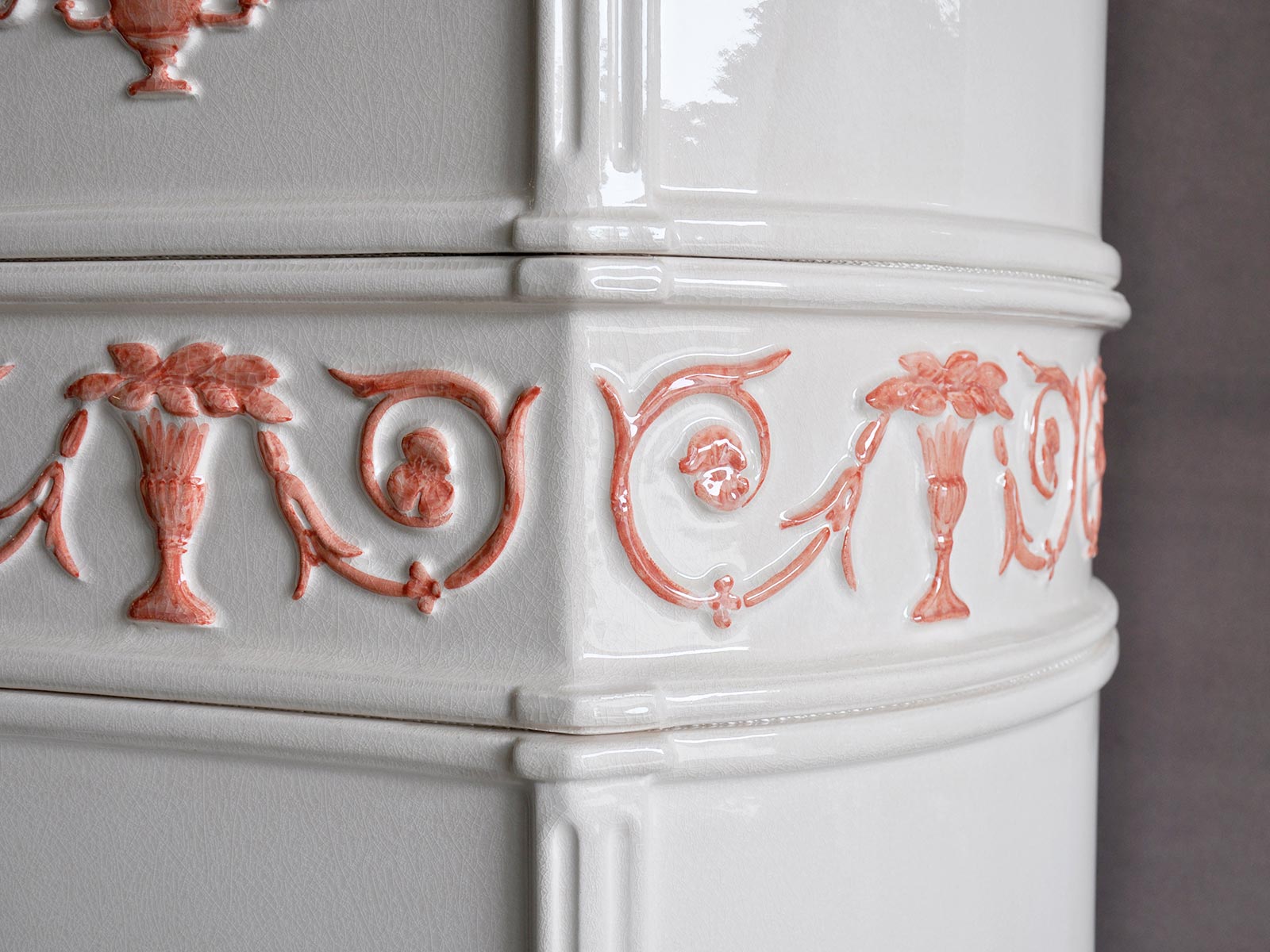

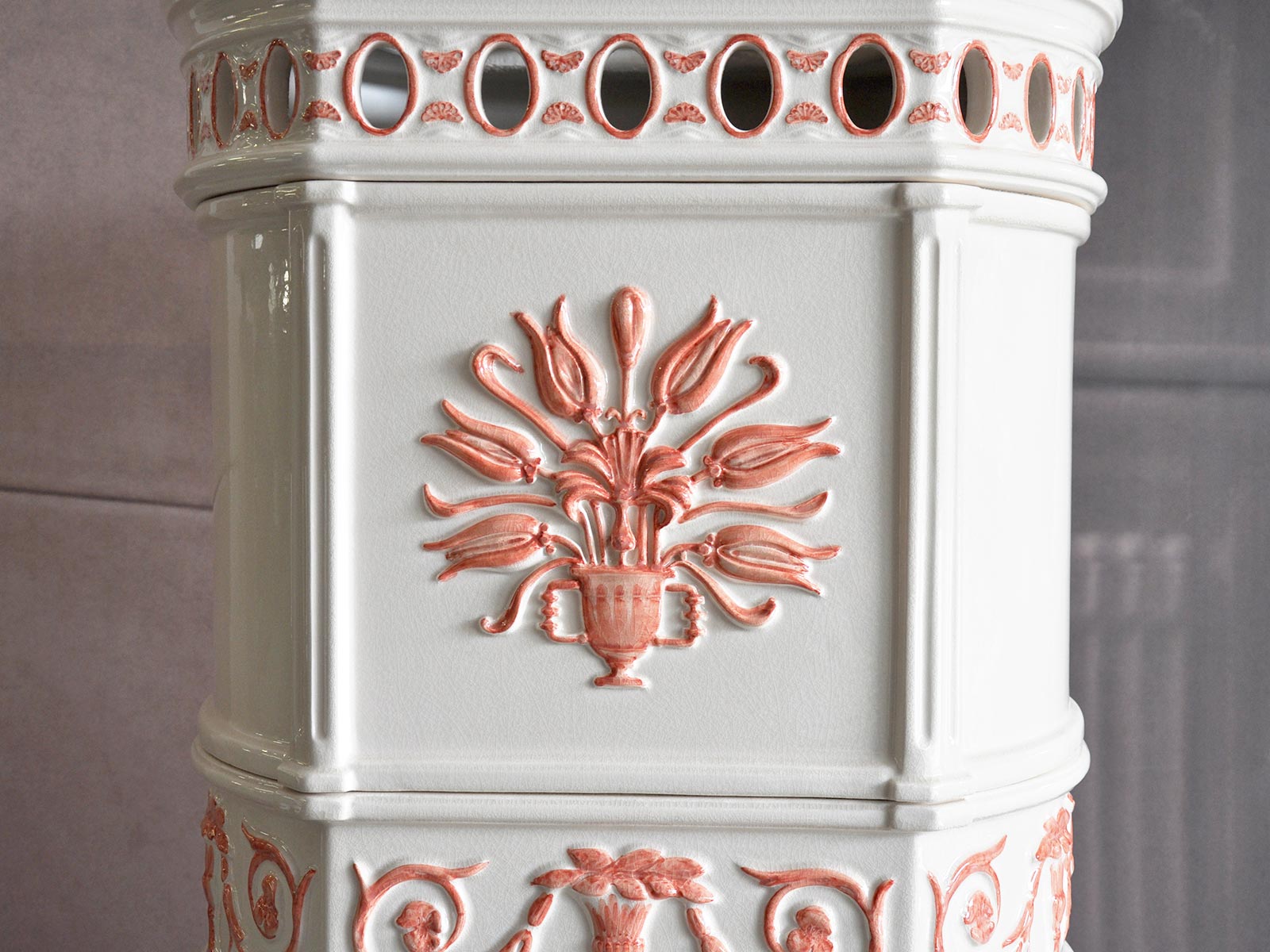

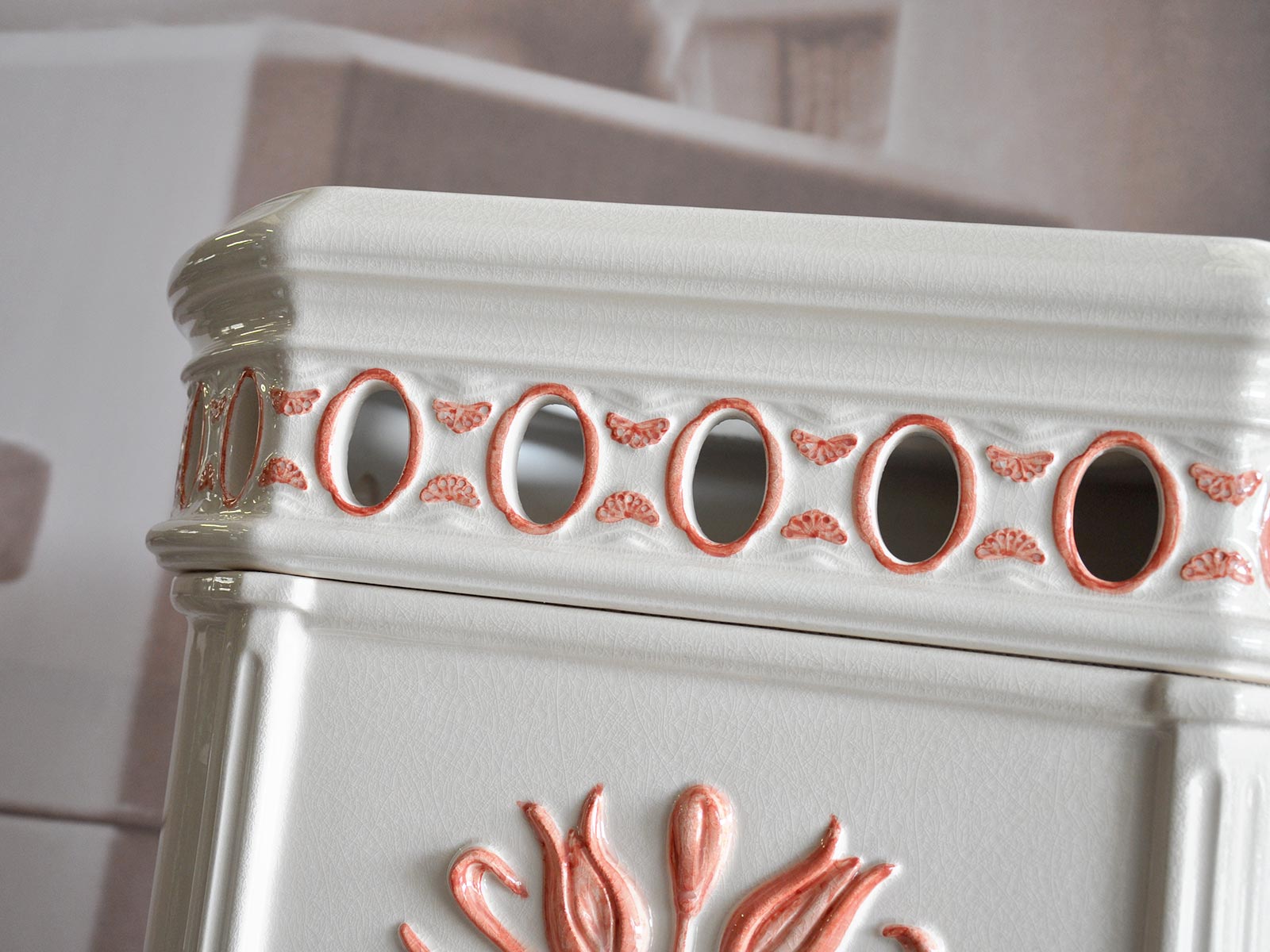

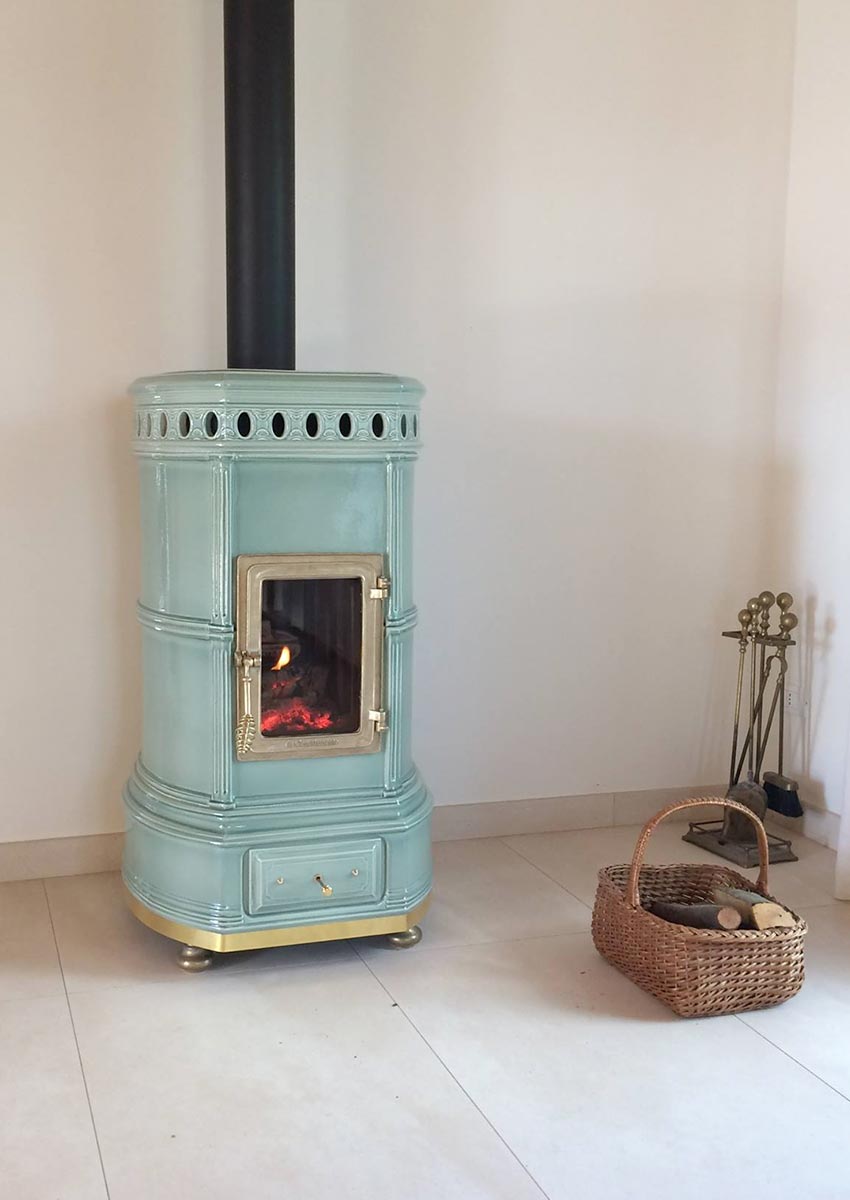

Photogallery
Technical Data

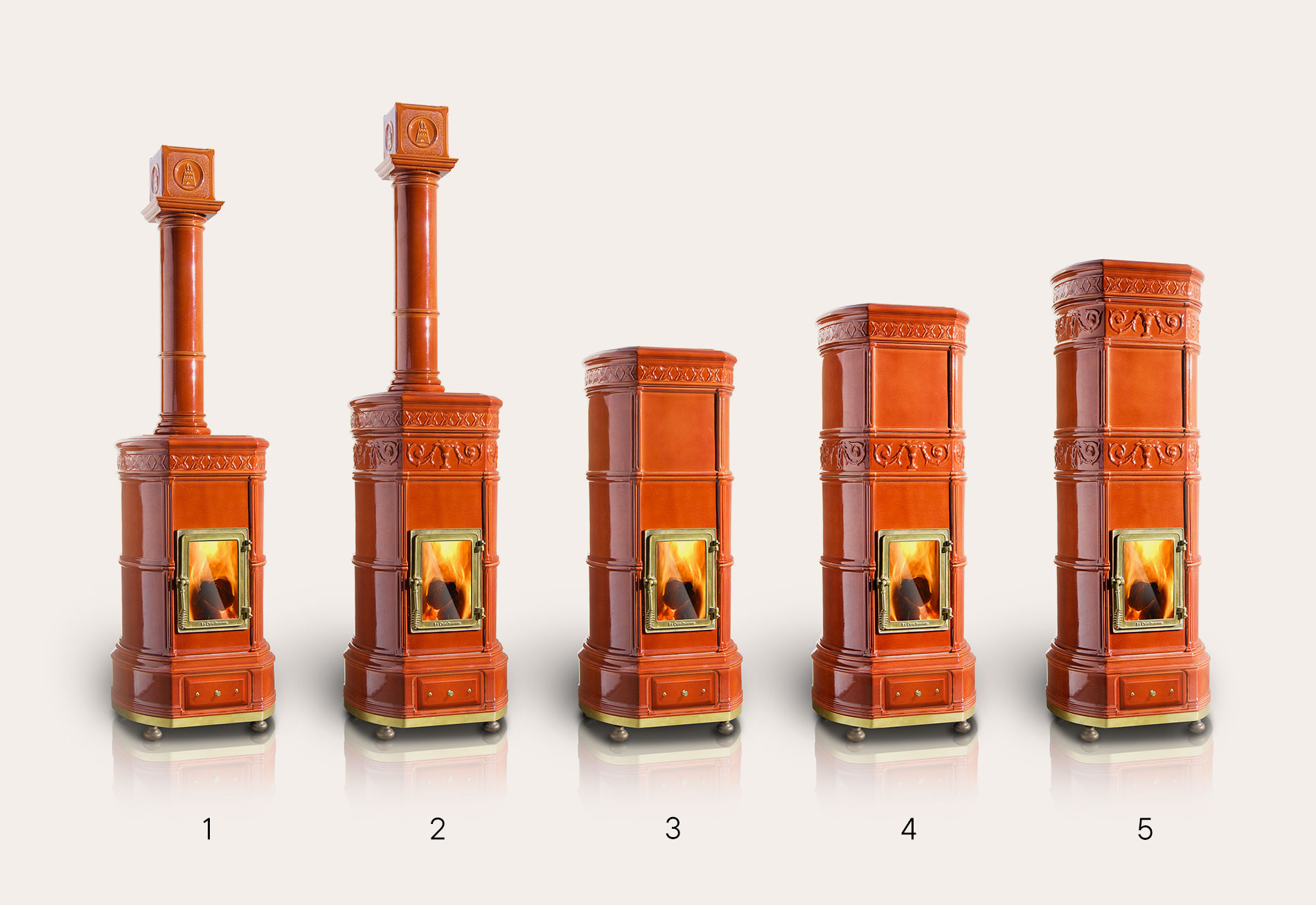

| Sizes | 1° | 2° | 3° | 4° | 5° | |
|---|---|---|---|---|---|---|
| Nominal heat output * | kW | 10 | 11 | 12 | 13 | 13 |
| Min. and max heat output | kW | 5 - 11 | 5 - 12 | 6 - 13 | 6 - 14 | 7 - 15 |
| Heatable volume (Isol. Legge 10/91) ** | m3 | 140 - 310 | 140 - 320 | 170 - 370 | 170 - 400 | 200 - 430 |
| Efficiency | % | 84 | 84 | 85 | 85 | 85 |
| Carbon monoxide emissions % CO 13% O2 | % | 0,05 | 0,06 | 0,07 | 0,08 | 0,08 |
| Dust 13% O2 | mg/Nm3 | 27 | 14 | 18 | 21 | 22 |
| Wood consumption | Kg/h | 2,6 | 2,7 | 3 | 3,2 | 3,2 |
| Smoke temperature | °C | 243 | 250 | 253 | 255 | 260 |
| Smoke exit diameter | cm | 15 | 15 | 15 | 15 | 15 |
| Drafts | Pa | 12 | 12 | 12 | 12 | 12 |
| Total weight | Kg | 345 | 380 | 410 | 430 | 450 |

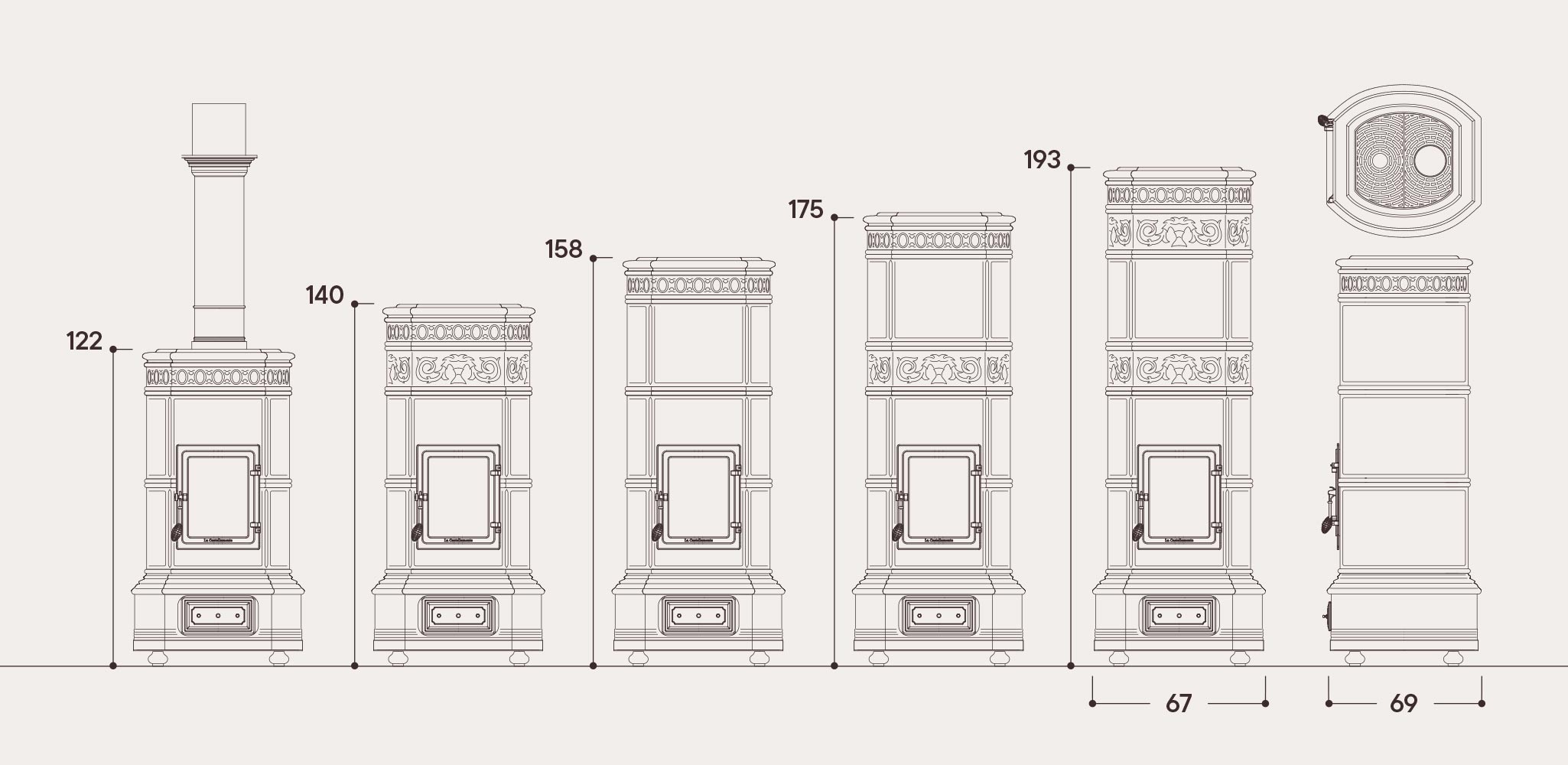

| Dimensions ( W x D x H ) | cm | 67 x 69 x 122 | 6 7x 69 x 140 | 67 x 69 x 158 | 67 x 69 x 175 | 67 x 69 x 193 |
* Complies with EN 13240 | DEUTSCHLAND BimSchV 2
** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.
For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.
