Vienna

Wood combustion

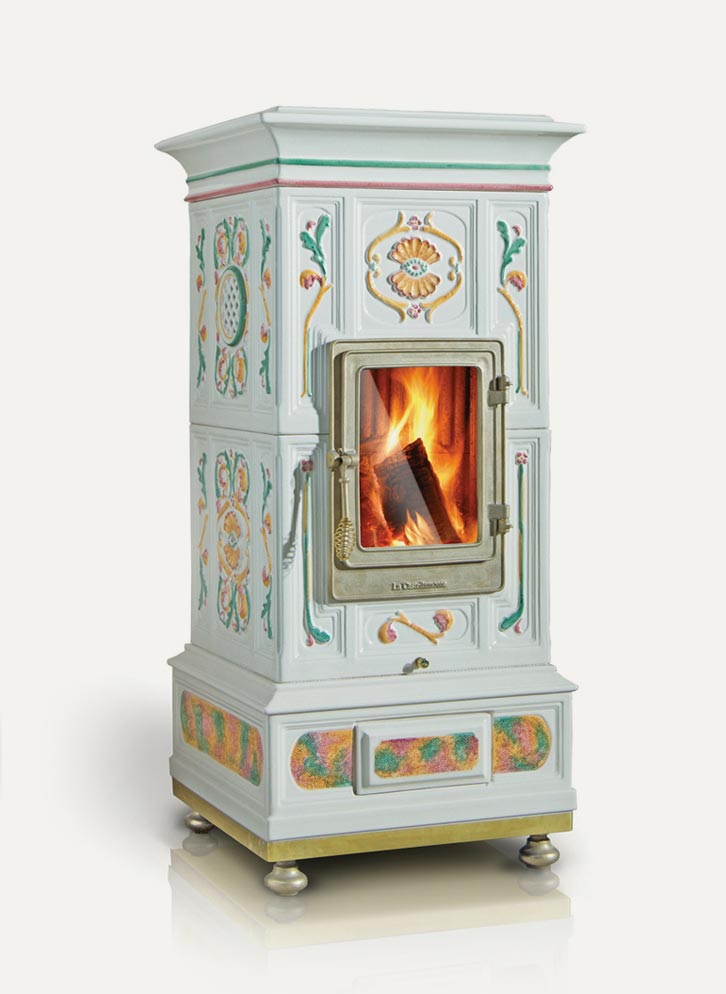

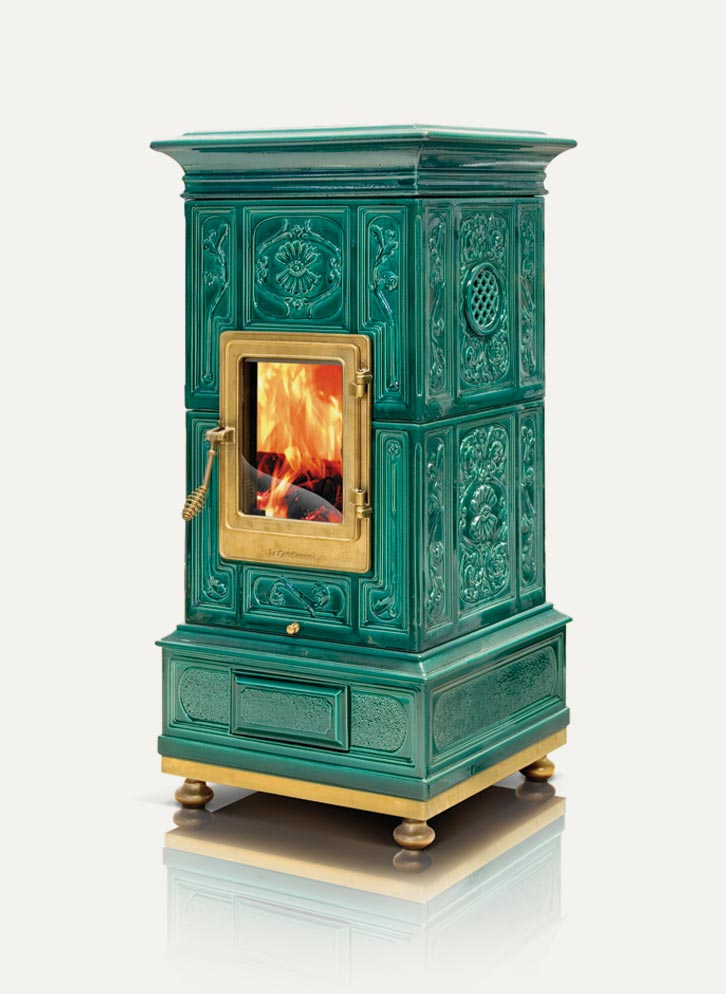

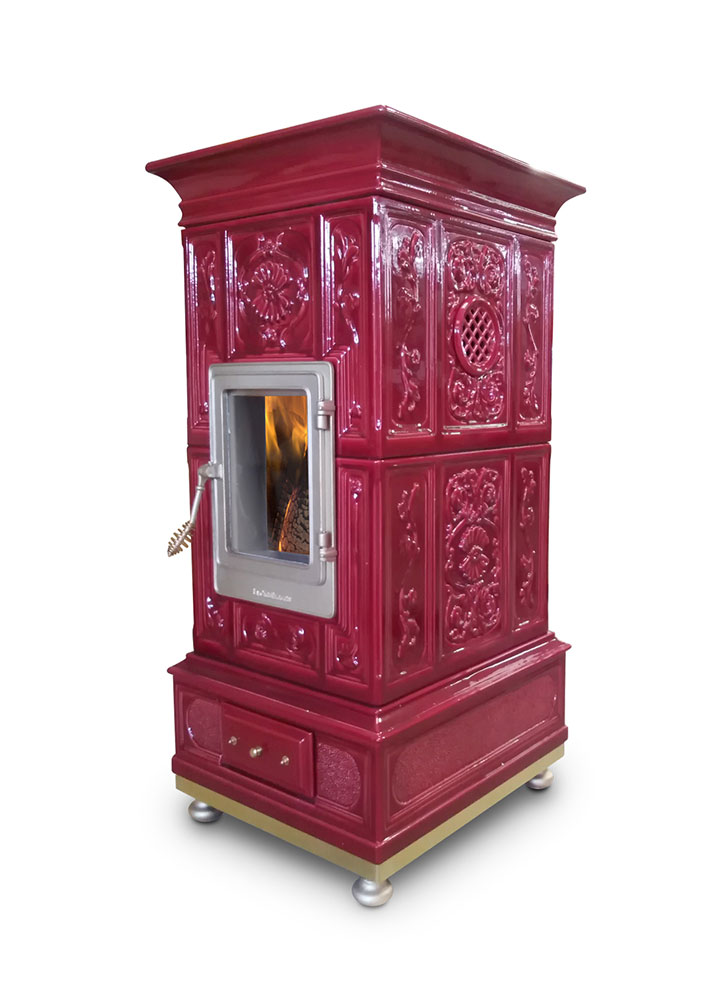

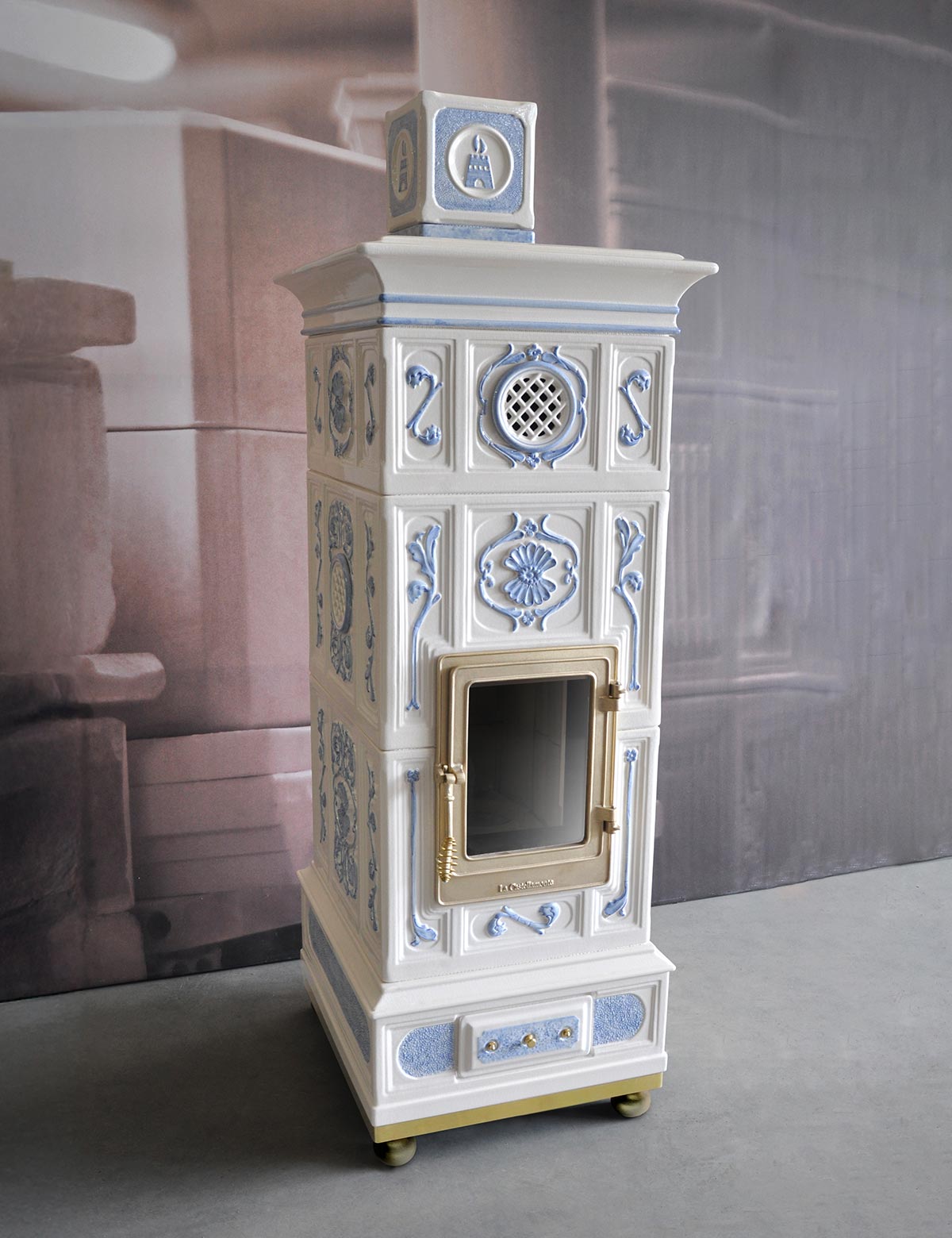

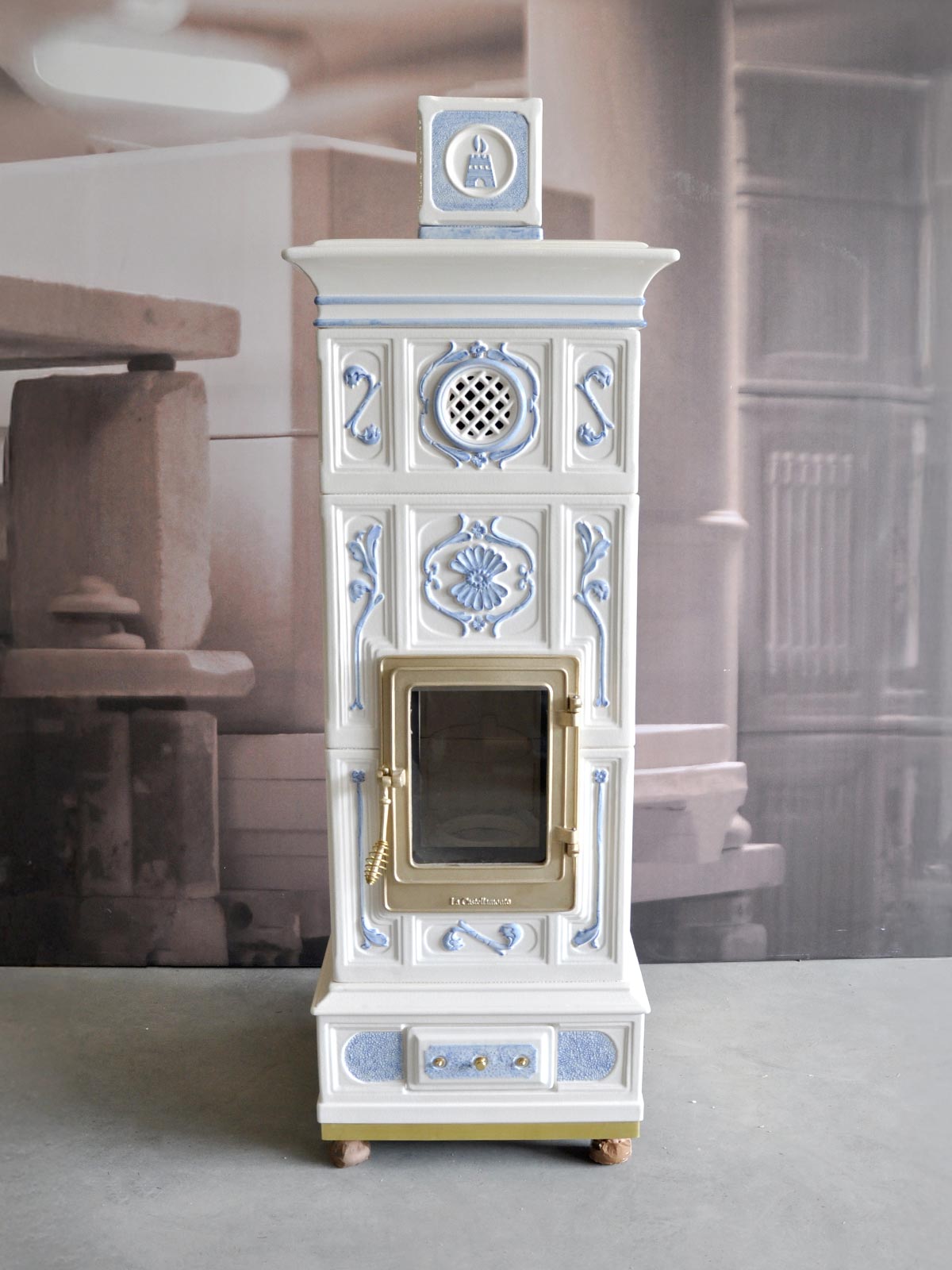

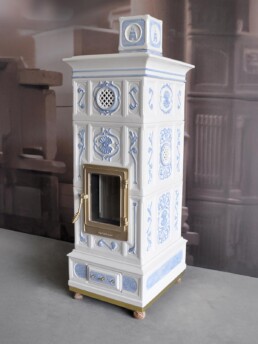

Vienna is the flagship of our production.

Suitable for large heatable volumes, it can also be used as waterstove.

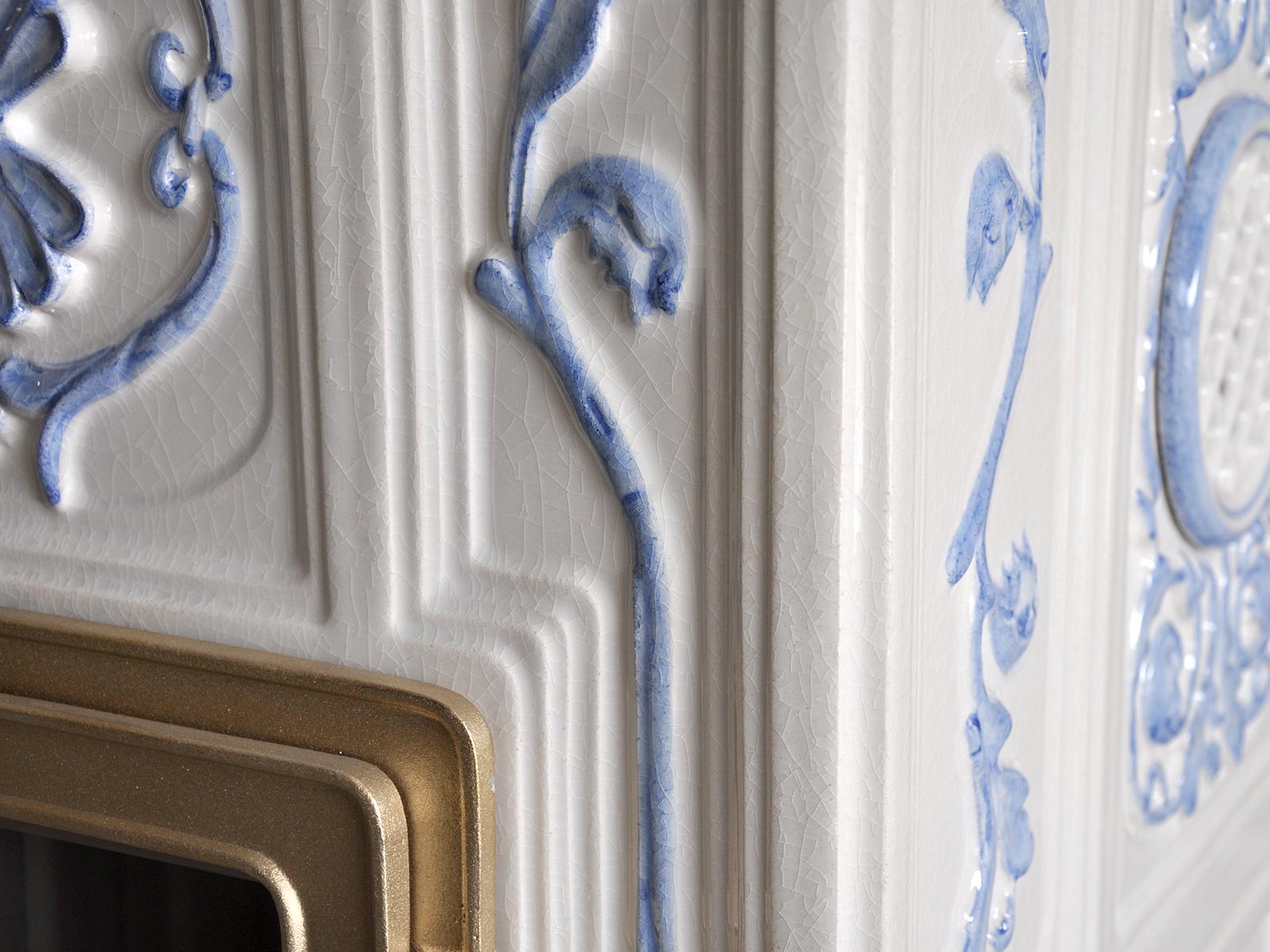

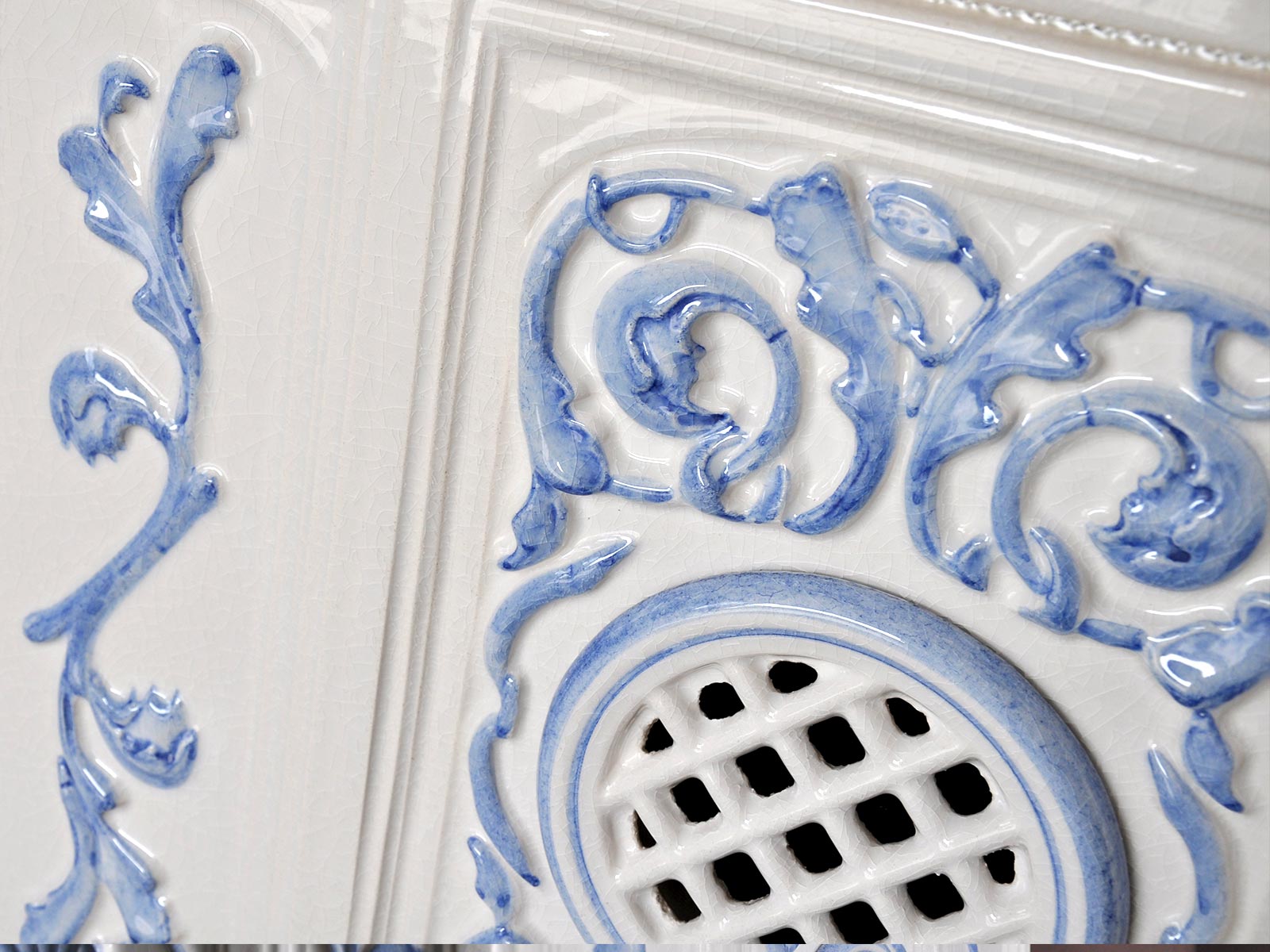

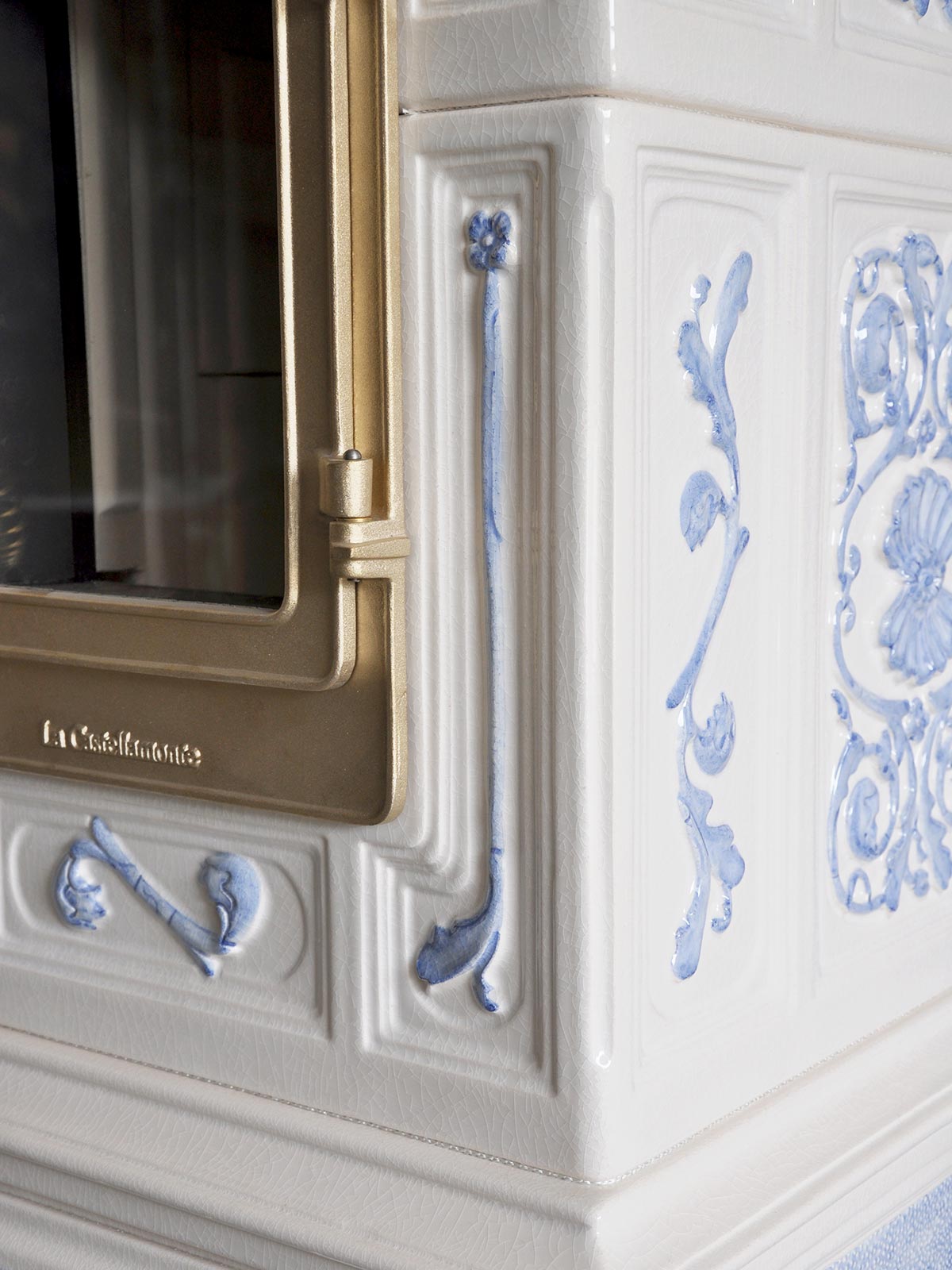

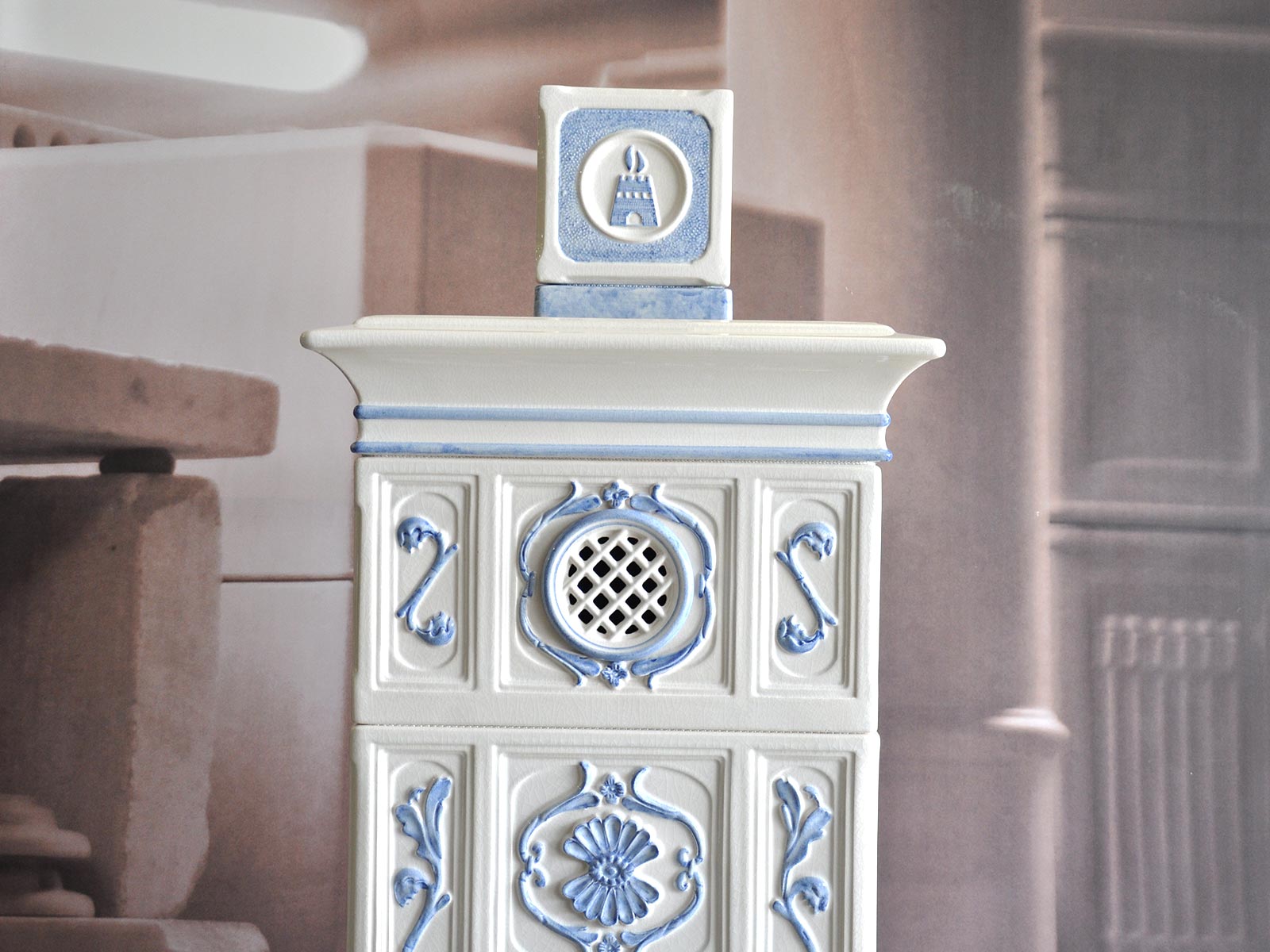

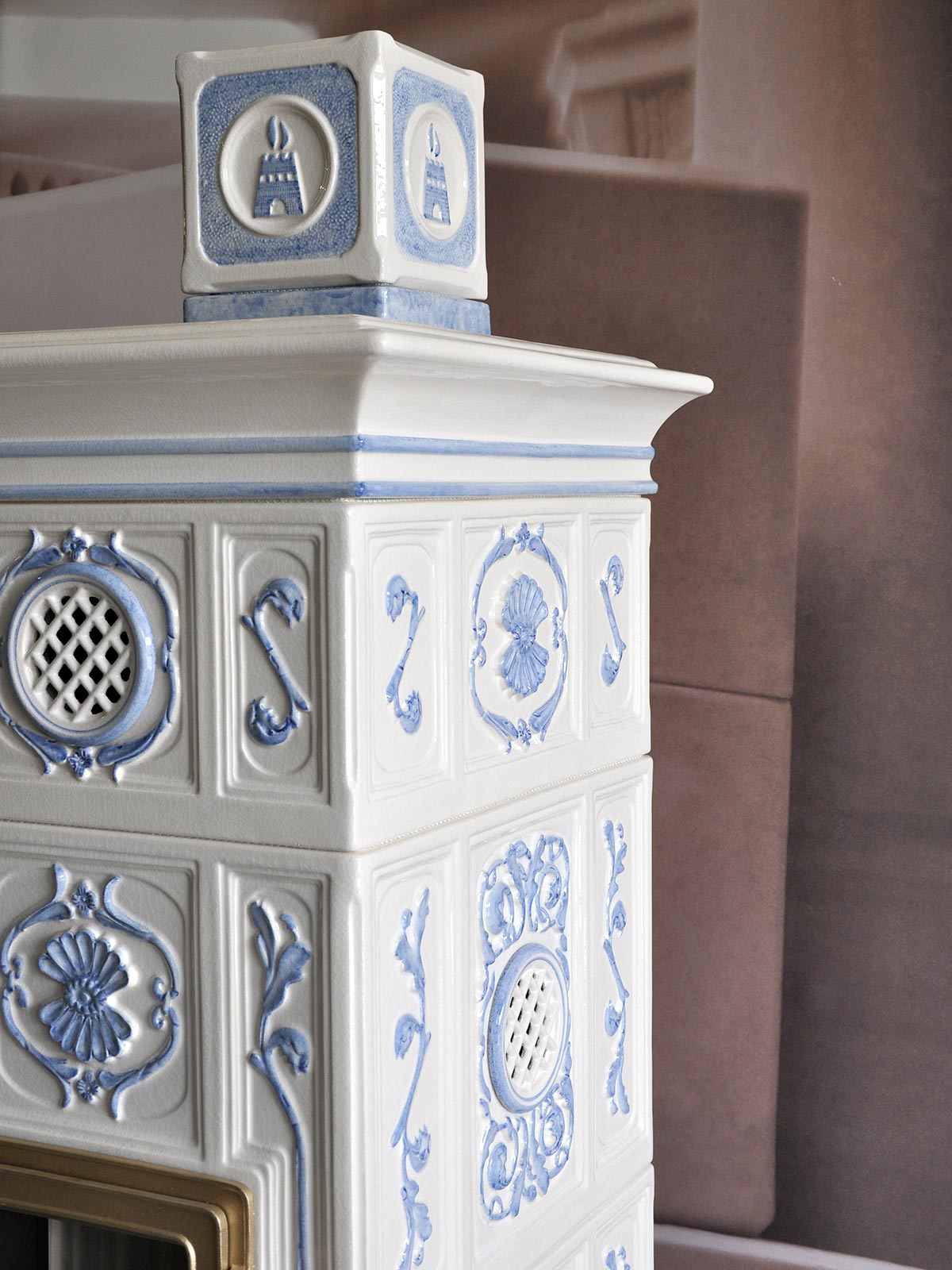

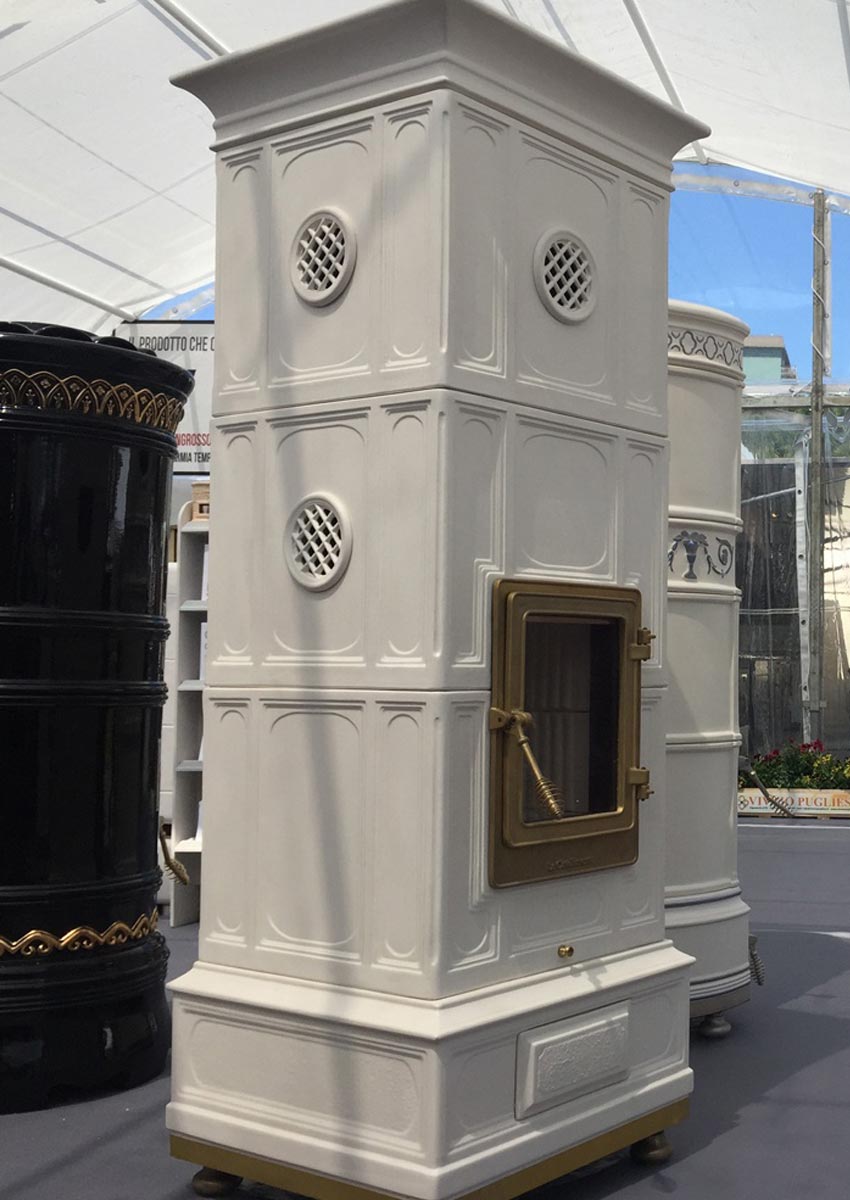

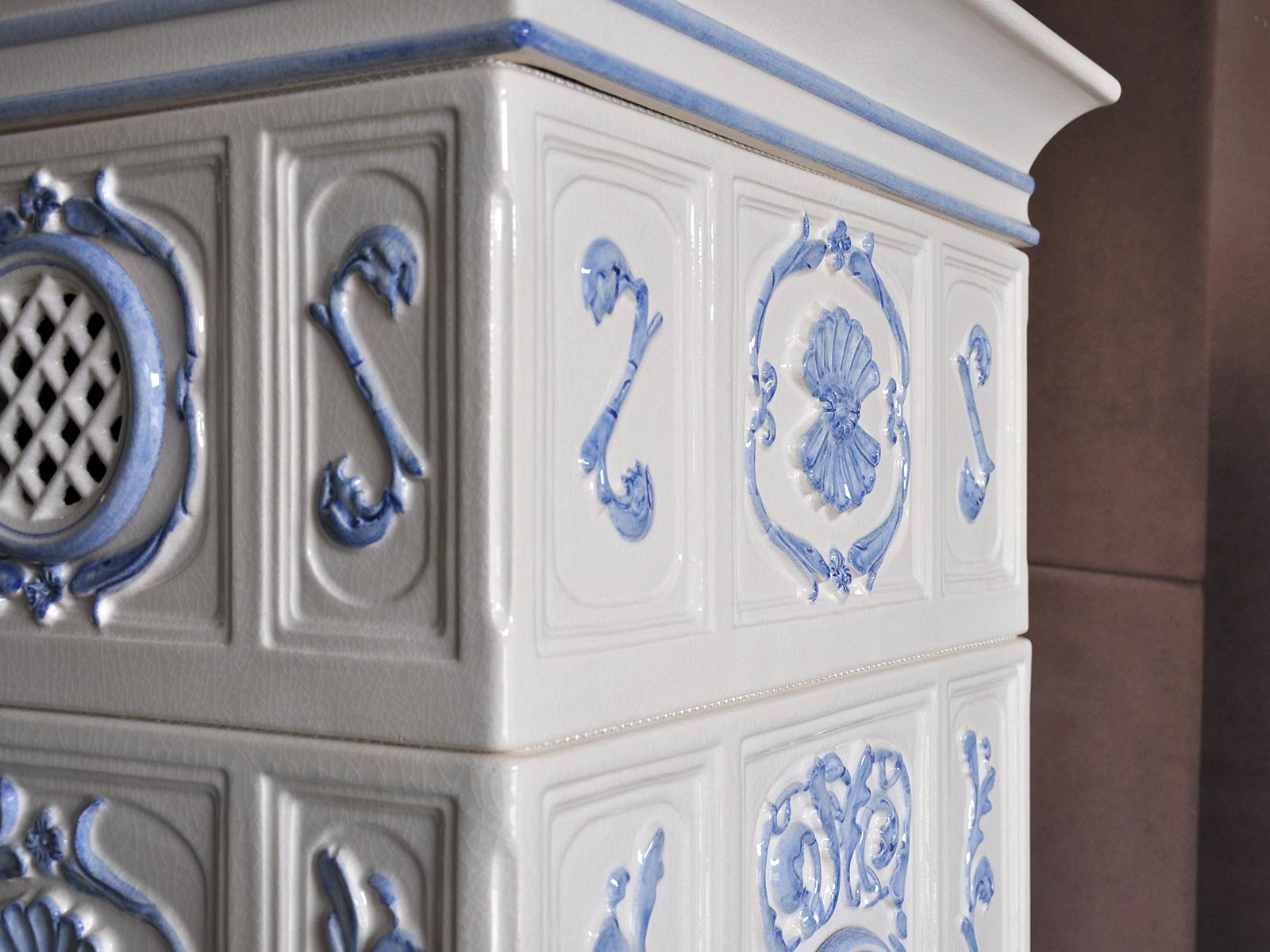

Classic, linear, square-shaped, fits harmoniously into any type of environment. It is available in two sizes, with standard door or with Great Fire door, and with two options forceramic coating: with a rich ornament or with smooth surface.

To know the certifications of this stove click HERE

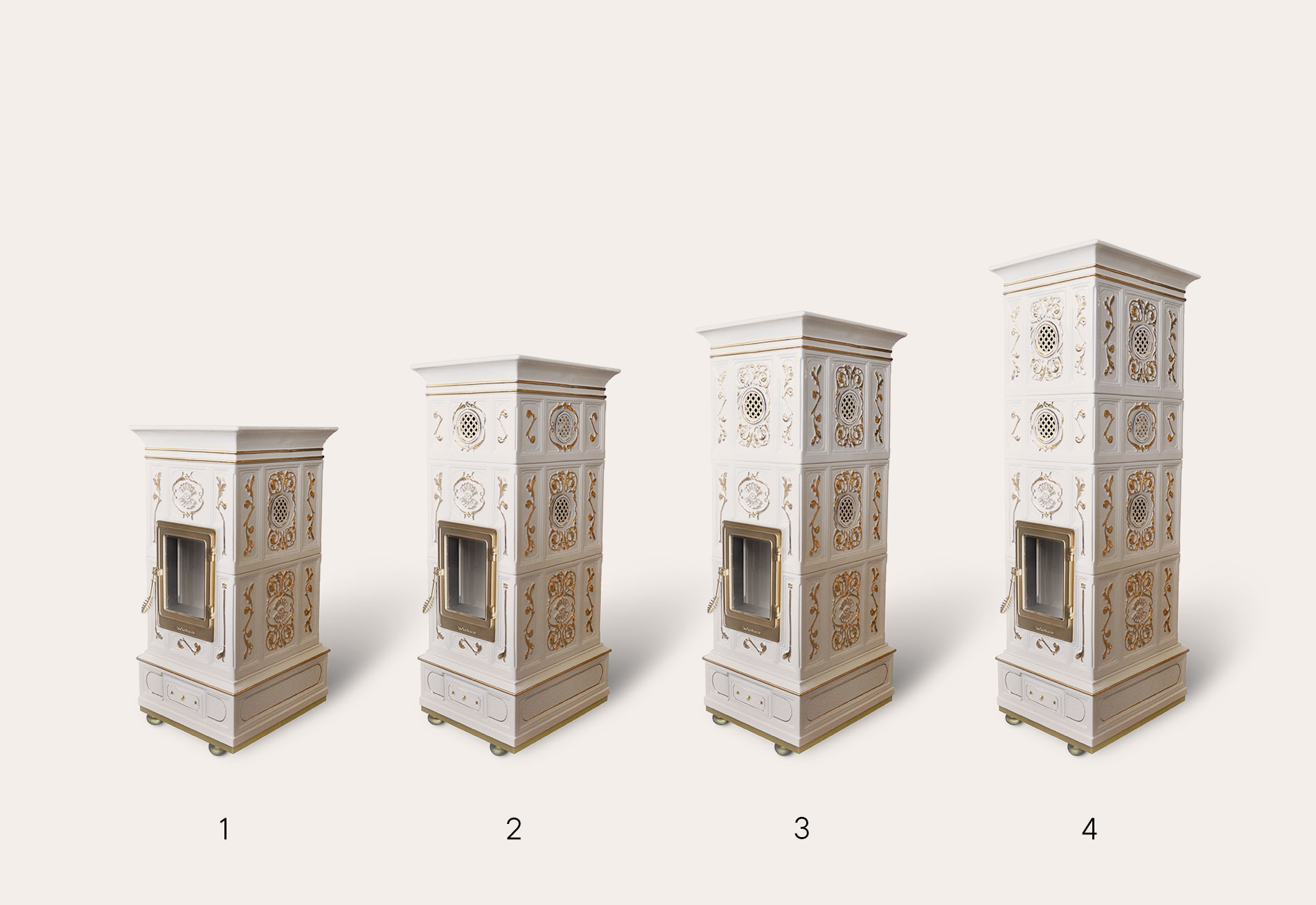

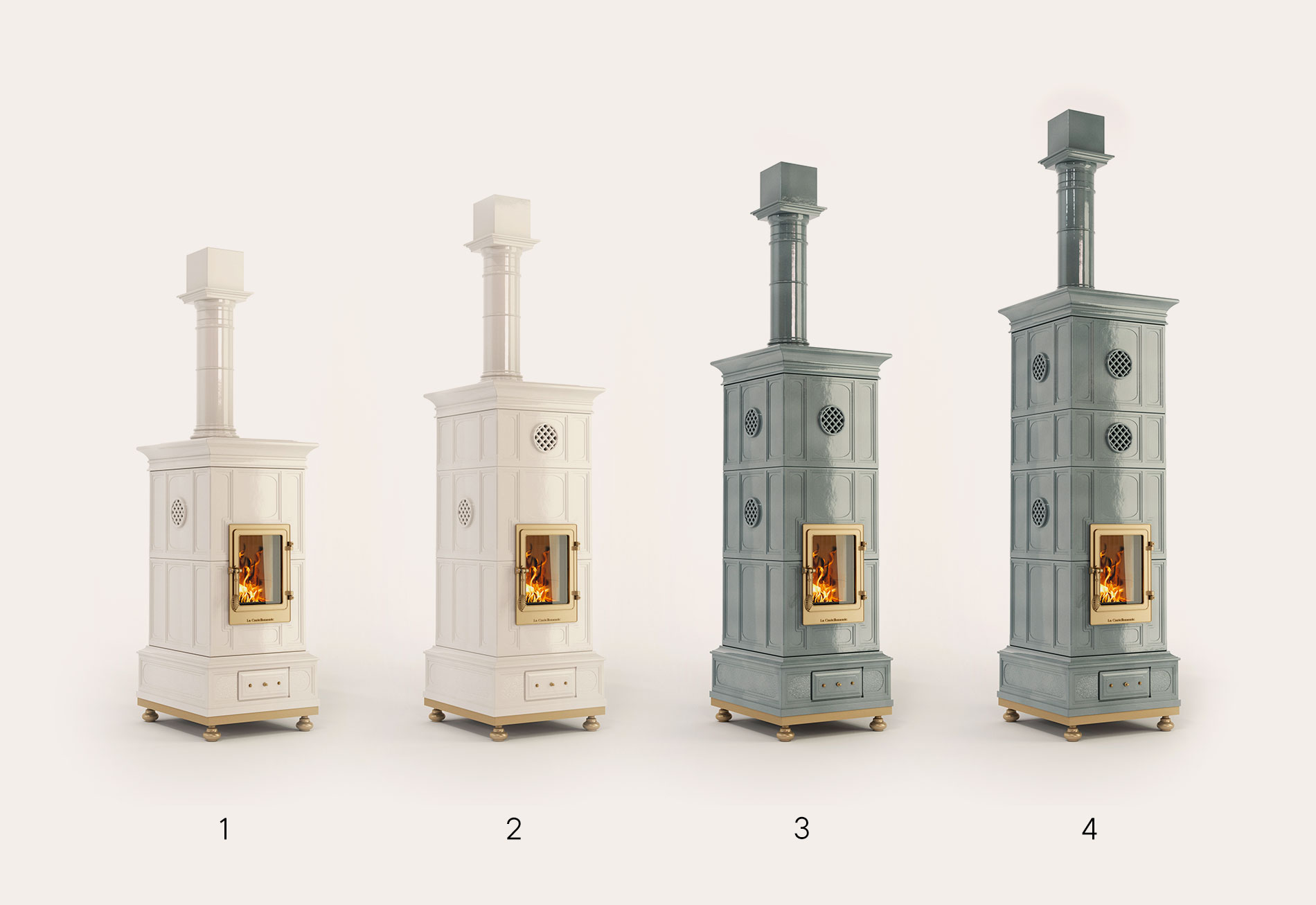

Models and sizes

Technical Data

SIze 1234
Smoke exit diametercm15151515
DraftPa12121212
Nominal heat output *kW11121313
Min. and max heat outputkW5 - 126 - 136 - 147 - 15
Efficiency%84858585
Wood consumptionKg/h2,733,23,2
Smoke temperature°C250253255255
Carbon monoxide emissions % CO 13% O2%0,060,070,080,08
Heatable volume (Isol. Legge 10/91) **m3140 - 320170 - 370170 - 400200 - 430
Dust 13% O2mg/Nm314182121
Total weightKg390440470550

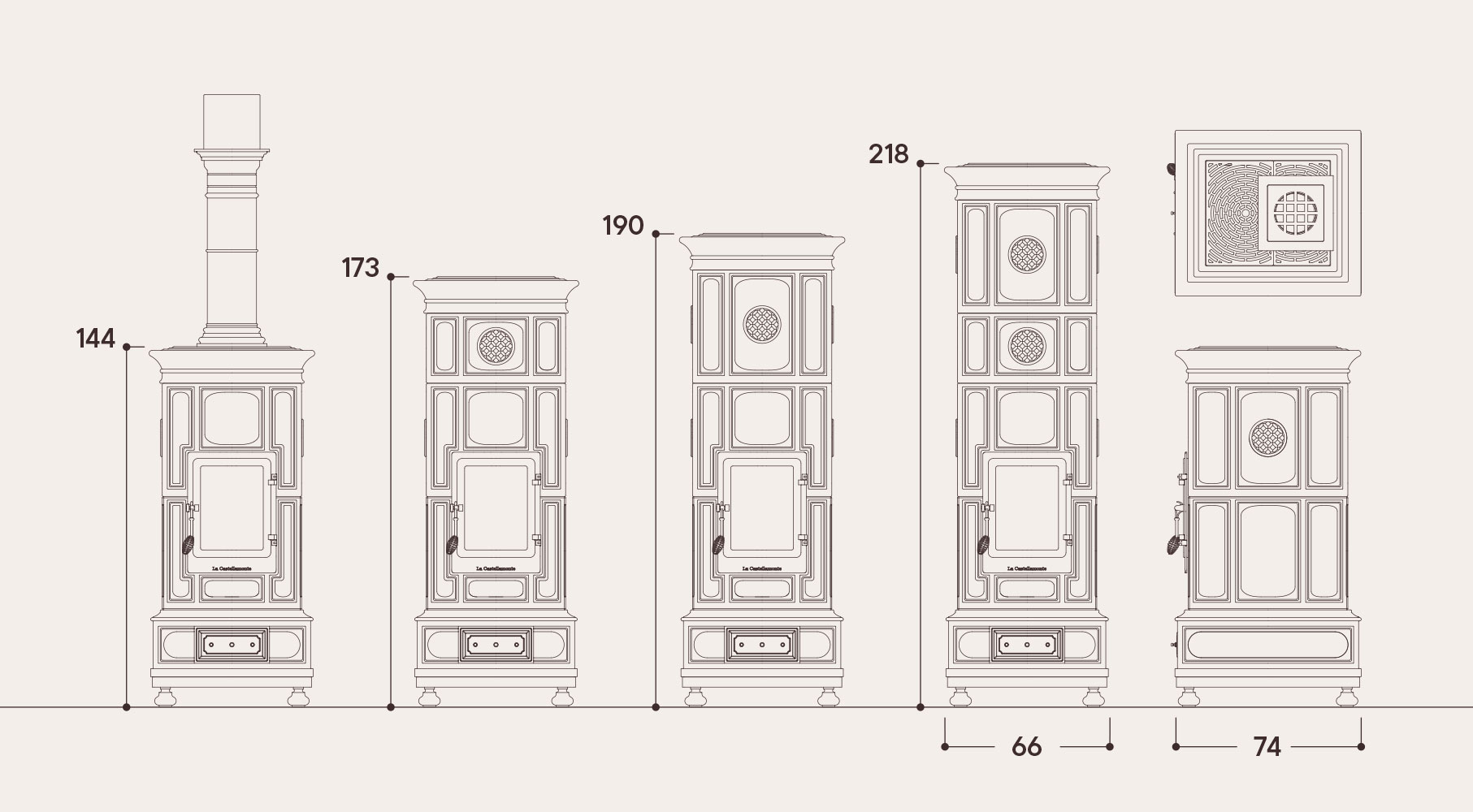

Dimensions ( W x D x H )cm66 x 74 x 14466 x 74 x 17266 x 74 x 19066 x 74 x 218

* Complies with EN 13240 | DEUTSCHLAND BimSchV 2

** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.

Standard Door Measurements
Door: 22 x 22 cm
Fireplace: 33 x 36 x 42 cm

Great Fire Door Measurements
Door:22 x 32 cm
Fireplace: 33 x 36 x 120 cm

Wood length:
30-35 cm

For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.

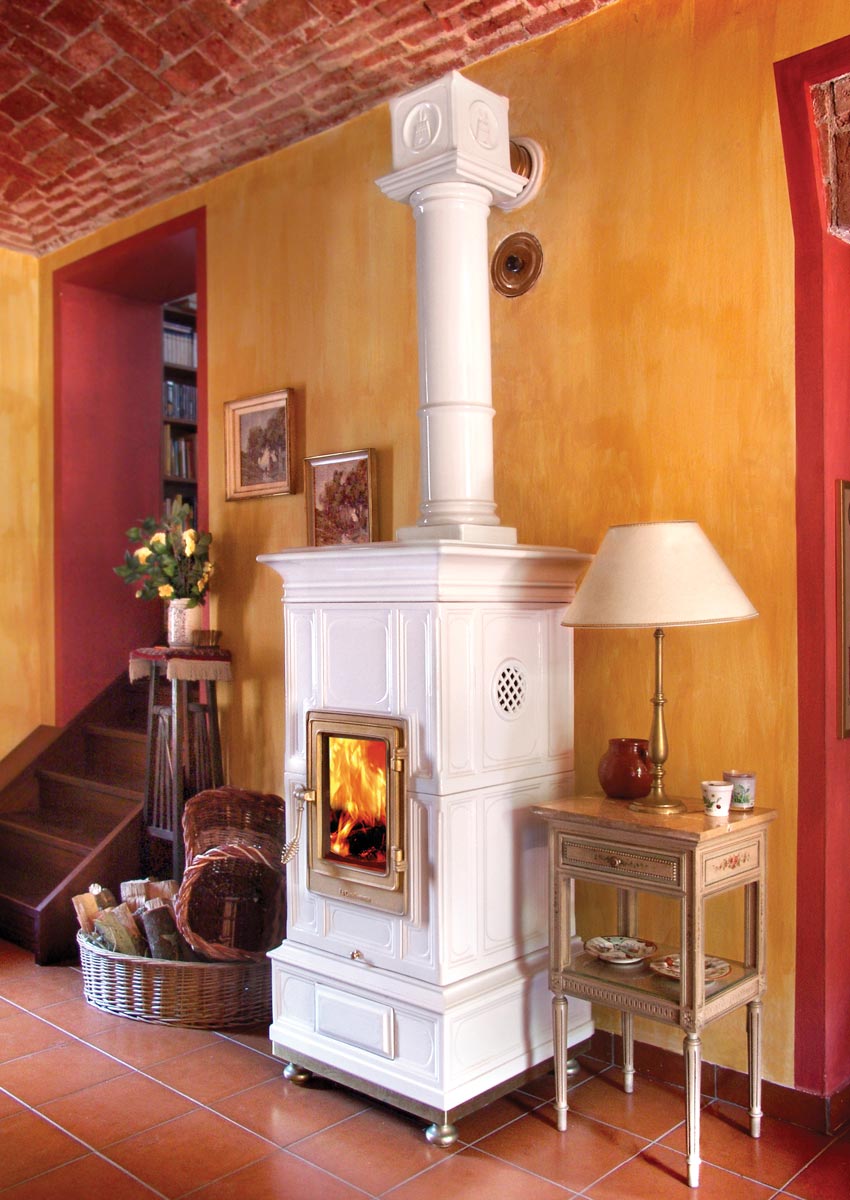

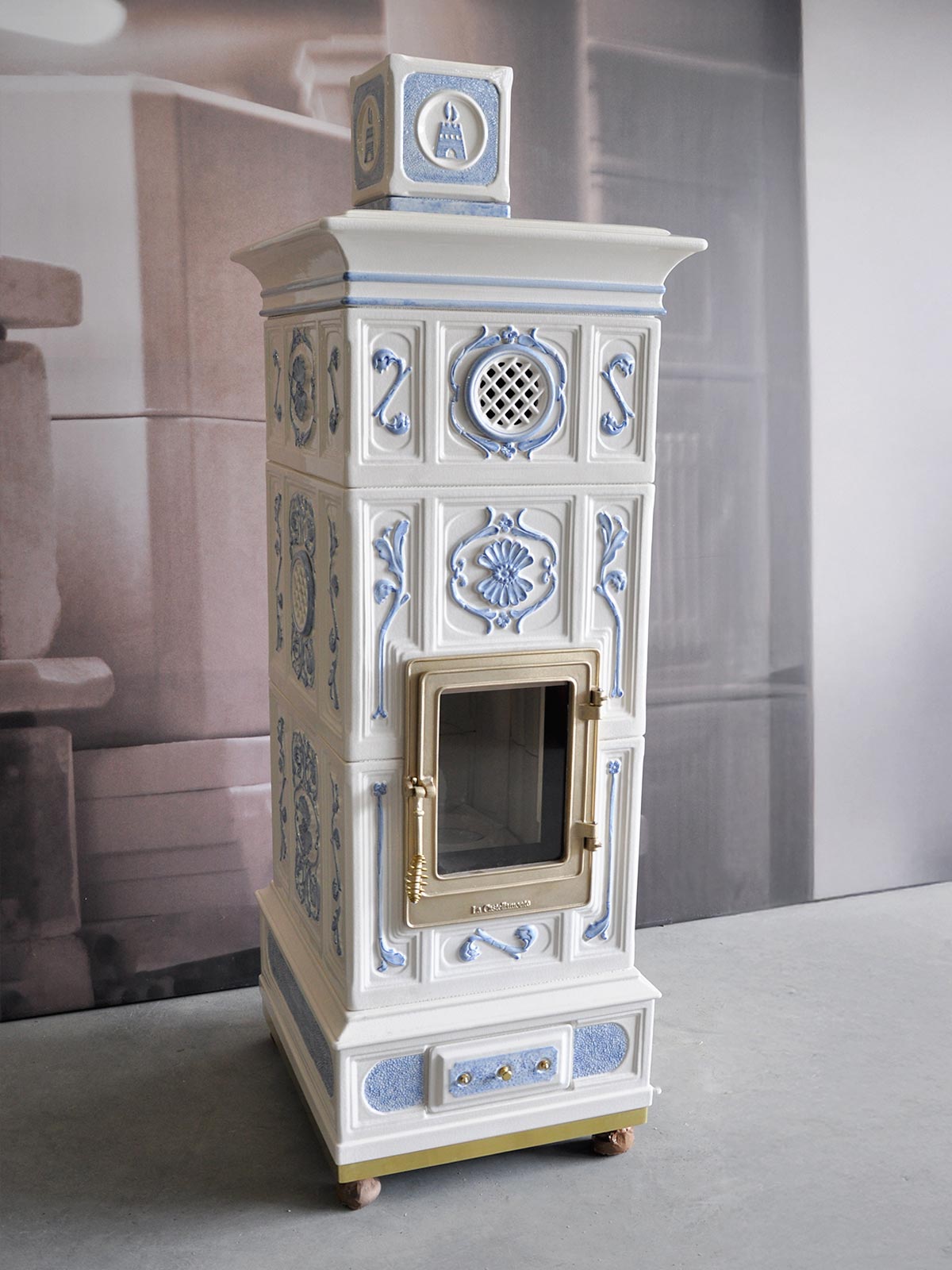

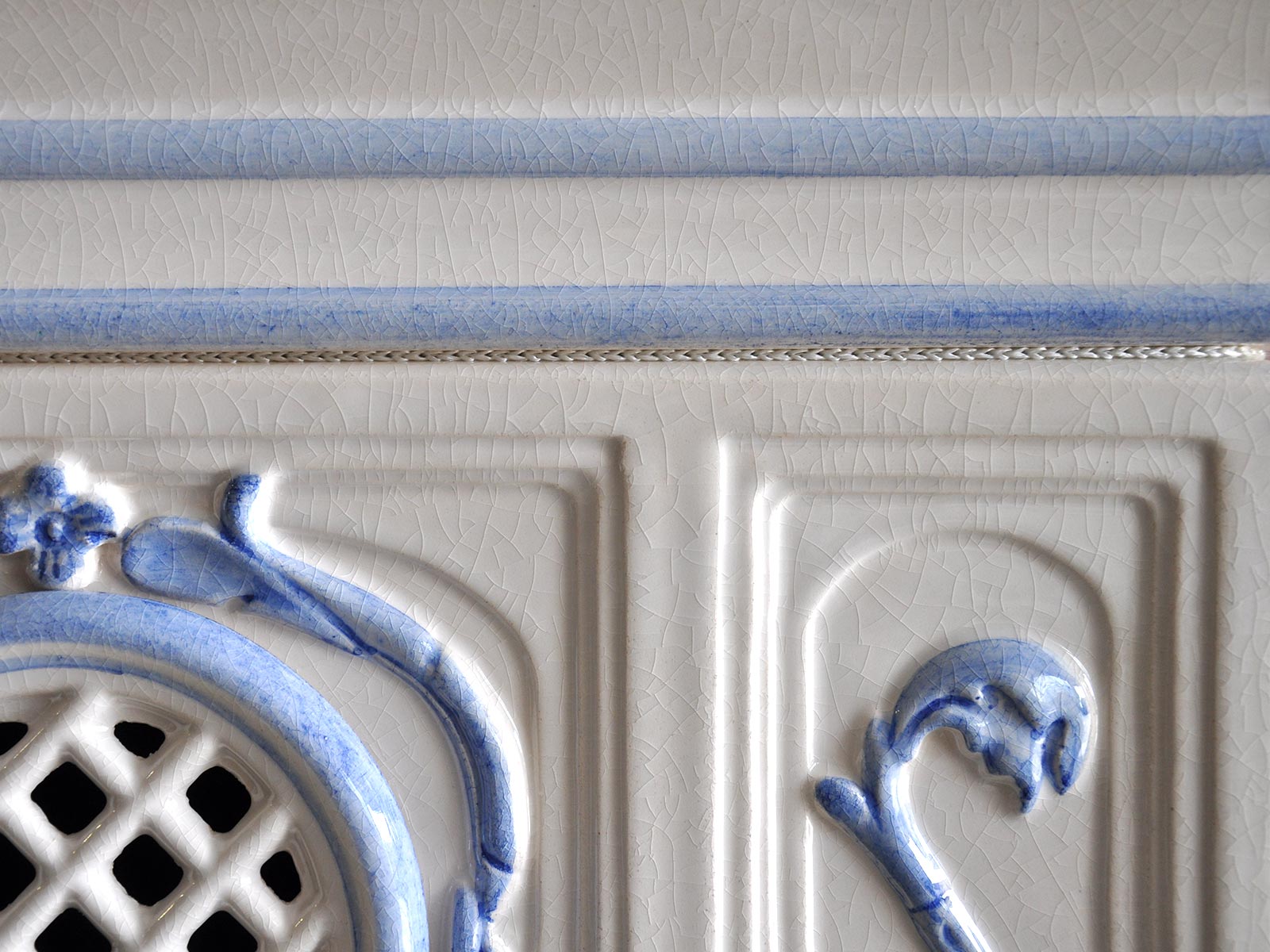

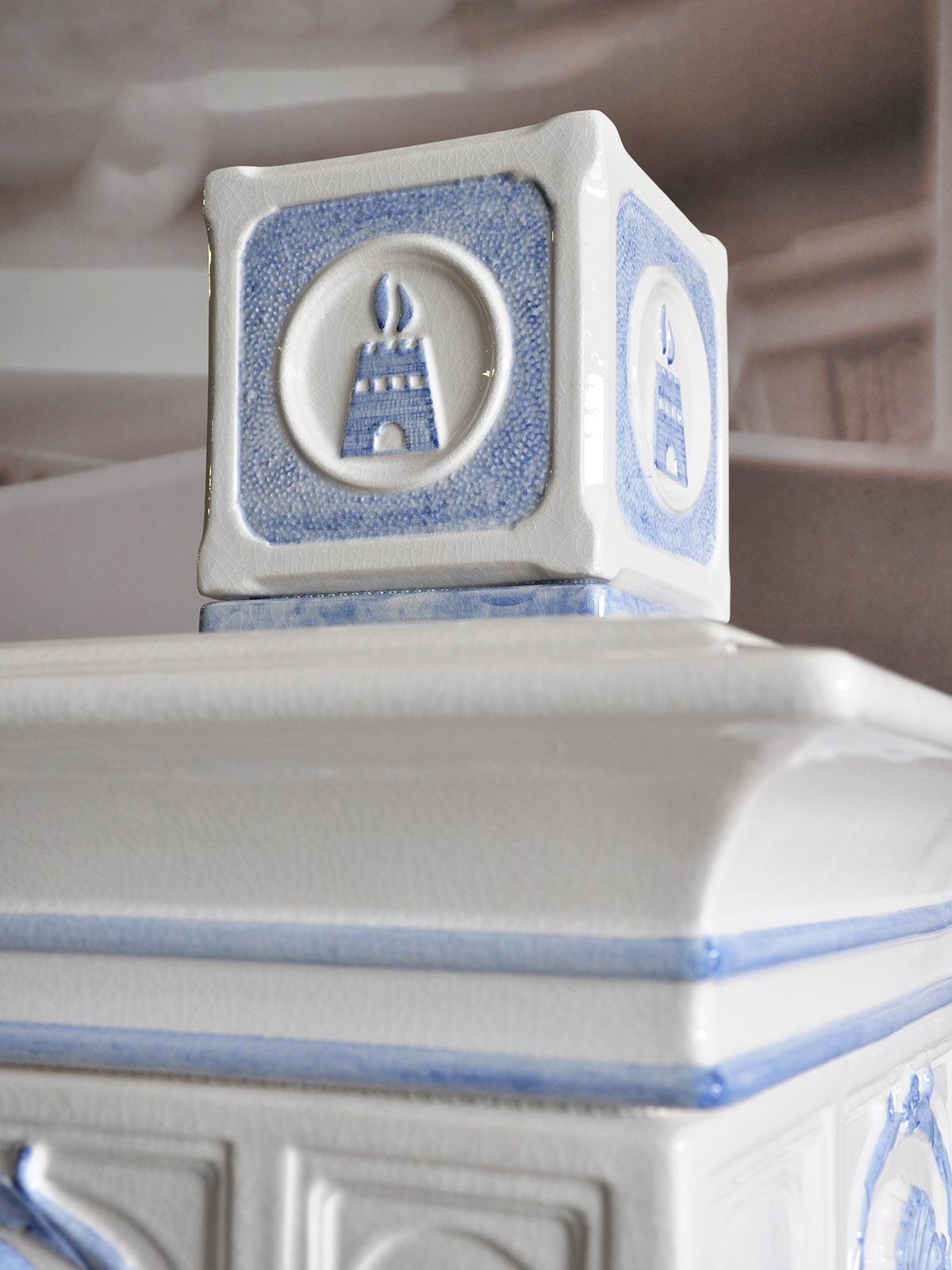

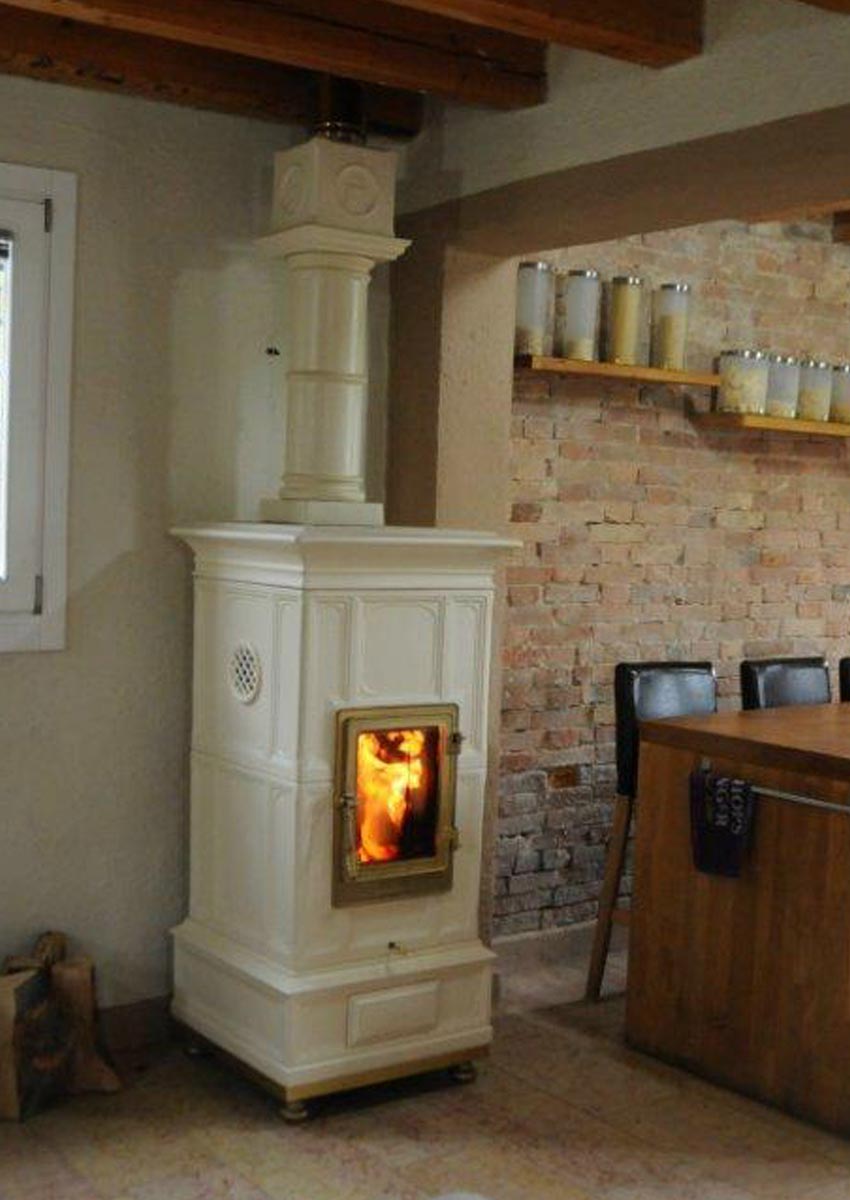

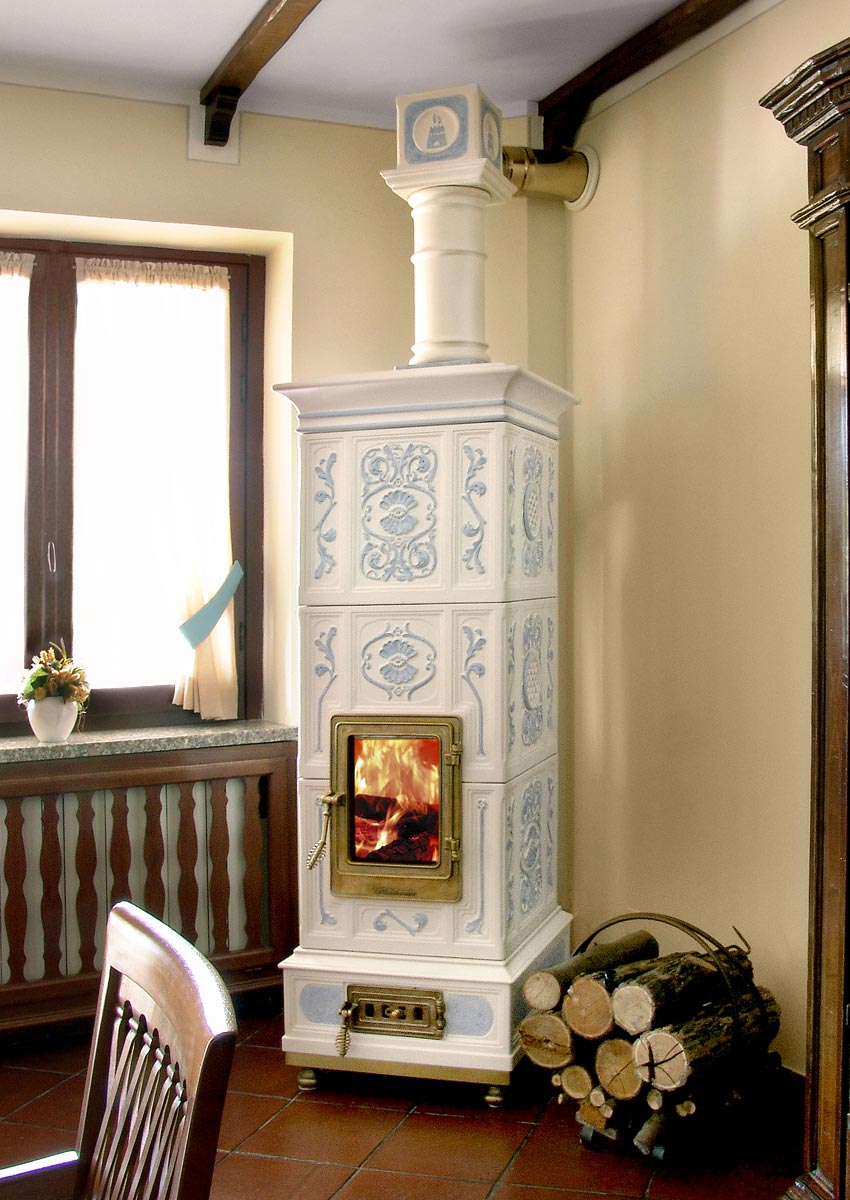

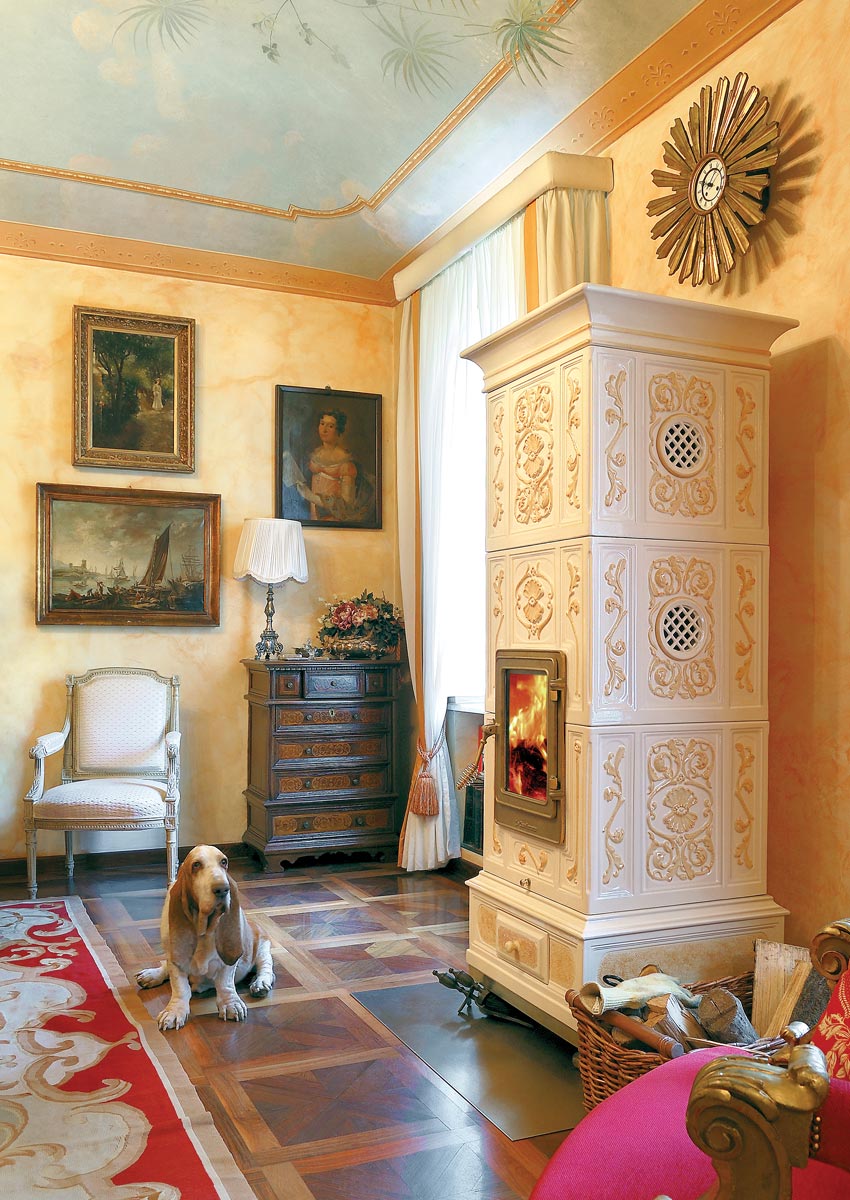

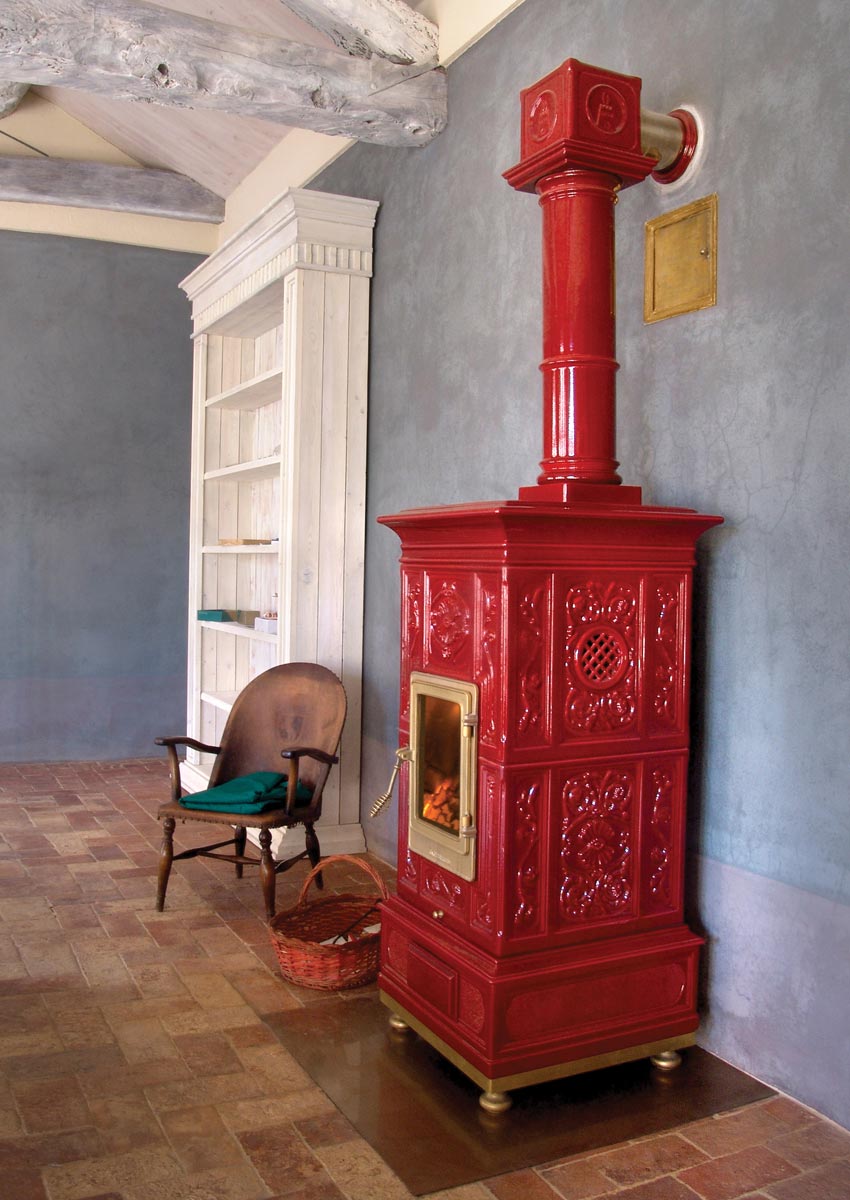

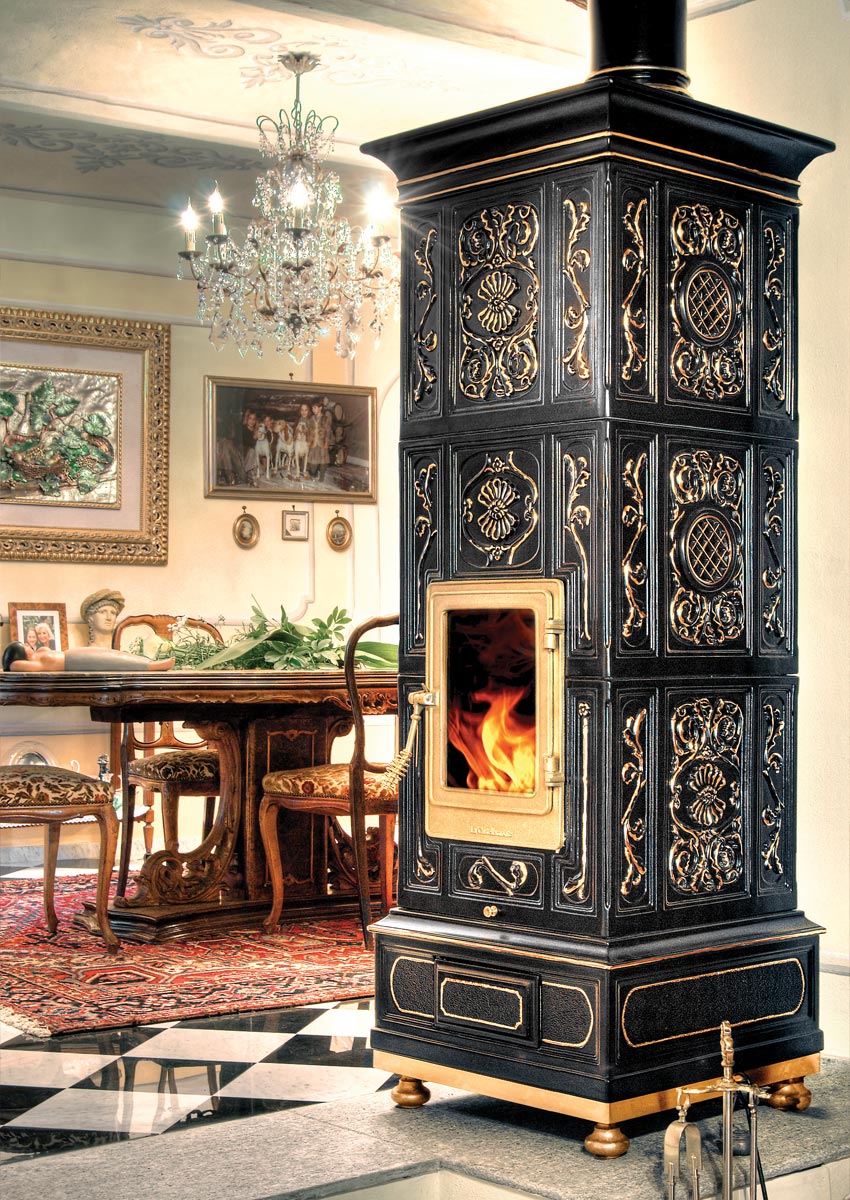

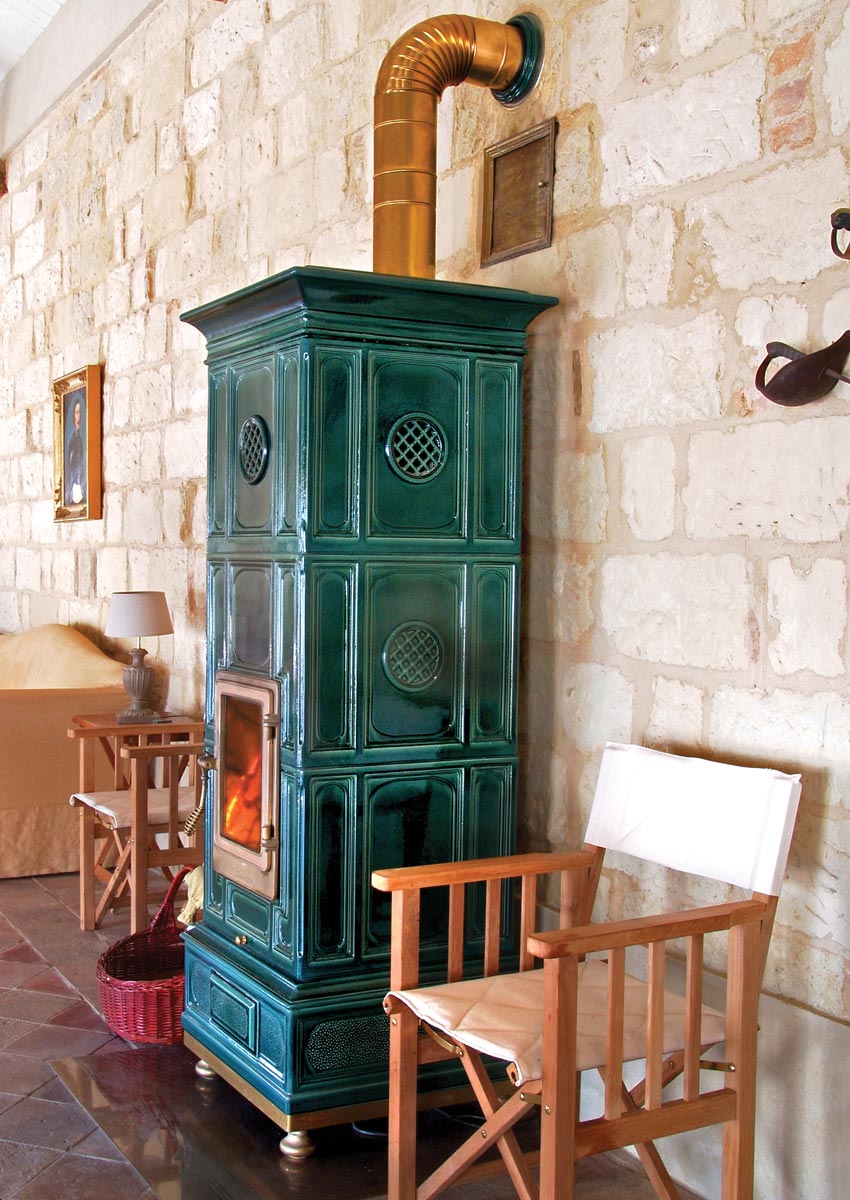

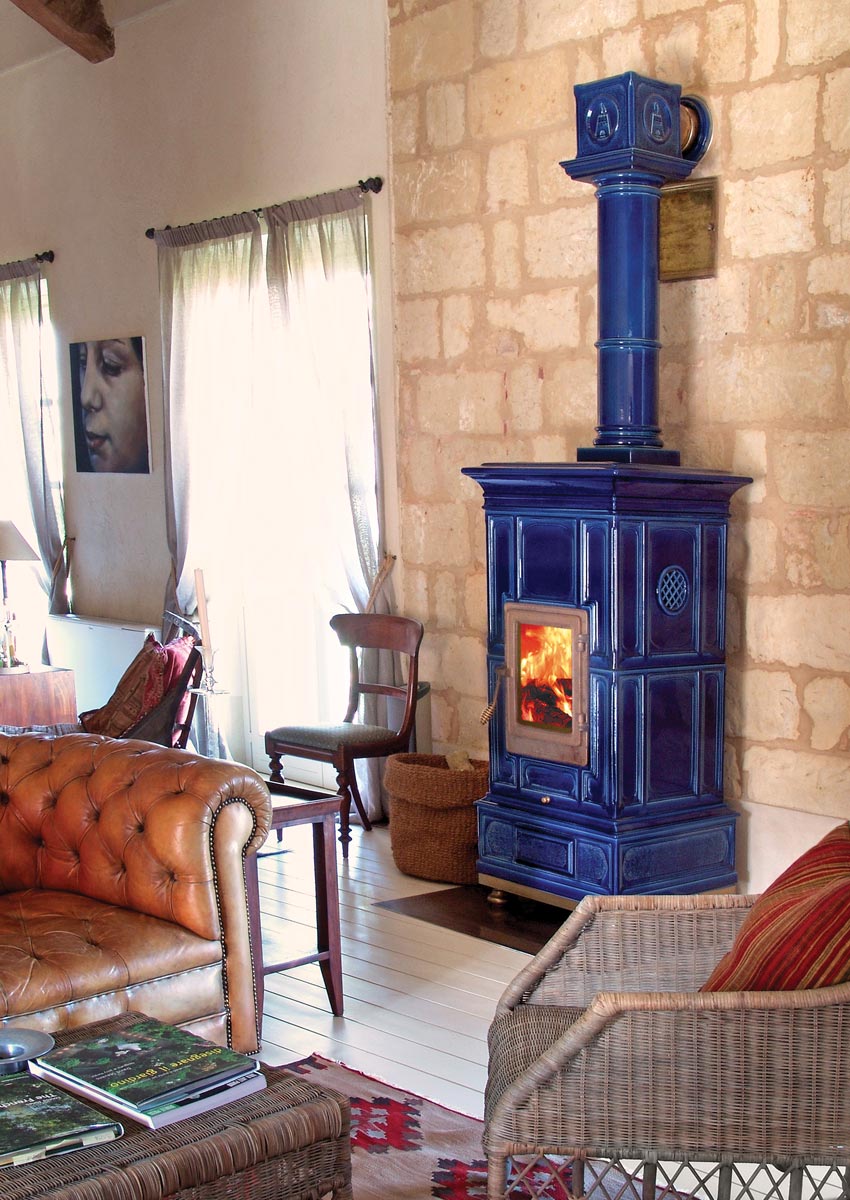

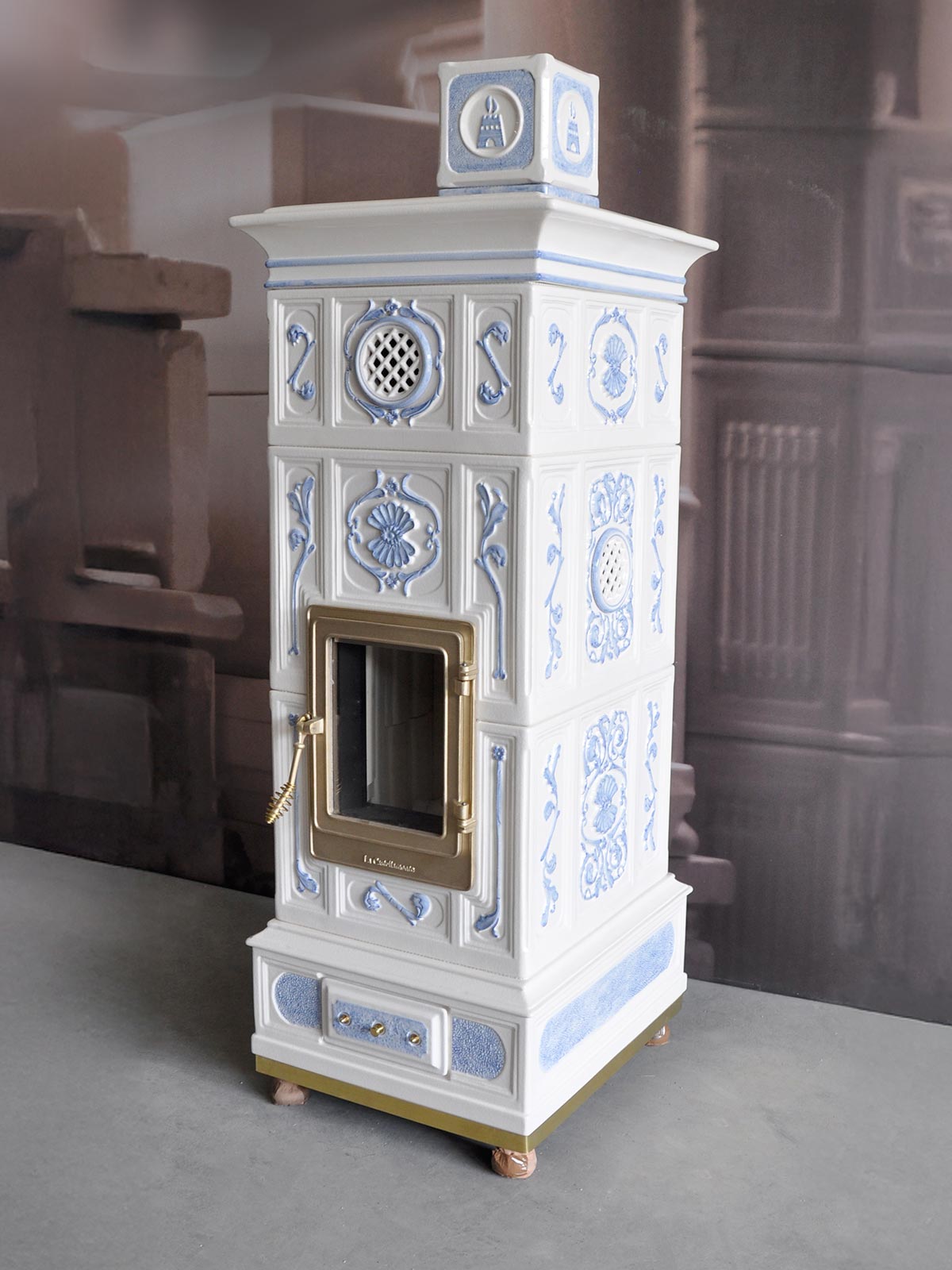

Photogallery
