Voluta

Wood Combustion

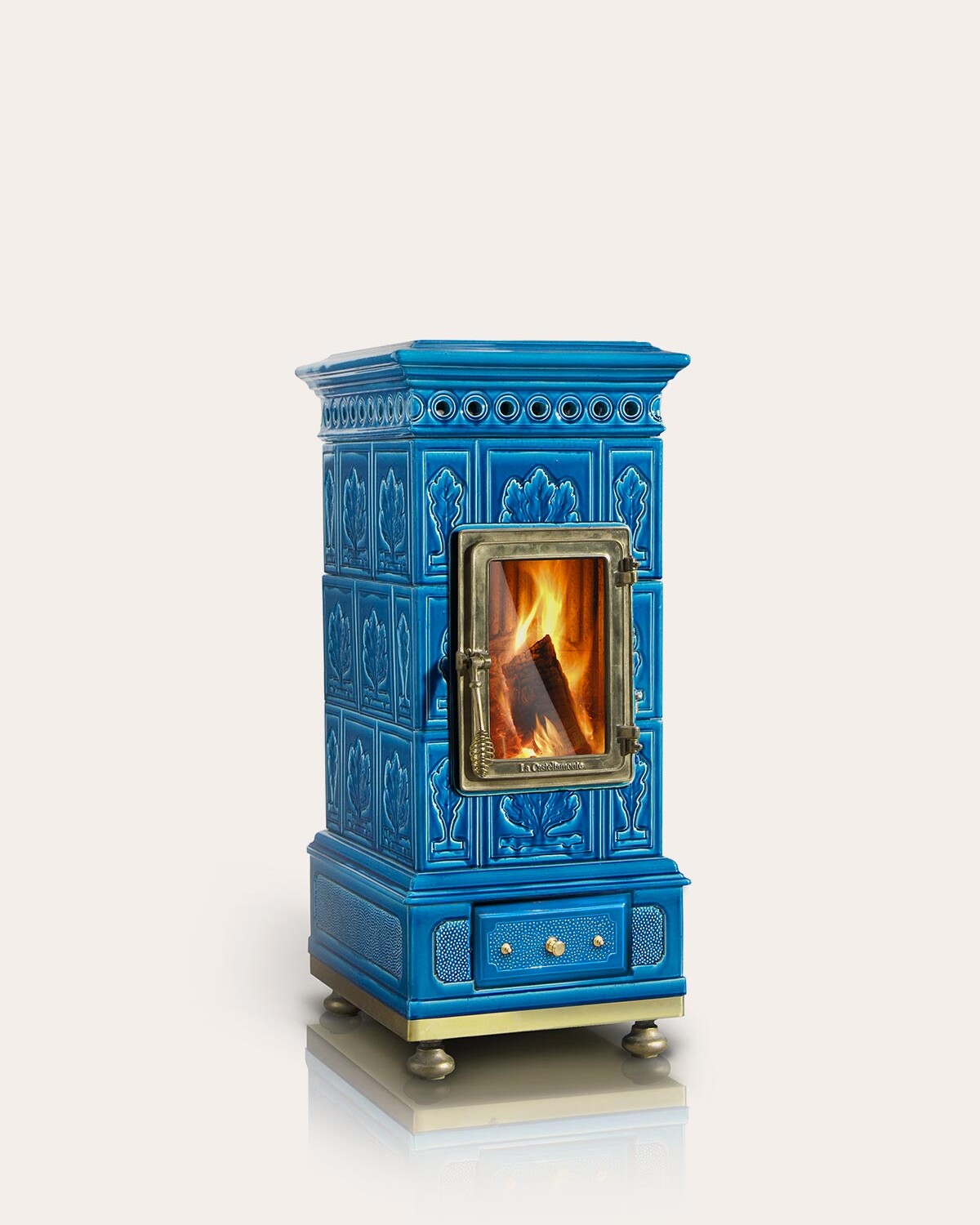

Voluta is a very classic, rectangular stove, which can be inserted in any room. Equal to the Amabile and Liberty stove, but with a hand-decorated tile. It is inspired by periods of great decorative impact, such as Liberty or Deco. The second, third and fourth size can be equipped with a Great Fire door and fireplace, for greater output and autonomy.

To know the certifications of this stove click HERE →

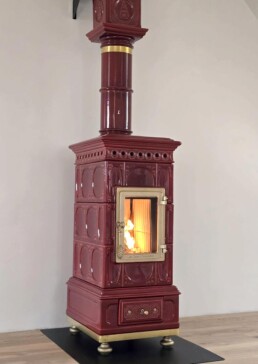

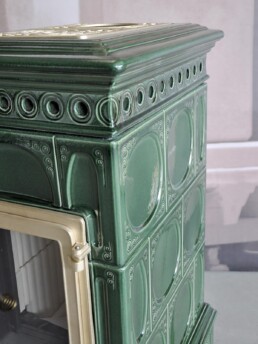

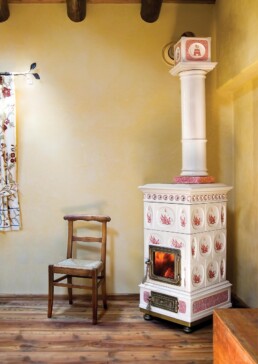

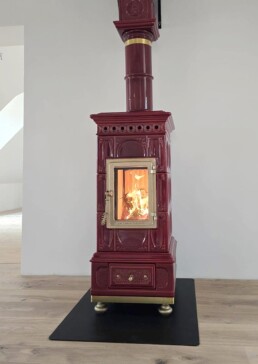

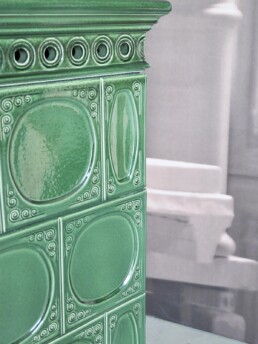

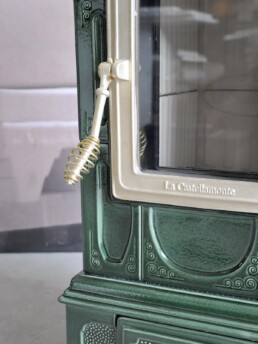

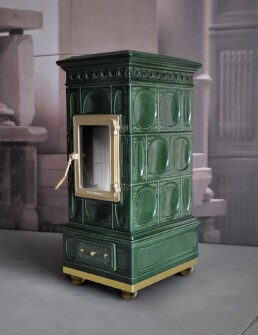

Photogallery

Sizes

Technical Data

Size
Nominal heat output *kW77,5910,5
Min. and max heat outputkW3 - 84 - 94 -105 - 12
Heatable volume (Isol. Legge 10/91) **m385 - 230100 - 260100 - 280 140 - 340
Efficiency%78817982
Carbon monoxide emissions % CO 13% O2%0,070,10,090,17
Polveri 13% O2mg/Nm3-24--
Wood consumptionKg/h2,162,22,73
Smoke temperature°C274204224196
Smoke exit diametercm15151515
DraftsPa11111111
Total weightKg260300330360
Dimensions ( W x D x H )cm51 x 60 x 9551 x 60 x 12051 x 60 x 14351 x 60 x 166

* Complies with EN 13240 | DEUTSCHLAND BimSchV 2

** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.

Standard Door Measurements
Door: 22 x 22 cm
Fireplace: 27 x 35 x 34 cm

Great Fire Door Measurements
Door: 22 x 33 cm
Fireplace: 27 x 35 x 45 cm

Wood length
30-35 cm

For a proper installation of our stoves, please observe the following: The internal diameter of the chimney flue, which must always be well insulated, ranges from 16 to 20 cm, depending on the model chosen. The minimum height of the chimney flue is 2.5 m. An outdoor air intake of at least 100 cm2 is required in the room where the stove is installed. It is possible to have the external air intake connected directly to the stove, on almost all our models.
