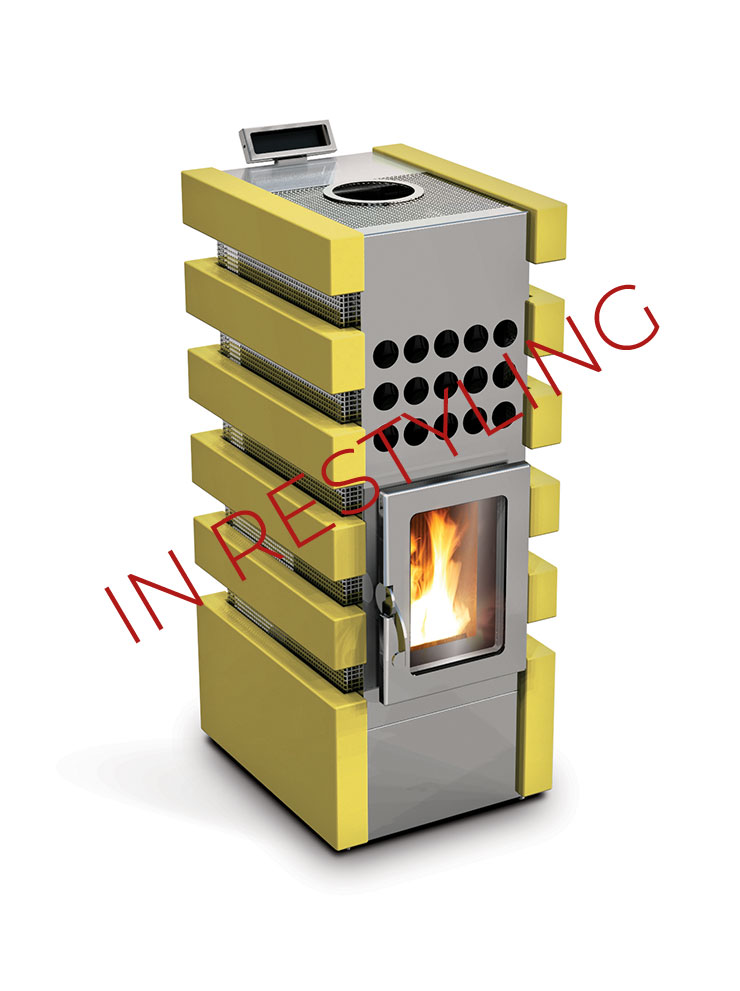

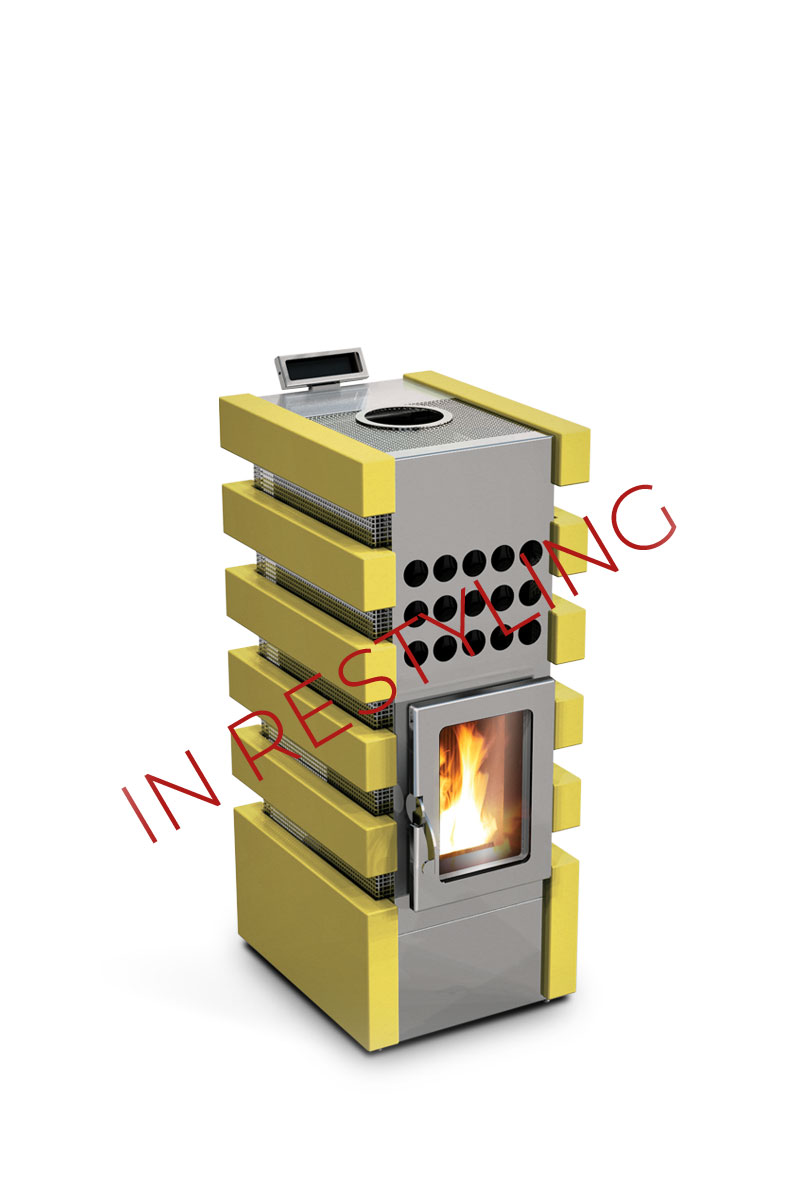

Dinamica Pellet

Pellet Combustion

Technical Data

Size
Max and Min Heat OutputkW4,1 - 8,5
Heating Capacity (Isol. Legge 10/91) **m3230
Efficiency%88,5 - 86,5
Carbon Monoxide Emission % CO 13% O2%0,028 - 0,034
Pellet Consumption Kg/h0,93 - 1,70
Tank CapacityKg20
Operating AutonomyhUp to 22
Smoke Temperature°C155 - 230
Flue Pipe Diametercm10
DraftPa0
Total WeightKg181
Measurements ( W x D x H )cm46 x 57 x 115

* Complies with EN 13240 | DEUTSCHLAND BimSchV 2

** The data of the heatable volumes are indicative, as they may vary depending on the following factors: outdoor temperature, altitude, building exposure, thermal insulation of walls and roofs, sealing condition of the windows, presence or not of double glass, using the stove as a main or additional heating.
